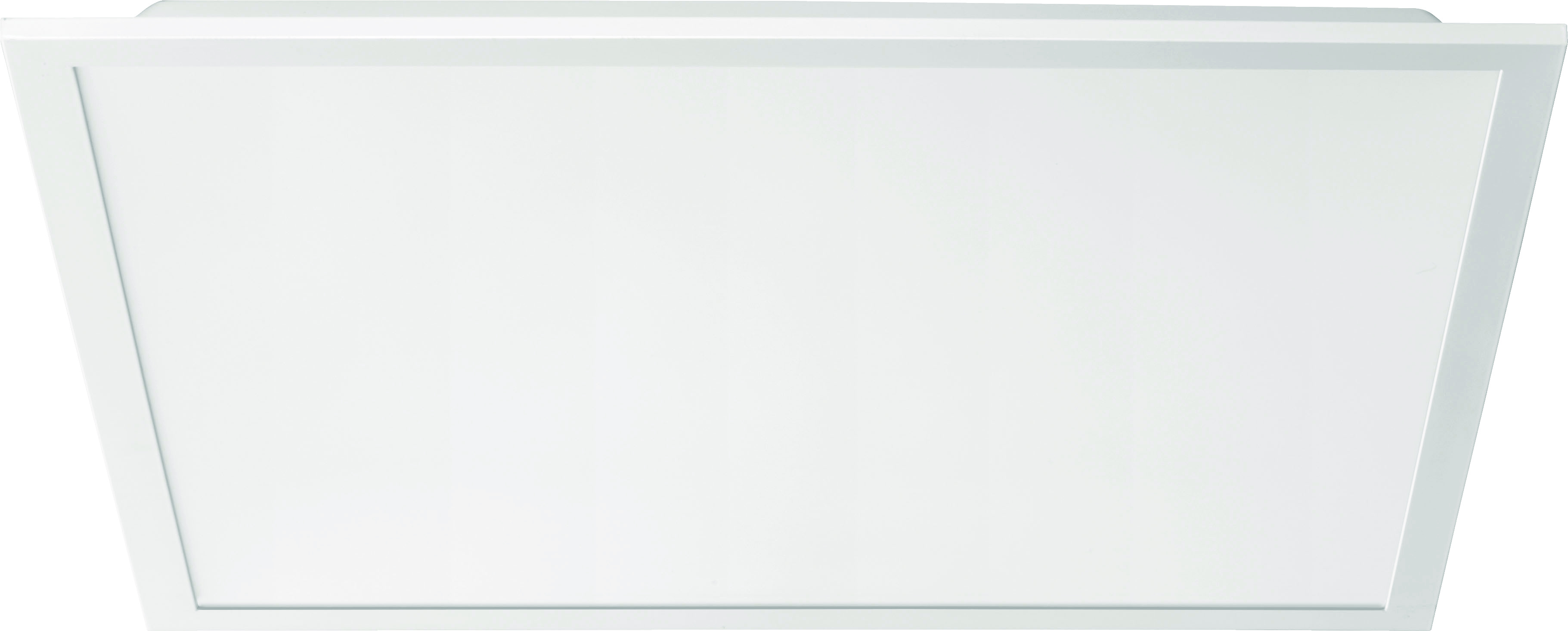

LED FLAT PANEL, 2FT X 2FT, NOMINAL 3200

Manufacturer: Lithonia Lighting | Catalog # CPX 2X2 3200LM 40K M4 | Electrozad South Part # 328033
$54.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Education,Government,Hospitality,House Of Worship,Offices & Banks,Residential,Retail
Average Rated Life
60,000 hr
Color Rendering Index
80 CRI
Color Temperature
4000 K
Dimmable?
Yes
Lamp Life
50,000 hr
Lamp Type
LED - Static
Lens Color
White
Lumens
3200 lm
Material
Steel
Mounting Type
Recessed,Surface,Suspended
Power Source
Hardwired
Style
Traditional
Type
Flat Panel
Voltage
120 V

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848338650
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
Fixture Type
Flat Panel
GTIN
00191848338650
Product UPC
19184833865
Shape
Square
Weight
6.39 lb

Dimensions

Height
1.68 in
Length
23.82 in
Width
23.82 in

Certifications & Compliance

Country of Origin
Vietnam,Vietnam
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: Standard MVOLT for 120-277 volts
  • INSTALLATION: can be recessed, suspended or surface box mounted with additional kit
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • DESIGN: CPX's low-profile design with steel backplate provides installation flexibility especially in restricted ceiling space
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 50,000 hours (L70>50,000)
  • BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately
  • DIMENSIONS: (l x w x h) 23.8 in. x 23.8 in. x 1.7 in.
  • RATINGS: Certified for damp locations, CSA certified, IC rated, DLC Standard
