UNIVERSAL POWER SUPPLY, PHASEO, 1 OR 2 PHASE, 100 TO 500 V, 24 V, 10 A

Manufacturer: Schneider Electric | Catalog # ABL8RPS24100 | Electrozad South Part # 327444
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

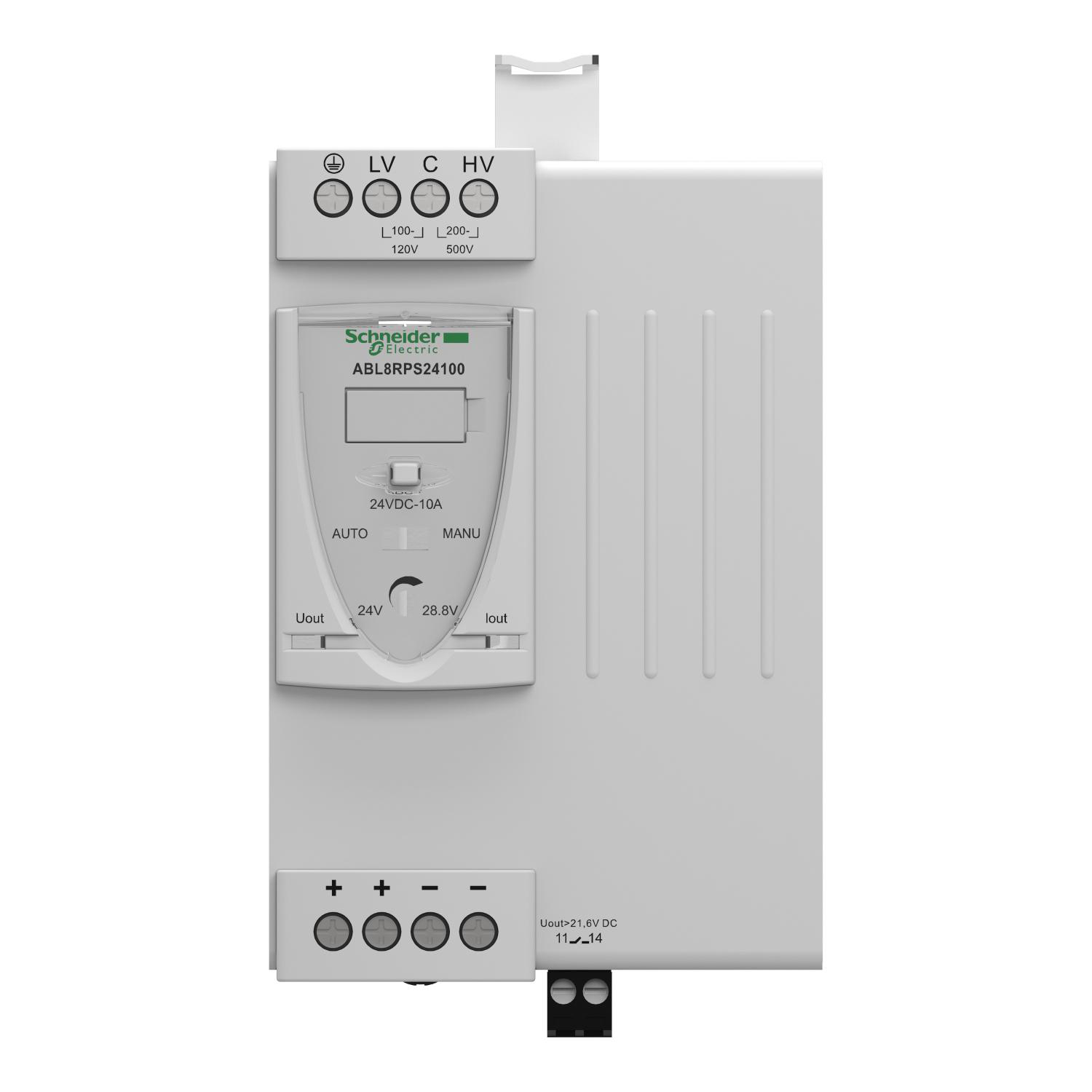

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Technical Information

Applications
ABL8R
Dielectric Strength
3500 V
Efficiency
87 %
Input Voltage
...120 V
Max Output Current
10 A
Net Weight
1 kg
Operating Temperature
50-60 degrees C With Derating Factor) || -25-50 degrees C Without)
Output Voltage
24 V
Rated Power
240 W
Standard
CSA C22.2 No 60950-1,EN/IEC 62368-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
#8 TO #22 AWG
Type
Regulated switch mode;Power supply
Voltage
120 V
Wattage
31 Watt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
PHASEO

General Product Info

12-Digit UPC
338911940567
GTIN
03389119405621
Weight
2.20 lb

Dimensions

Depth
5.71 in
Height
4.92 in
Length
5.71 in
Warranty Length
18 mth
Width
3.39 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCSAus,EAC,KC,RCM,UL
Country of Origin
Philippines
