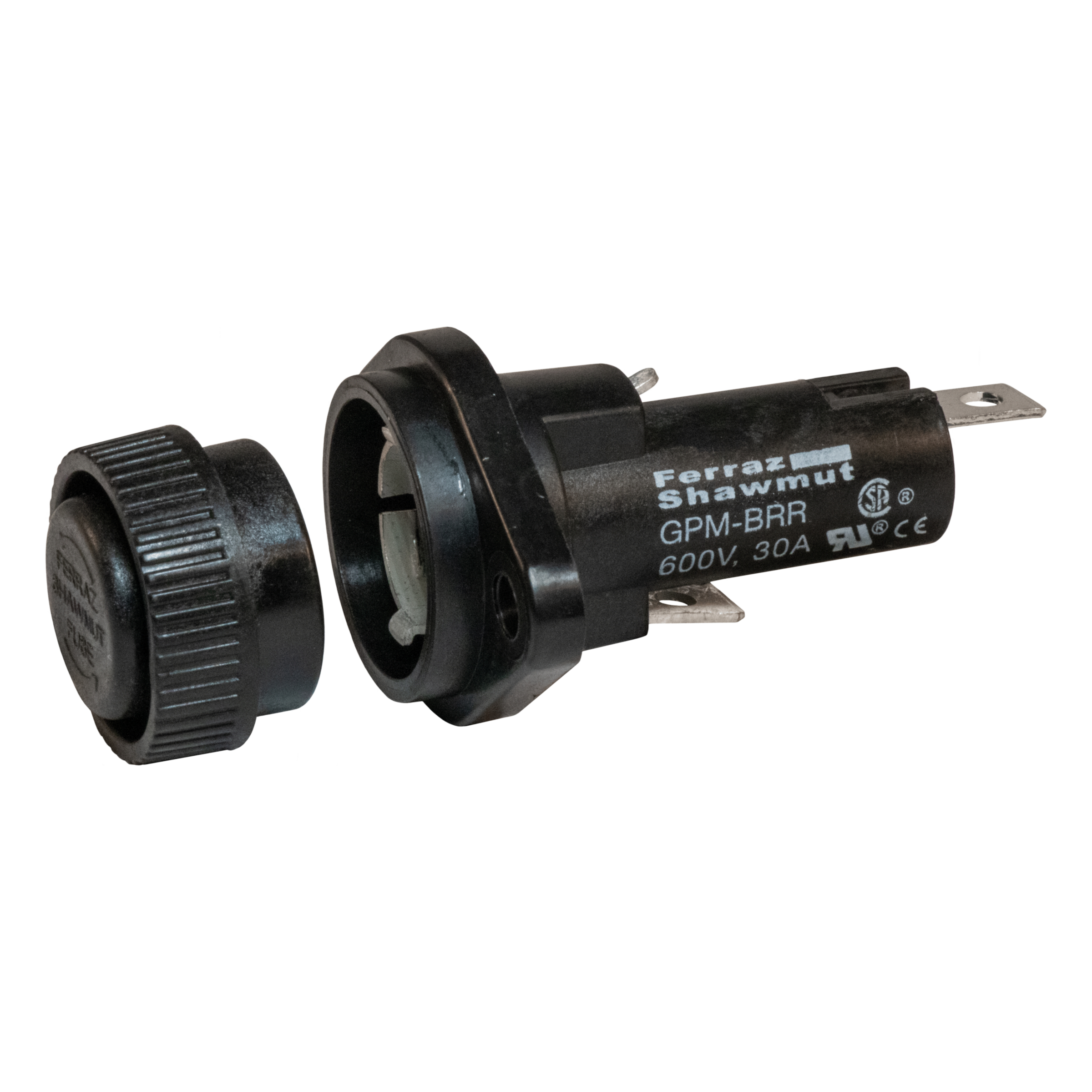

Product image for Fuse Bases 600V 30A 1-pole -BRR 1/4" Quick Connect / Solder
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Fuse Bases 600V 30A 1-pole -BRR 1/4" Quick Connect / Solder

Manufacturer: Ferraz Shawmut Mersen | Catalog # GPM-BRR | Electrozad South Part # 32139
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen GPM Panel Mount Fuse Holders are in sizes to acco mmodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.

Technical Information

Amperage
30 A
Frequency
50/60 Hz
Fuse Class
Class CC
Fuse Interrupt Rating
30 A
Fuse Type
Class CC
Insulation Material
Thermoplastic
Max Operating Temperature
80 degrees C
Mounting Type
Panel Mount
Number of Poles
1
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
1/4" Quick Connect / Solder
Type
Panel Mount
Voltage
600 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001674328
Class
CC
GTIN
00782001674328
Product UPC
78200167432
Weight
0.065 lb

Dimensions

Height
1.13 in
Length
2.42 in
Width
1.13 in

Certifications & Compliance

Country of Origin
Mexico
