15 Amp Decora Plus Isolated Ground Duplex Receptacle/Outlet, Hospital Grade,

Manufacturer: Leviton Manufacturing | Catalog # D8200-IGW | Electrozad South Part # 319780
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 7 to 11 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

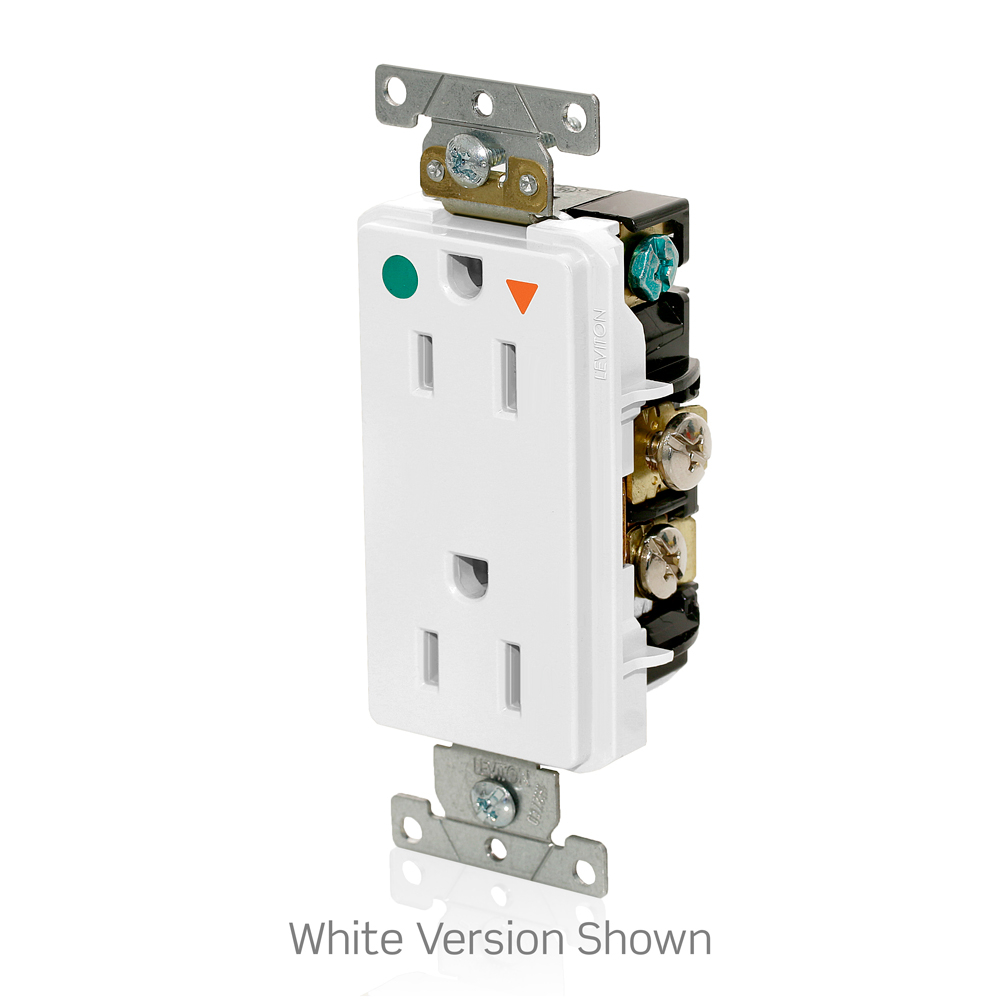

Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 A
Applications
COMMERCIAL/IND
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Hospital
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
PBT Polyester Blend
Number of Poles
2,2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
ANSI C-73,ANSI C-73,CSA C22.2. No. 42,CSA C22.2. No. 42,Fed Spec W-C-596,Fed Spec W-C-596,UL 498,UL 498
TC Connection
Back or Side Wire
Temperature Rise
200 %
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Duplex Receptacle
Wire Count
3,3
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477675267
Color
White,White
GTIN
00078477675267
Product UPC
07847767526

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
