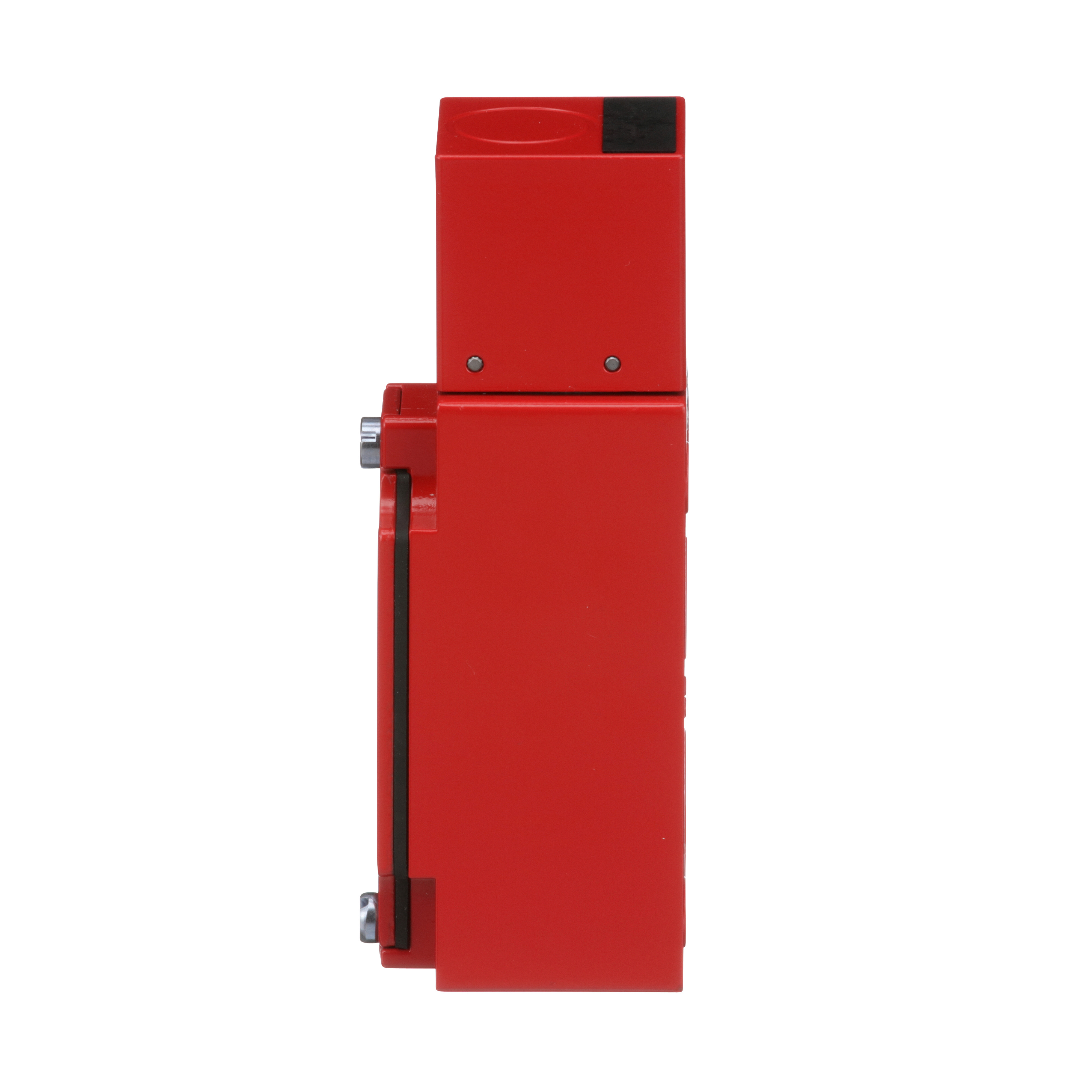

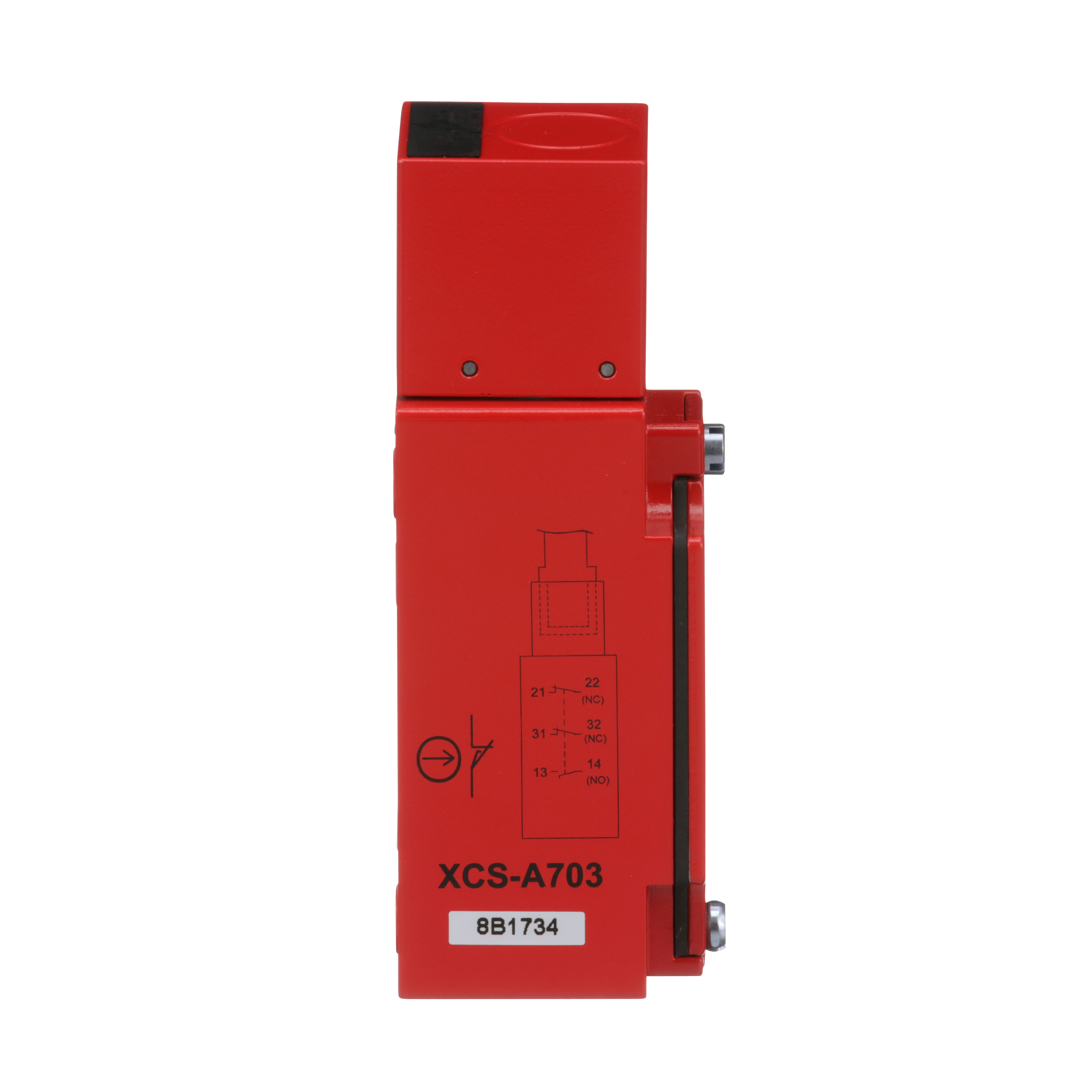

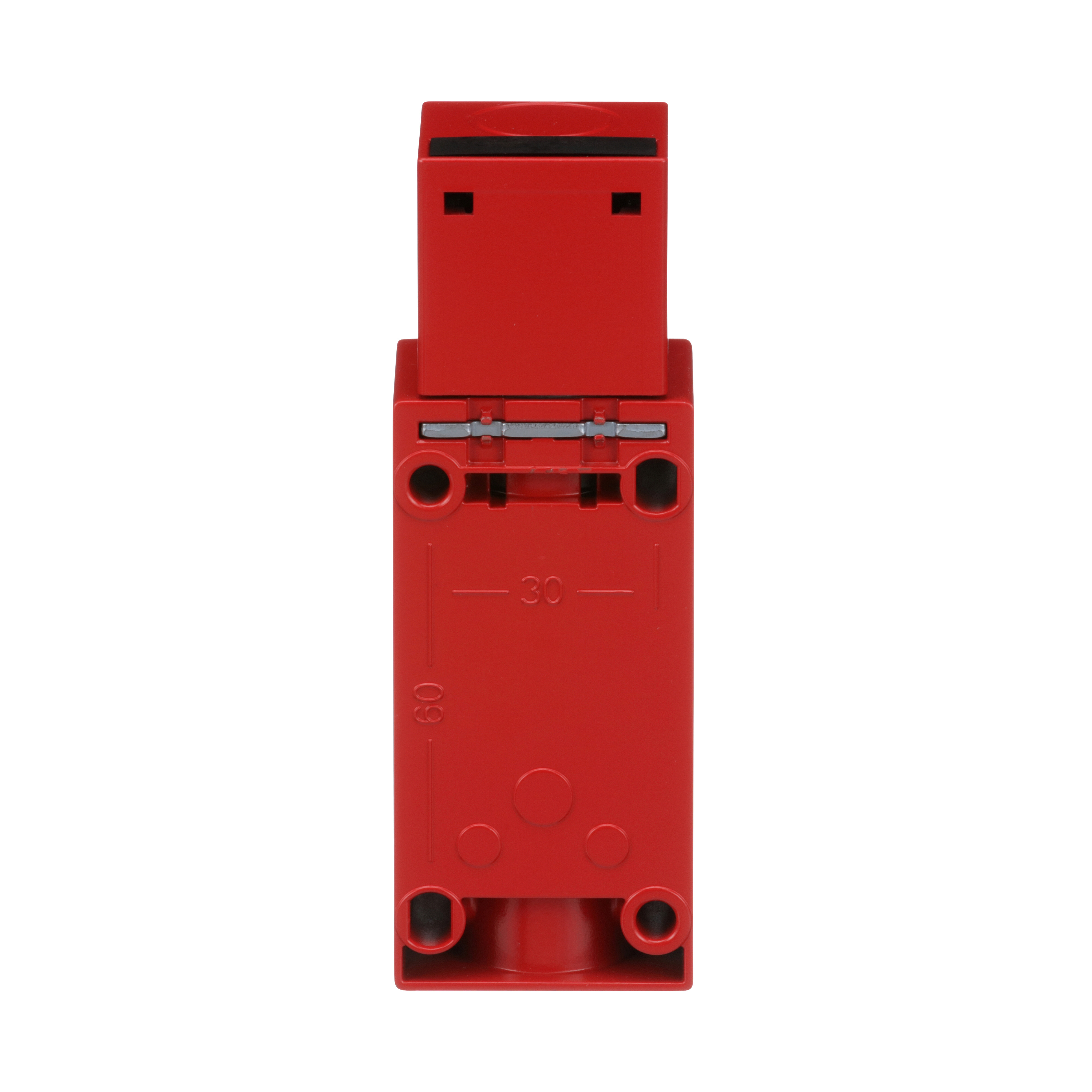

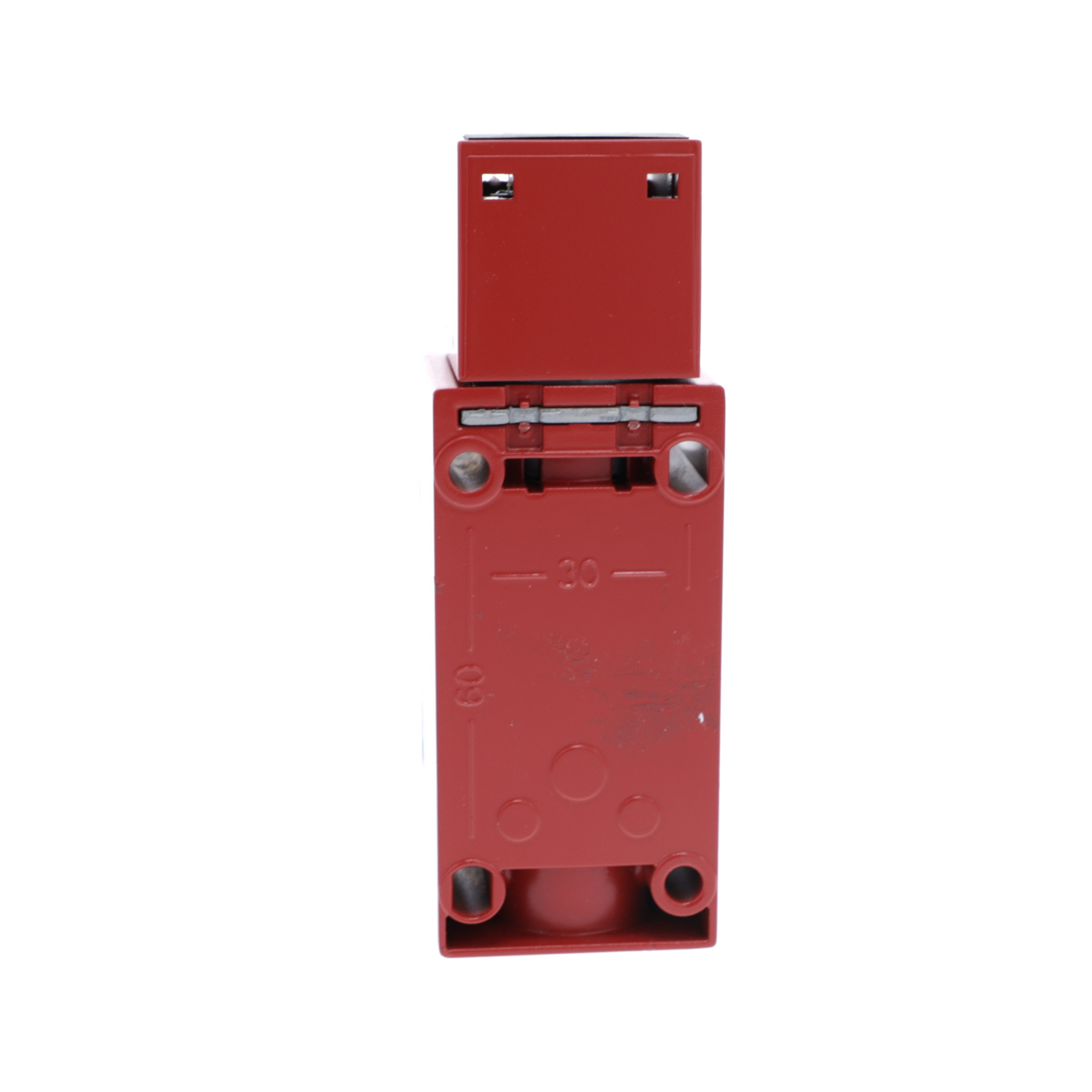

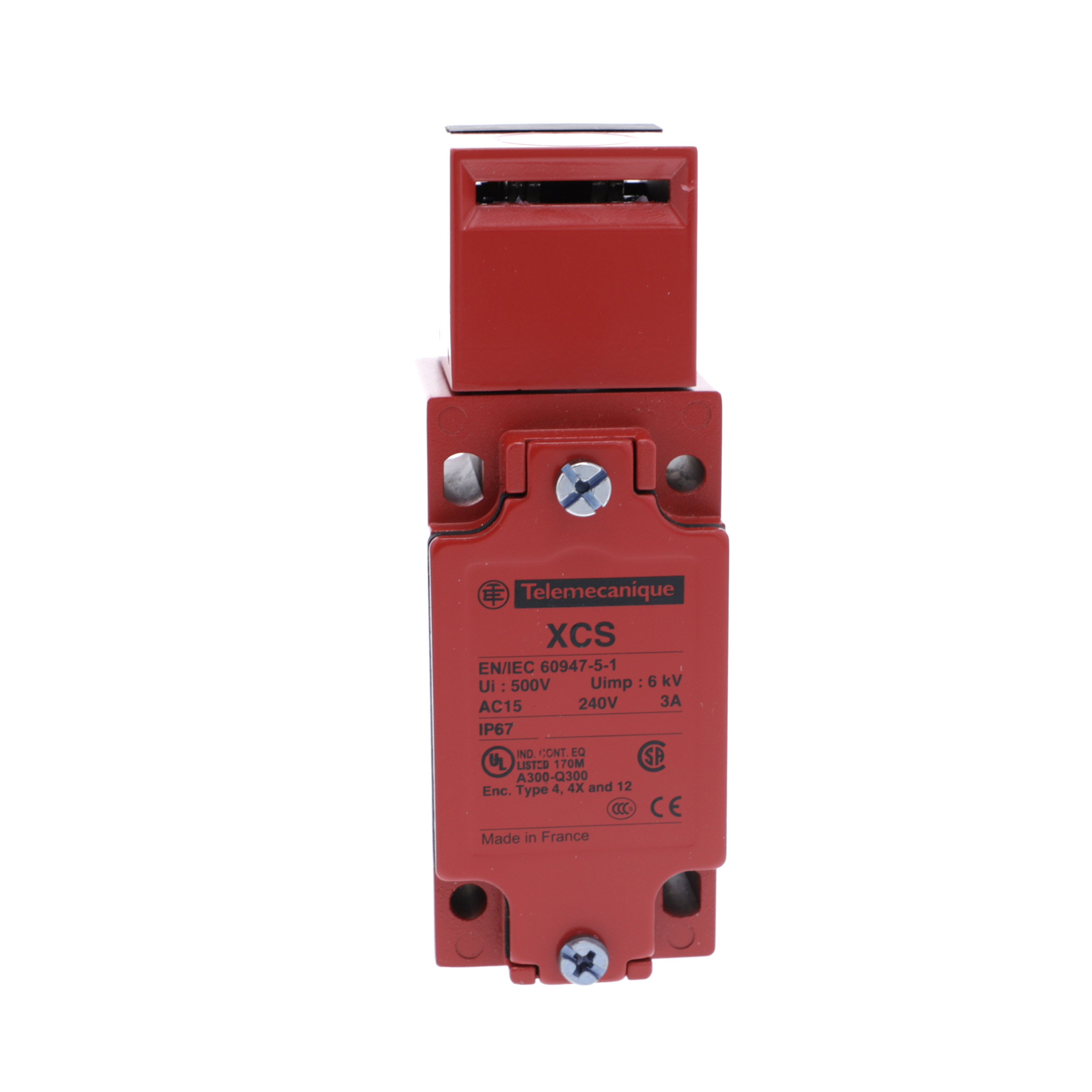

Product image for PREVENTA XCS, SAFETY SWITCHES, METAL SAFETY SWITCH, 2 NC AND 1 NO, SLOW BREAK, 1 ENTRY TAPPED 0.5 INCH NPT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

PREVENTA XCS, SAFETY SWITCHES, METAL SAFETY SWITCH, 2 NC AND 1 NO, SLOW BREAK, 1 ENTRY TAPPED 0.5 INCH NPT

Manufacturer: Telemecanique Controls | Catalog # XCSA703 | Electrozad South Part # 319333
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Preventa safety switches are for controlling the safe opening and interlocking of guards and covers to installations. Protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch. Preventa switches with metal housings are designed for heavy duty industrial machines with quick rundown time (key operated switches XCSA, XCSB, XCSC) or with slow rundown time (Key operated switches with solenoid XCSLF, XCSE). Preventa switches with plastic housings are designed for light industrial machines with quick rundown time (key operated switches XCSMP, XCSPA, XCSTA) or with slow rundown time (key operated switches with solenoid XCSLE, XCSTE). As far as safety is concerned all dangerous machines in all sectors are involved. Preventa safety switches can be used in packaging, handling, robotics, machine tools, presses, and automotive sectors. It secures the machine and system operation with a key, only available to authorized operators.

Technical Information

Action
SLOW-BREAK, BREAK BEFORE MAKE
Actuator
KEY
Applications
KEY OPERATED TURRET HEAD
Body Material
Zamak
Cable Entry
1 entry tapped 1/2" NPT
Contact Configuration
2 NC + 1 NO
Enclosure
NEMA 4/4X/12 - IP67
Head Type
Key operated turret head
Material
Metal
Net Weight
0.44 kg
Number of Poles
3
Operating Cycles
10 cyc/mn For Maximum Durability
Operating Temperature
-25-70 Adegrees C
Size
114-114 MM,40 MM,44 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL 1 X 0.5...2 X 1.5 MMA² WITH OR WITHOUT CABLE END
Type
KEY OPERATED TURRET HEAD,SAFETY SWITCH

Manufacturer Information

Brand
Telemecanique Sensors
Sub Brand
XCSA

General Product Info

12-Digit UPC
338911071889
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Weight
0.97 lb

Dimensions

Depth
44 mm
Height
114-114 mm
Warranty Length
18 mth
Width
40 mm

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Indonesia
