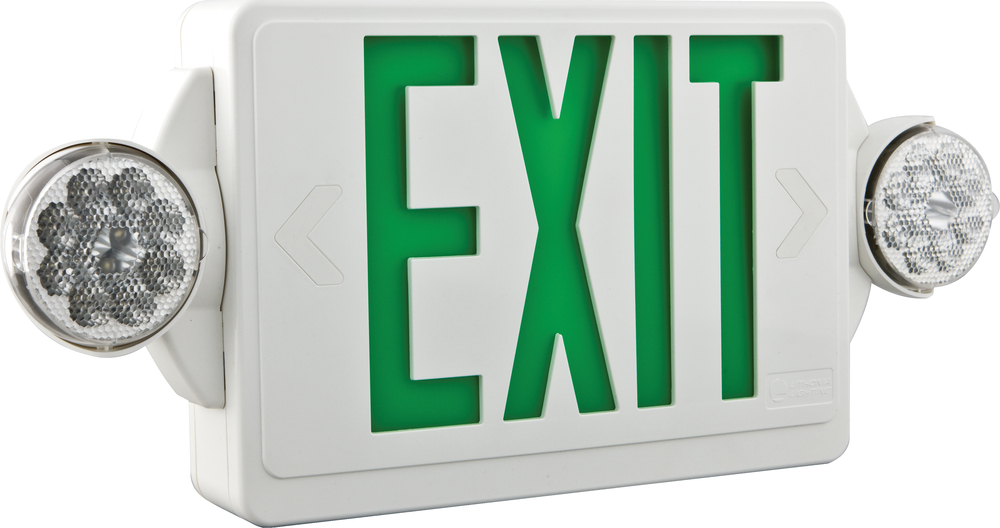

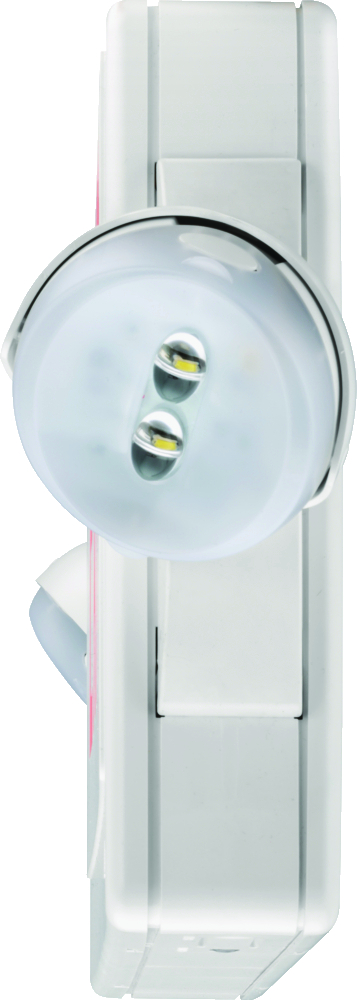

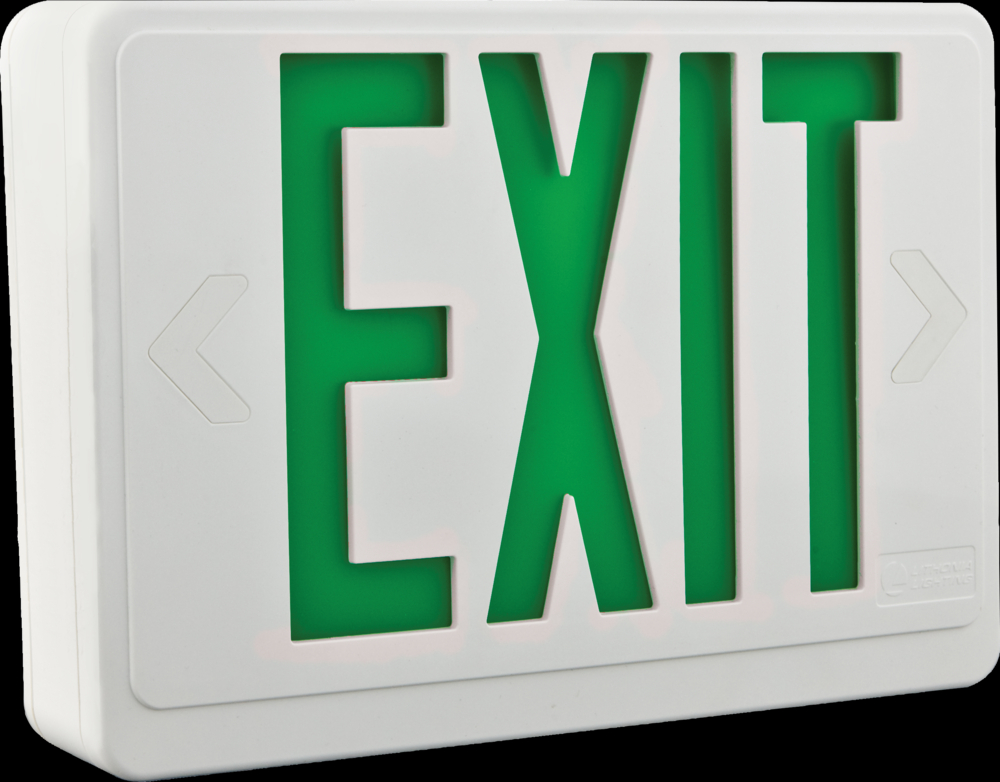

Product image for QUANTUM THERMOPLASTIC EXIT/UNIT COMBO, L
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
To:
CC:

QUANTUM THERMOPLASTIC EXIT/UNIT COMBO, L

Manufacturer: Lithonia Lighting | Catalog # LHQM LED G M6 | Electrozad South Part # 318482
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Retail,Sports And Recreation
Color Rendering Index
75 CRI
Color Temperature
4600 K
Lamp Type
LED - Static
Lamp Wattage
Not Applicable
Lens Color
Clear
Lens Material
Plastic
Lumens
160 lm
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
0
Power Source
Hardwired
Type
Emergency Exit Sign
Voltage
120 V
Wattage
3 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
745976253950
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
Fixture Type
Emergency Exit Unit (aka Combo)
GTIN
00745976253950
Housing Color
White
Letter Color
Green
Product UPC
45976253950
Shape
Square
Weight
2.9 lb

Dimensions

Height
8 in
Length
19.25 in
Warranty Length
5 yr
Width
2.25 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • VOLTAGE: Functions between 120 or 277 volts with input wattage of 4.3 watts
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosionproof, UL94V-O flame rating, UV-stable resin resists discoloration from natural and man-made light sources
  • DIMMING: Not applicable
  • APPLICATIONS: Suitable for commercial indoor applications requiring both exit sign and unit equipment. Idea for lower mounting heights and is great for above-the-door applications and other tight fits
  • INSTALLATION: Easily replaces existing emergency combination units and has top, back or end mounting capability (canopy included)
  • LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
  • BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • DIMENSIONS: Length: 19.25 in. x Height 8.0 in.
  • RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F listed
