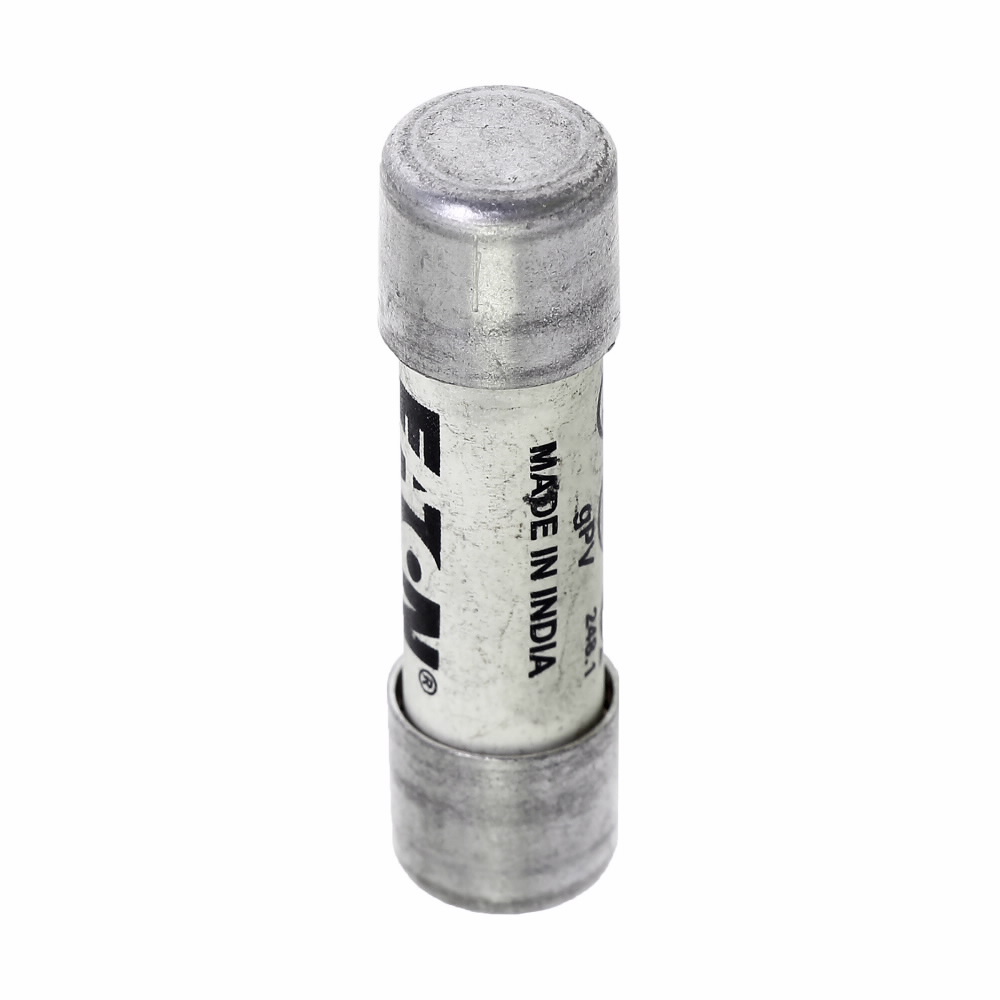

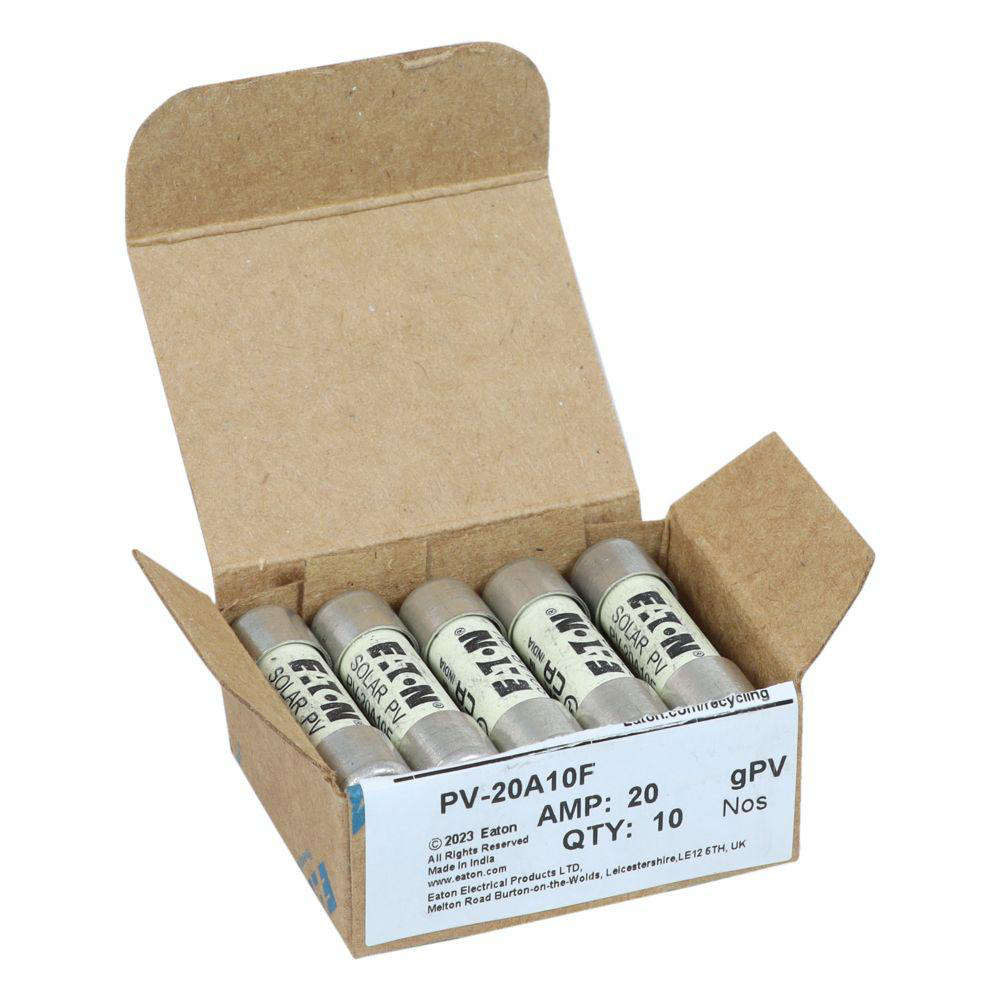

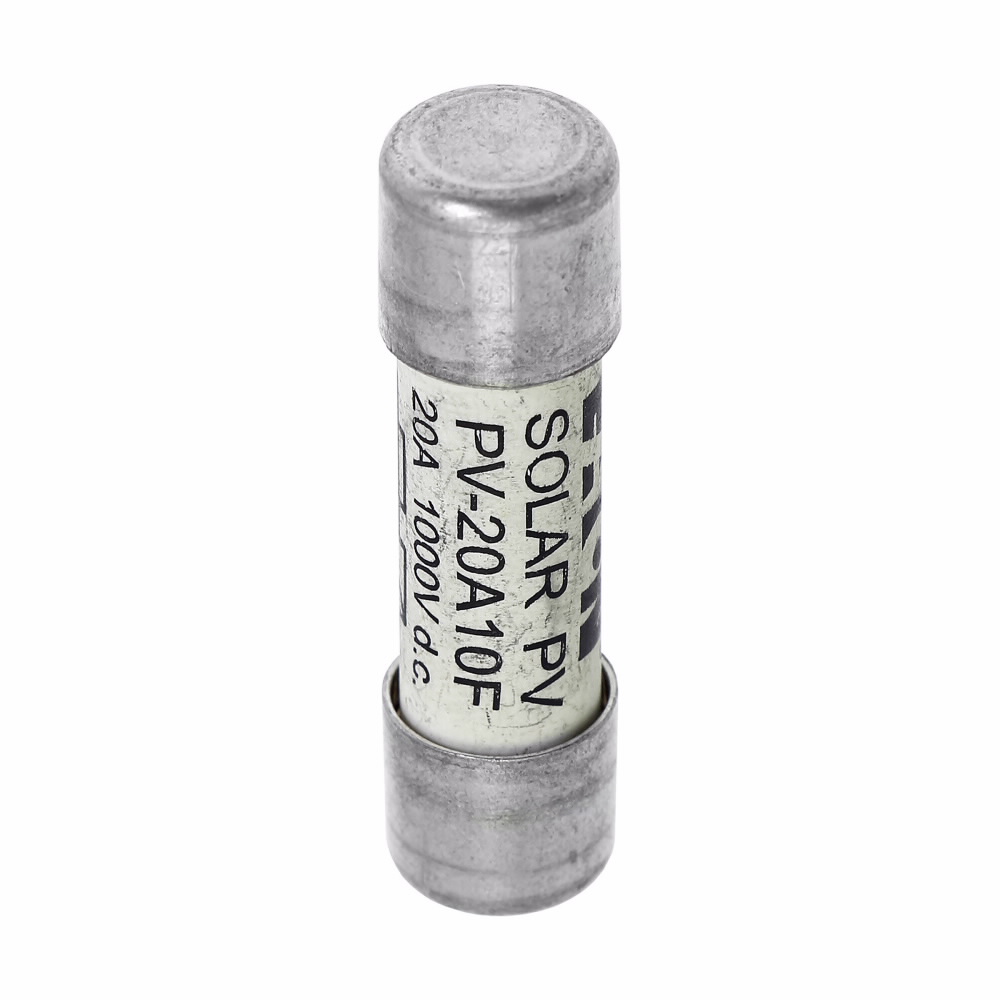

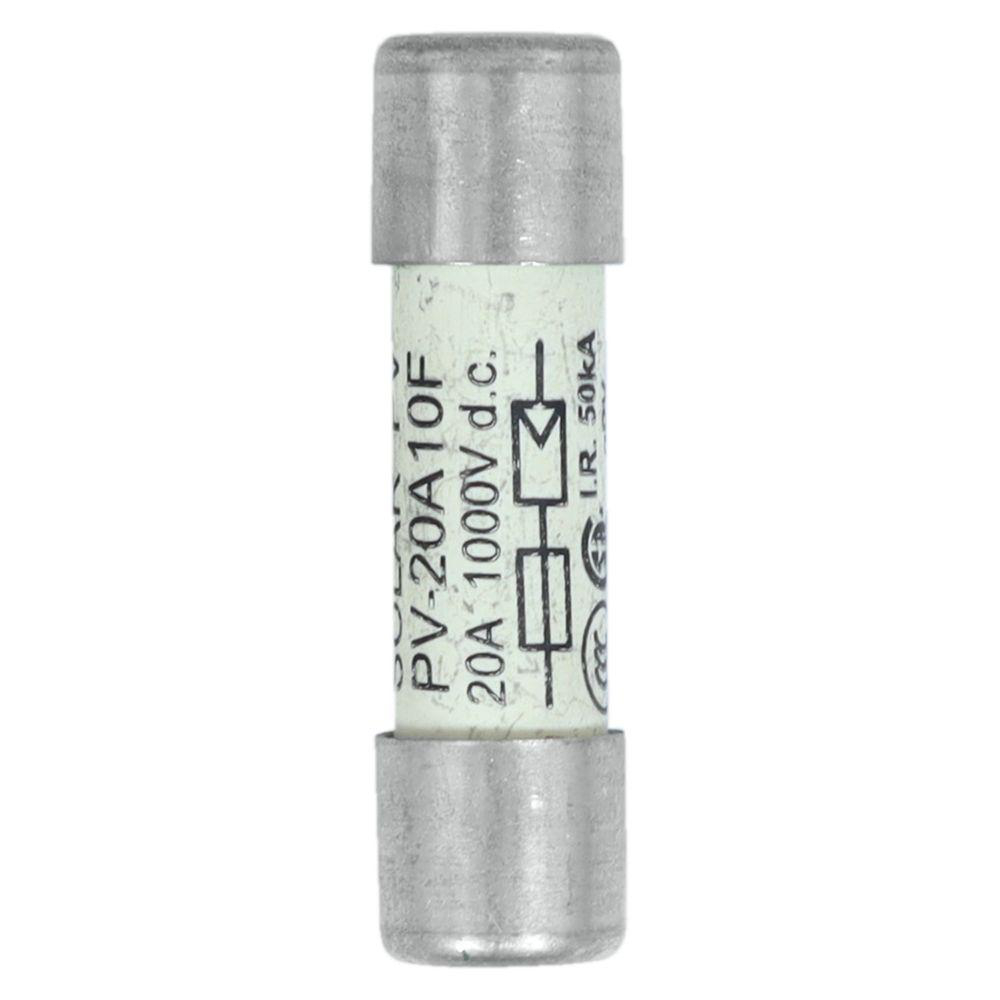

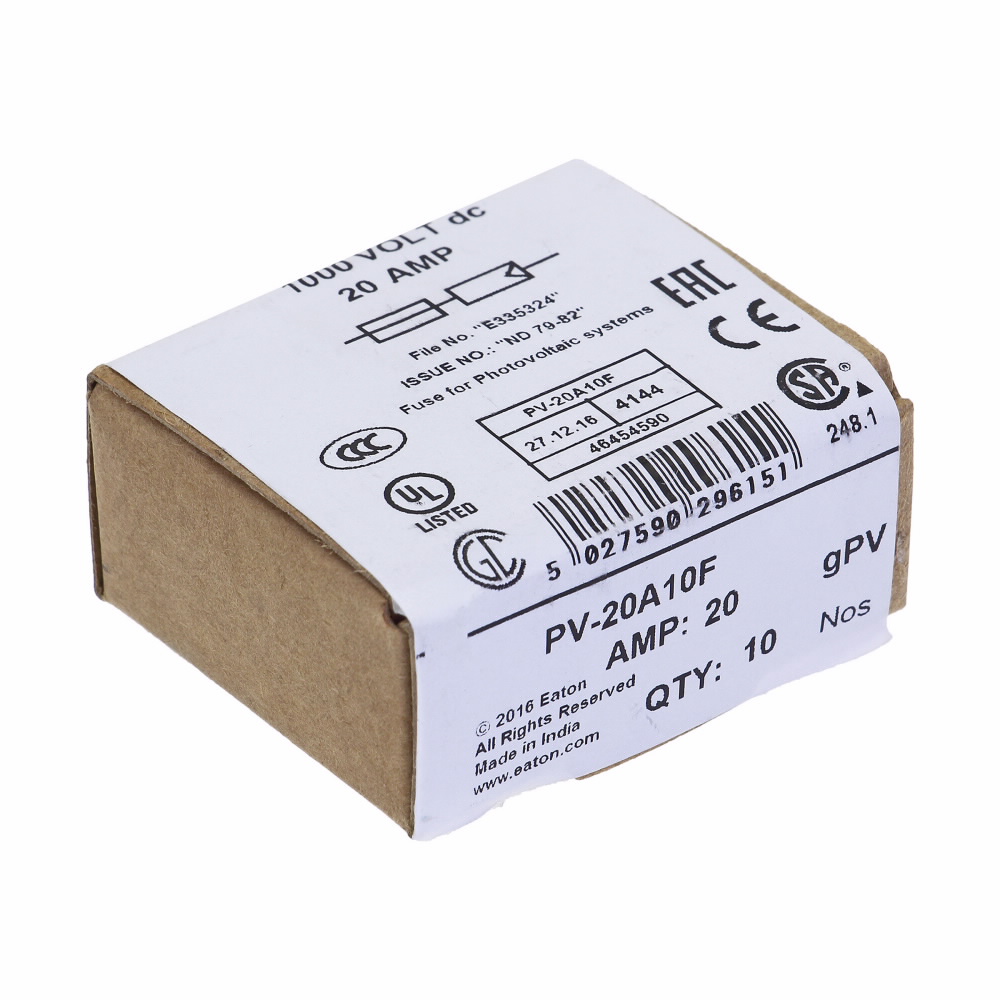

Product image for 20AMP 1000V DC SOLAR FERRULE 10 X 38MM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

20AMP 1000V DC SOLAR FERRULE 10 X 38MM

Manufacturer: Bussman Cooper Fuses | Catalog # PV-20A10F | Electrozad South Part # 315956
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 20A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end

Technical Information

Amperage
20 A
Applications
Generation - Renewable Energy - Alternative EnergyGeneration - Renewable Energy - SolarGeneration - Renewable Energy - Storage Systems
Body Material
Ceramic
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
50 kA
Material
Ceramic
Mounting Type
Cylindrical
Size
10.30 mm Diameter X 38.00 mm Length
TC Connection
Ferrule end x ferrule end
Type
Fuse
Voltage
1000 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712358231
Class
Class GPV
Color
Yellow
GTIN
00051712358231
Product UPC
51712358231
Weight
9.7 g

Dimensions

Diameter
10 mm
Height
11 mm
Length
38 mm
