Al,MechLug,2H,2B,500-1000K,1/2S,PK3

Manufacturer: Panduit | Catalog # LAM2LB1000-12-3 | Electrozad South Part # 315729
$8,472.61 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

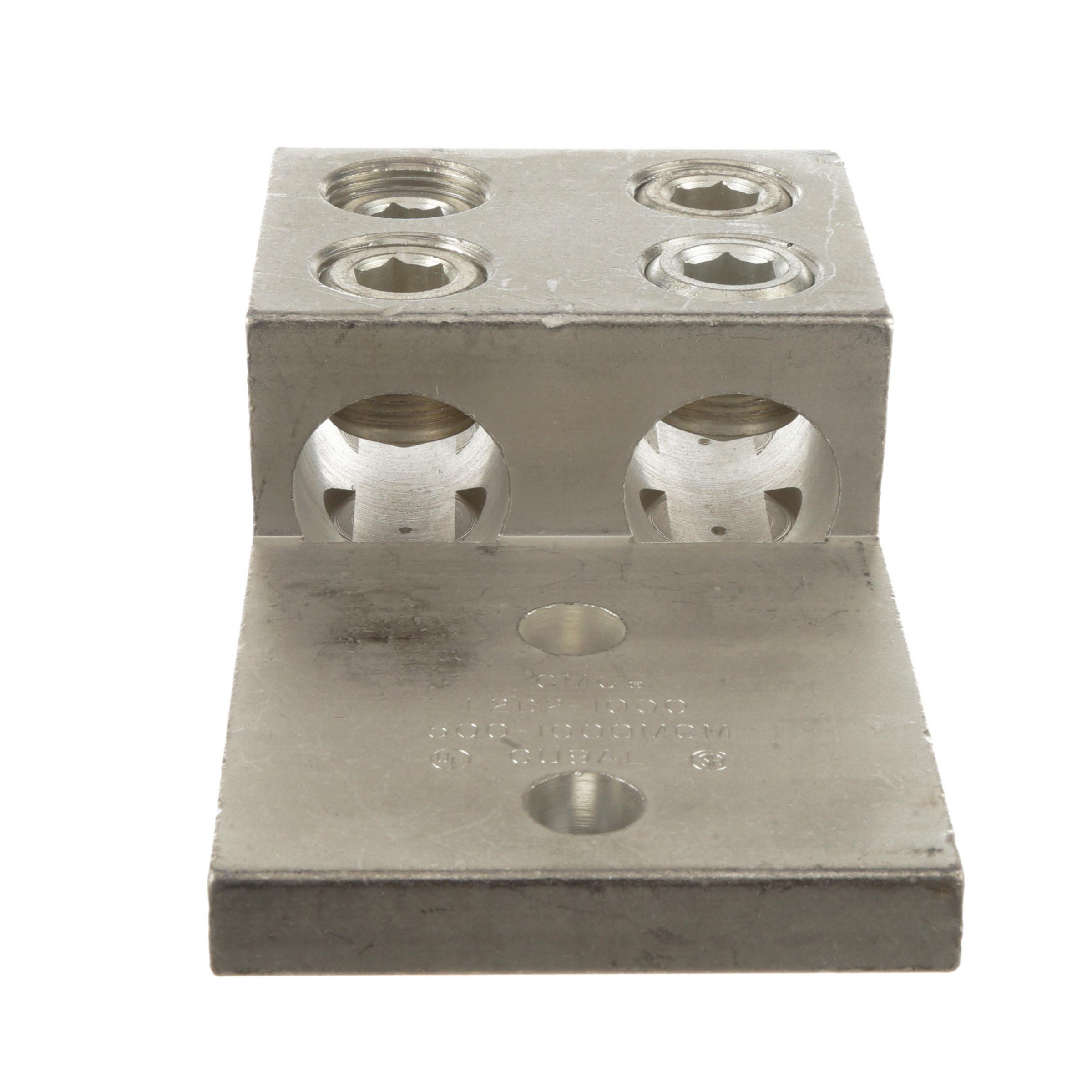

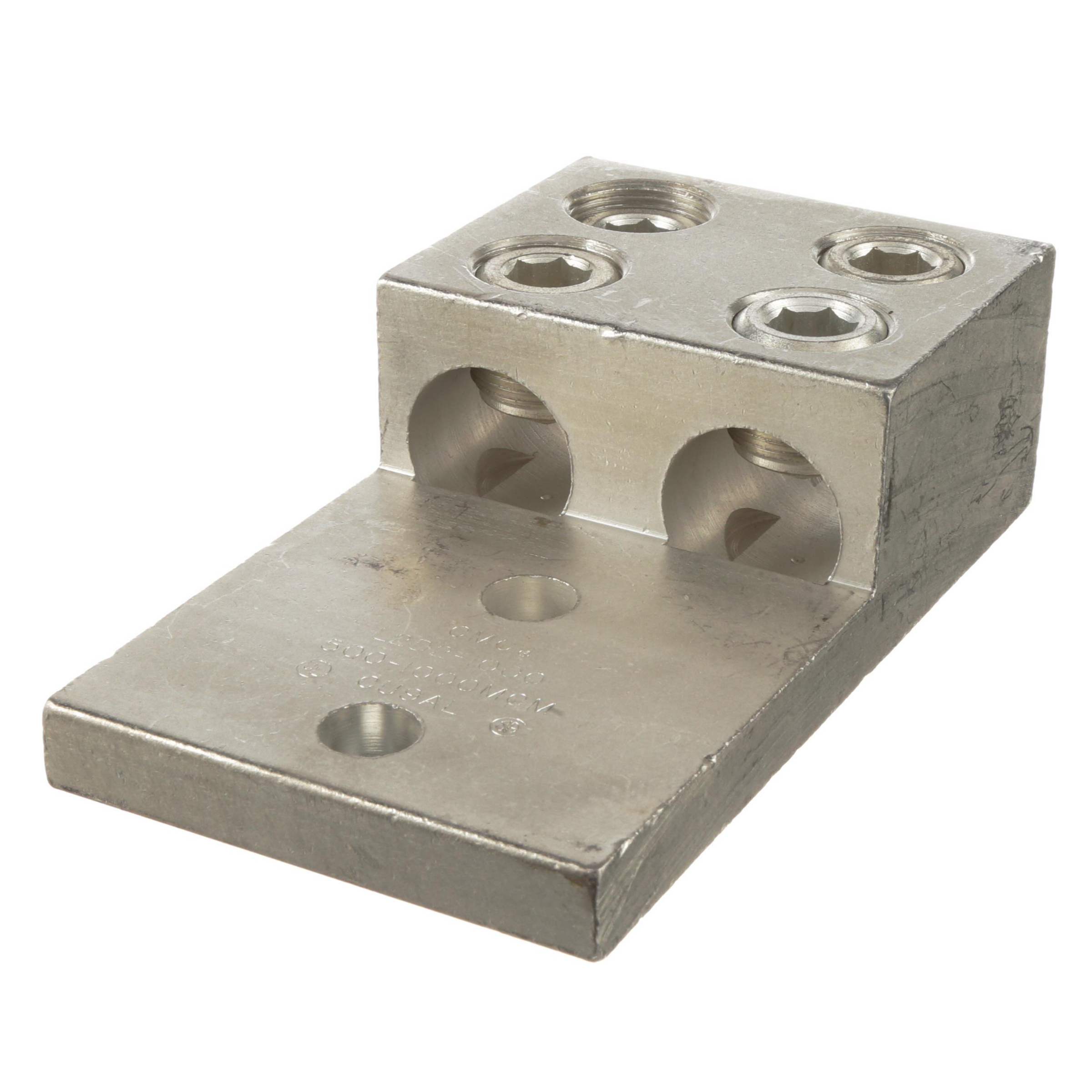

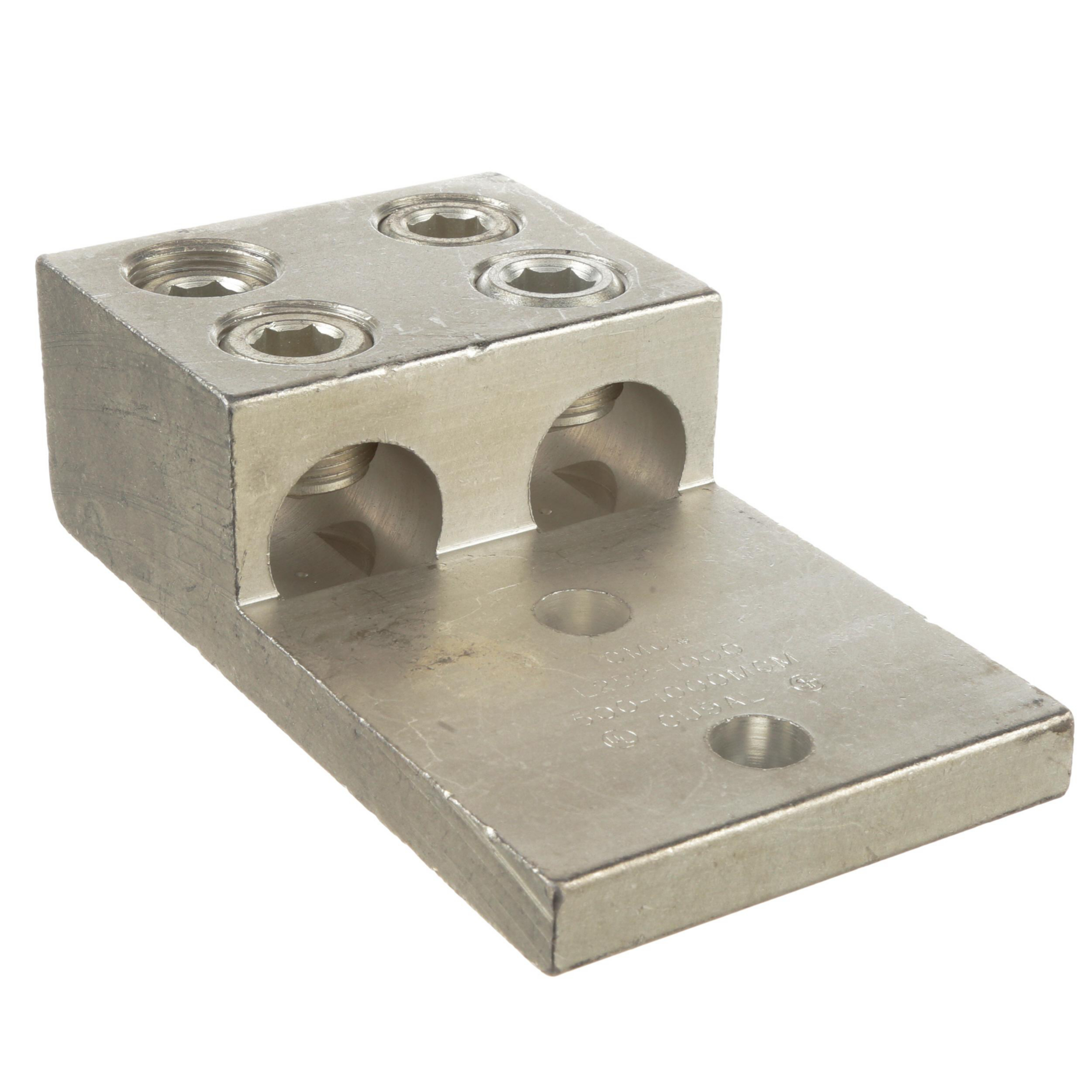

Two-hole, aluminum, two barrel lug, dual barrel, type LAM2B, NEMA hole sizes and spacing, 500 - 1000 kcmil, 1/2 (12.7mm) stud hole.

Technical Information

Applications
Stranded Aluminum or Copper Code Conductor
Conductor Material
Tin-Plated Aluminum
Material
Aluminum
Number of Holes
2
Number of Ports
NA
Stud Hole Size
1/2 in
Temperature Rating
90degrees C (194degrees F)
Tongue Thickness
0.56 in
Tongue Type
Straight
Tongue Width
3.48 in
Type
Mechanical Lug

Packaging

Package Qty
3

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983325832
Finish
Tin Plated
GTIN
00074983325832
Product Type
Power Connectors
Product UPC
07498332583

Dimensions

Height
1.9 in
Length
6.19 in
Overall Length
6.19 in

Certifications & Compliance

ARRA Compliant
Yes
BAA | Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
USA
Hazmat Flag
No
