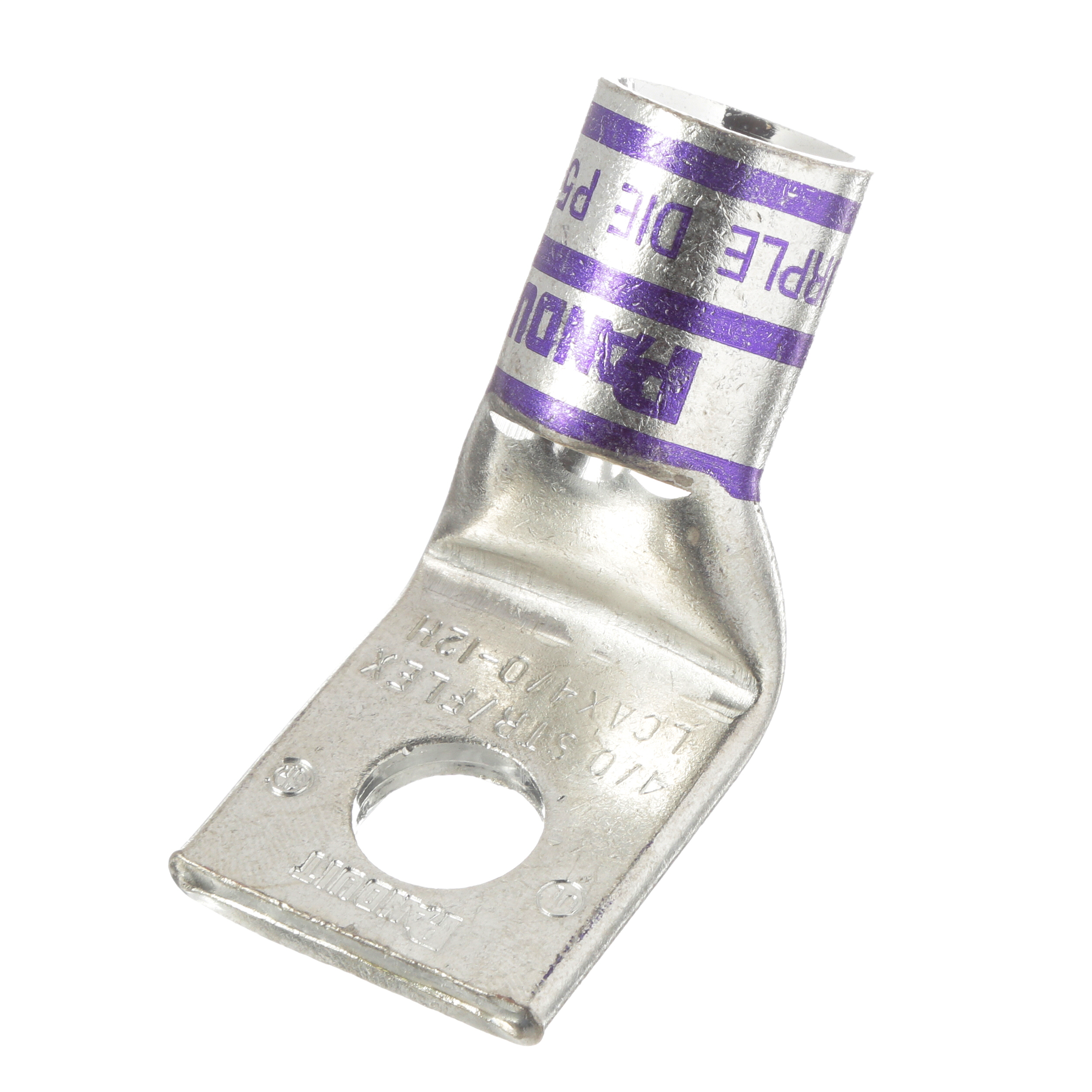

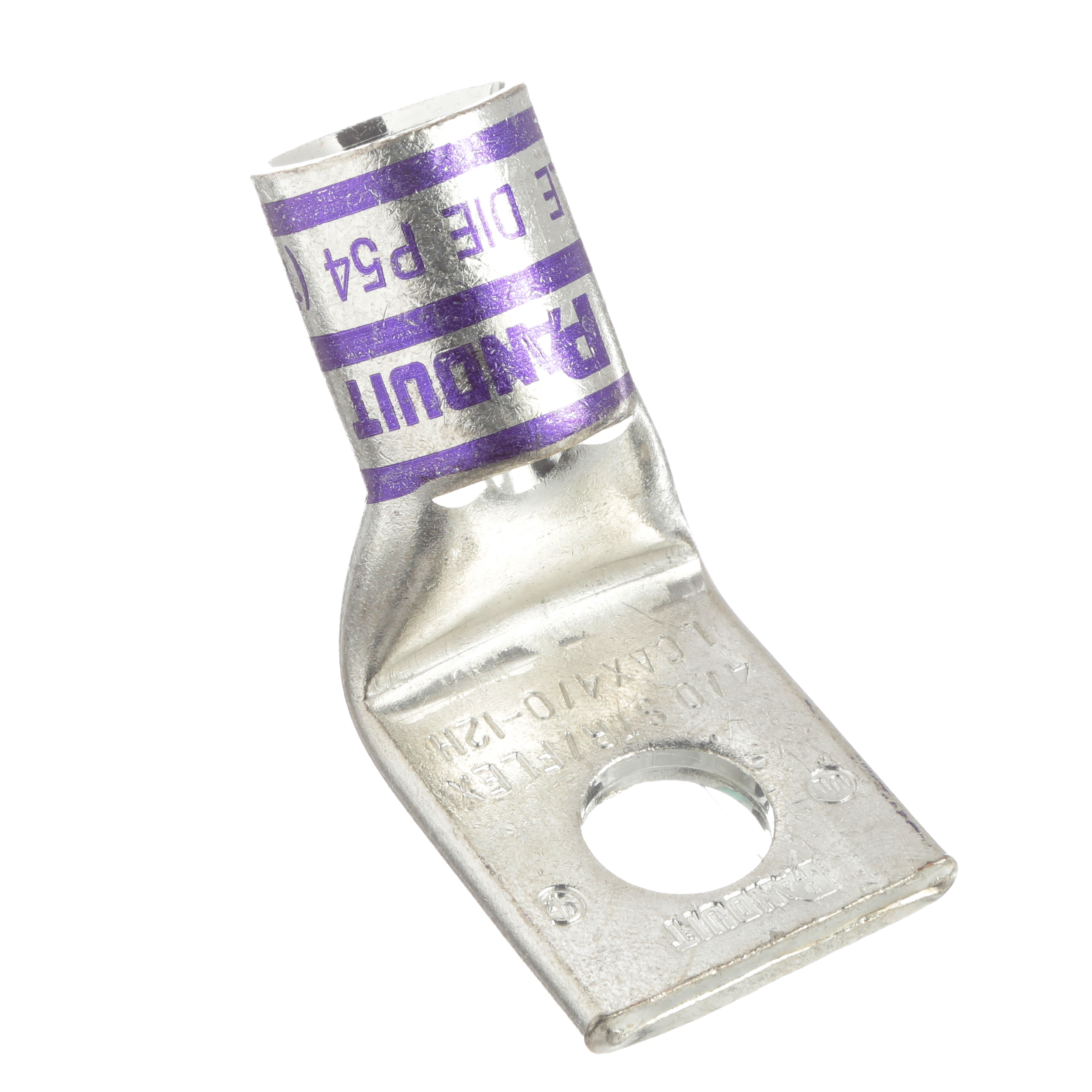

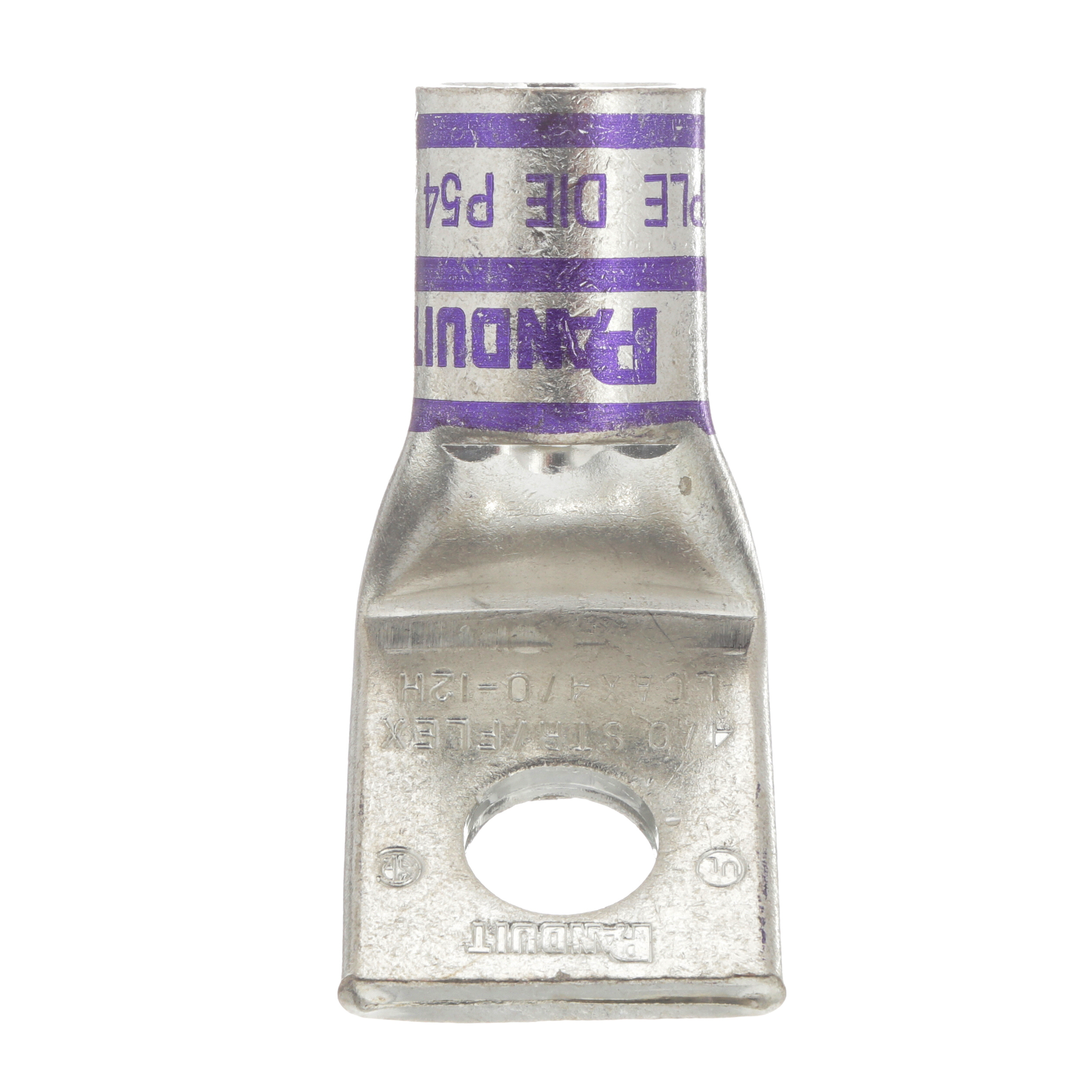

Product image for Pan-Lug™ LCAX4/0-12H-X Copper Compression Connectors - Lugs
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pan-Lug™ LCAX4/0-12H-X Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCAX4/0-12H-X | Electrozad South Part # 313530
$3,326.73 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
One-hole, flex lug, 4/0 AWG wire, 1/2 stud hole, 45.. angle tongue.

Technical Information

Angle
45°
Barrel Length
1.03 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Color Coding
Purple
Material
Copper
Number of Holes
1
Size
4/0 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
1/2 In.
Tongue Angle
45 degrees
Tongue Thickness
0.16 in
Tongue Type
Standard
Tongue Width
1.19 in
Type
Compression Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435654
Color
Purple
GTIN
00074983435654
Product UPC
07498343565
UNSPSC
39121405

Dimensions

Overall Length
2.37 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
