UL489 MCB 2P K 50A 240 | Electrozad South

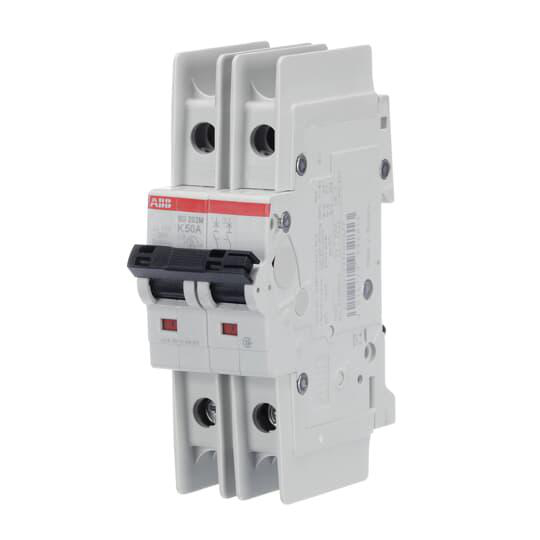

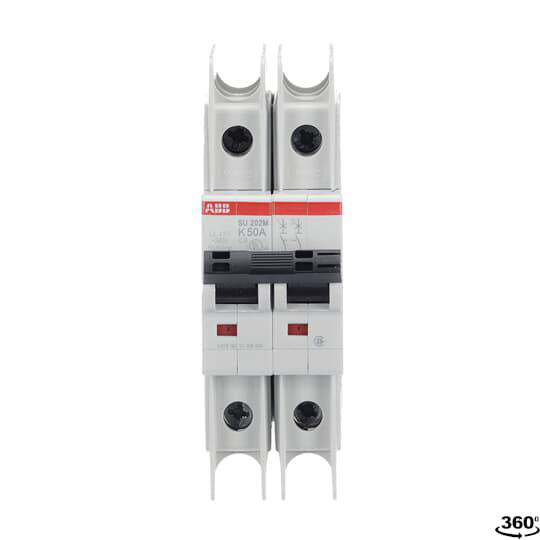

Product image for UL489 MCB 2P K 50A 240
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

UL489 MCB 2P K 50A 240

Manufacturer: ABB Inc | Catalog # SU202M-K50 | Electrozad South Part # 309770
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1
Miniature Circuit Breaker, Rated Current 50 Amps, 2 Pole, Interrupt Rating 10 kA, Trip Curve K, Voltage up to 240 VAC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
50 A
Applications
Branch Circuit Protection
Current
50 A
Interrupt Rating
10 kA
Number of Poles
2
Operating Temperature
55 degrees C
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Terminal Type
Screw Terminals
Trip Type
K
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
240 V

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614423473
GTIN
04016779932813
Product UPC
88861442347

Dimensions

Height
111 mm
Length
69 mm
Width
35 mm
