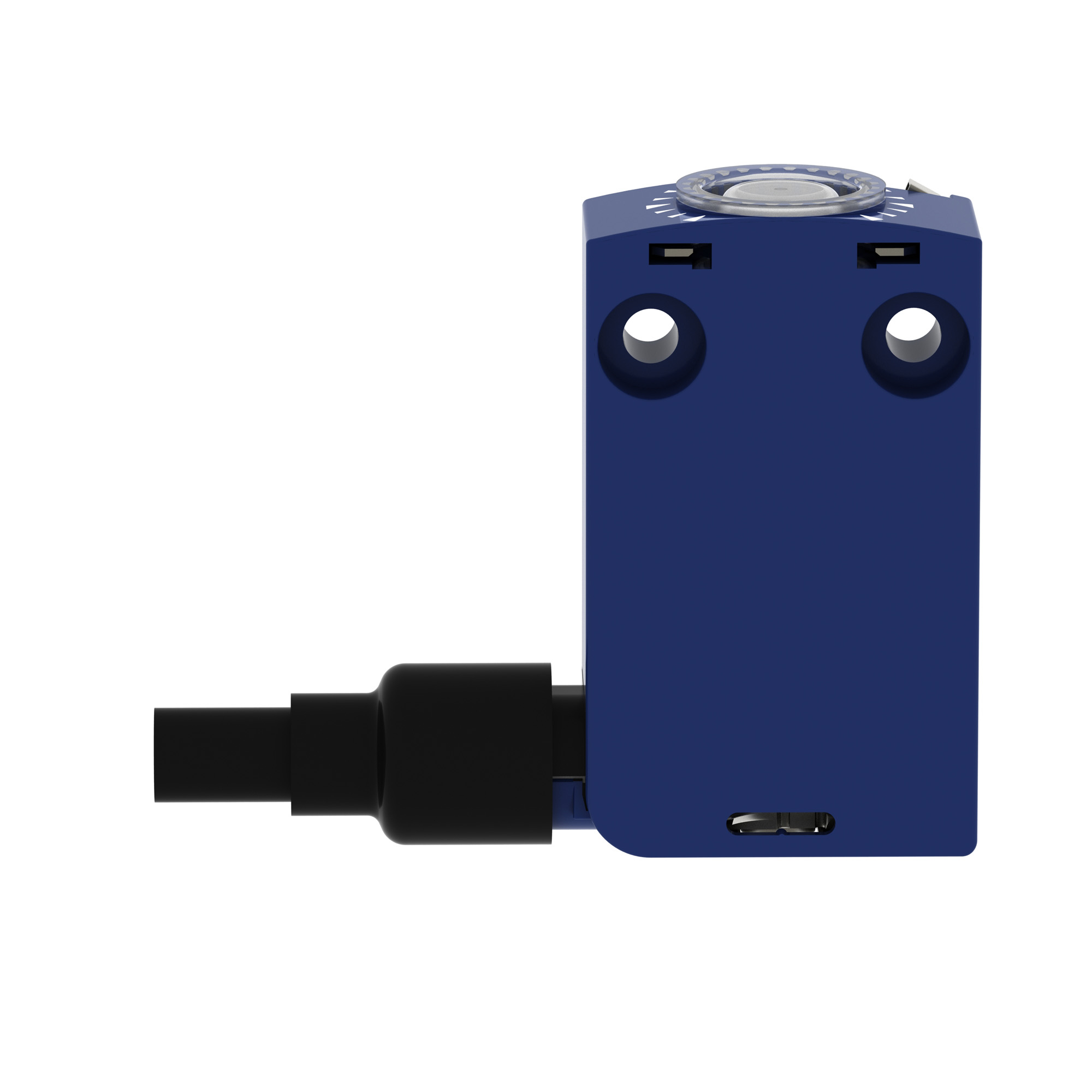

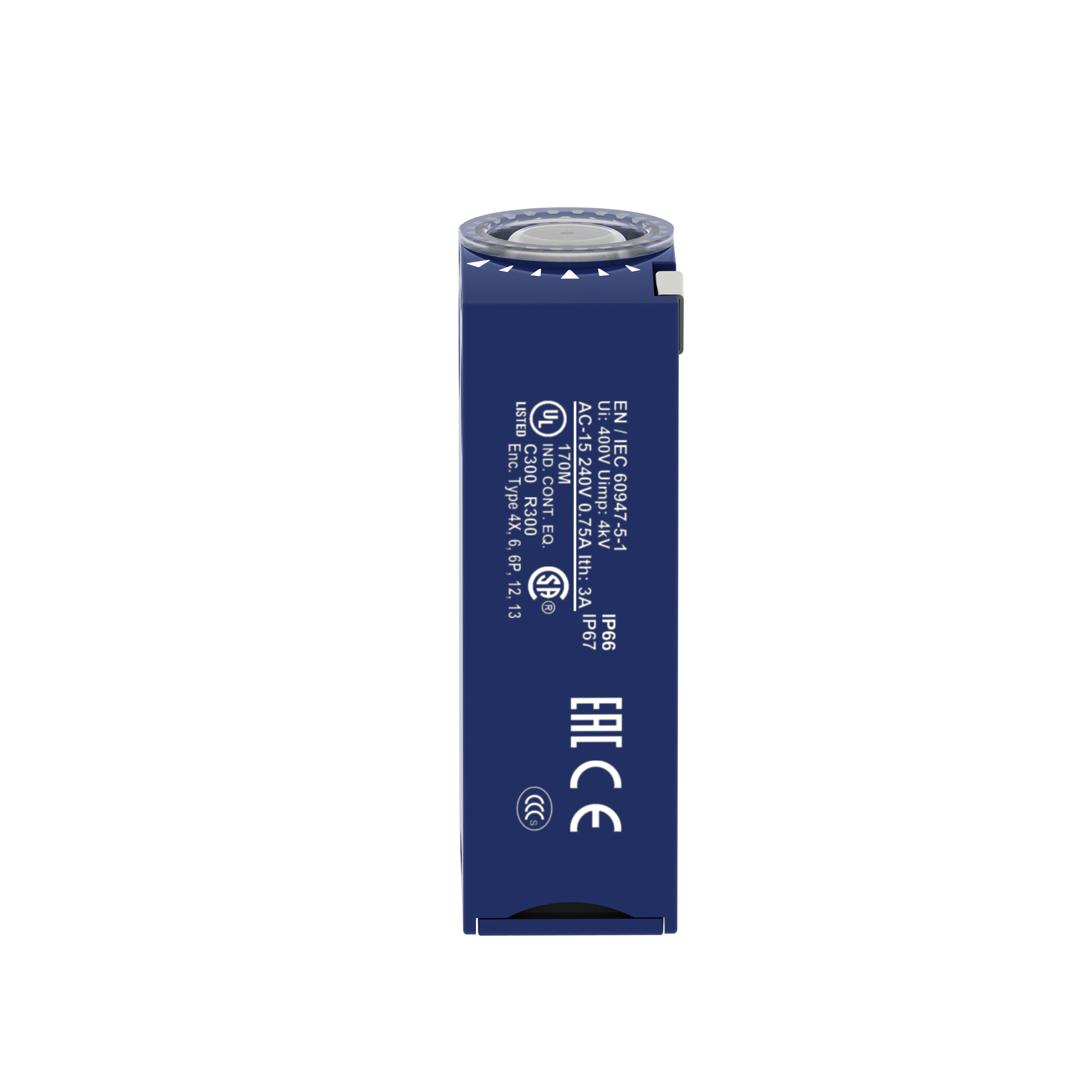

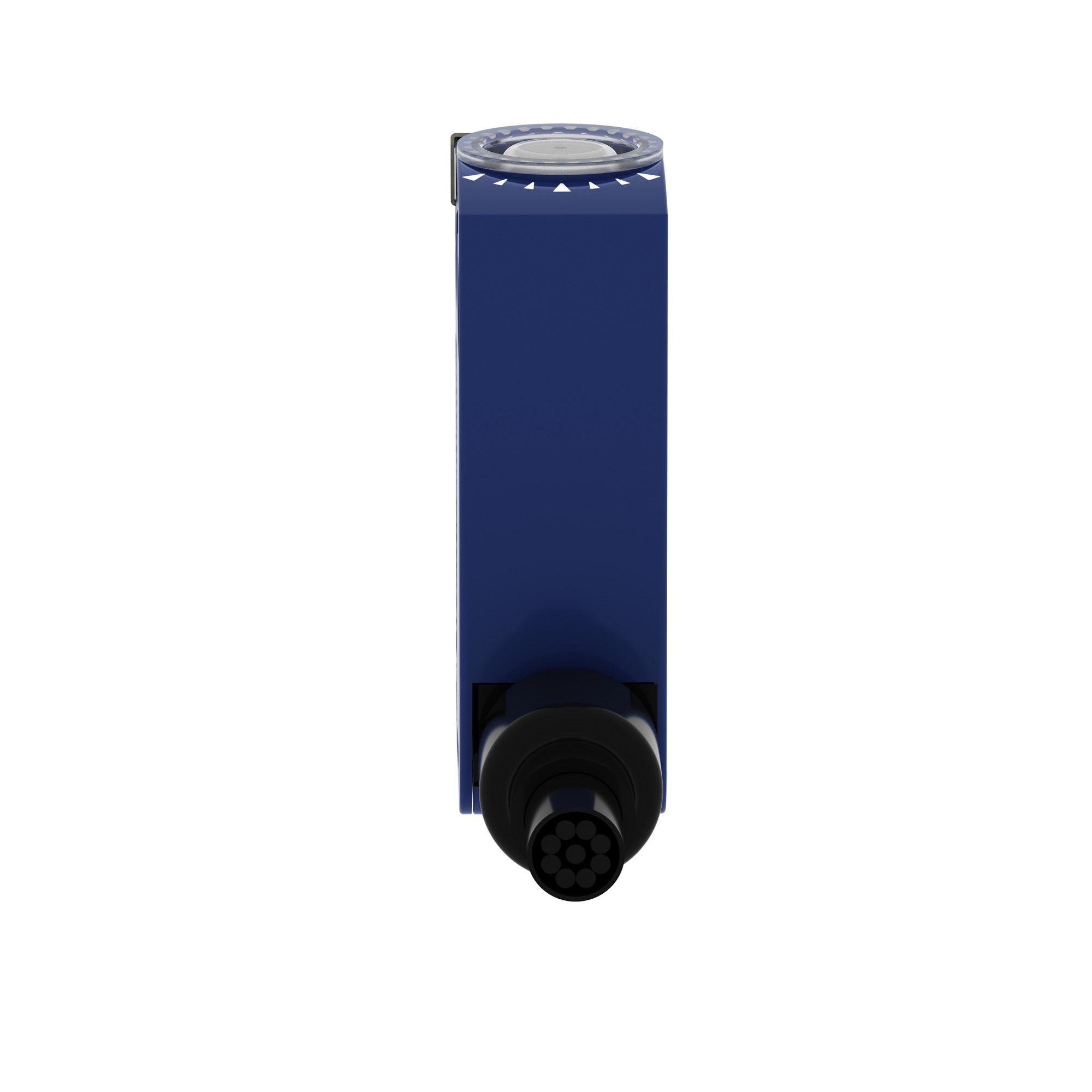

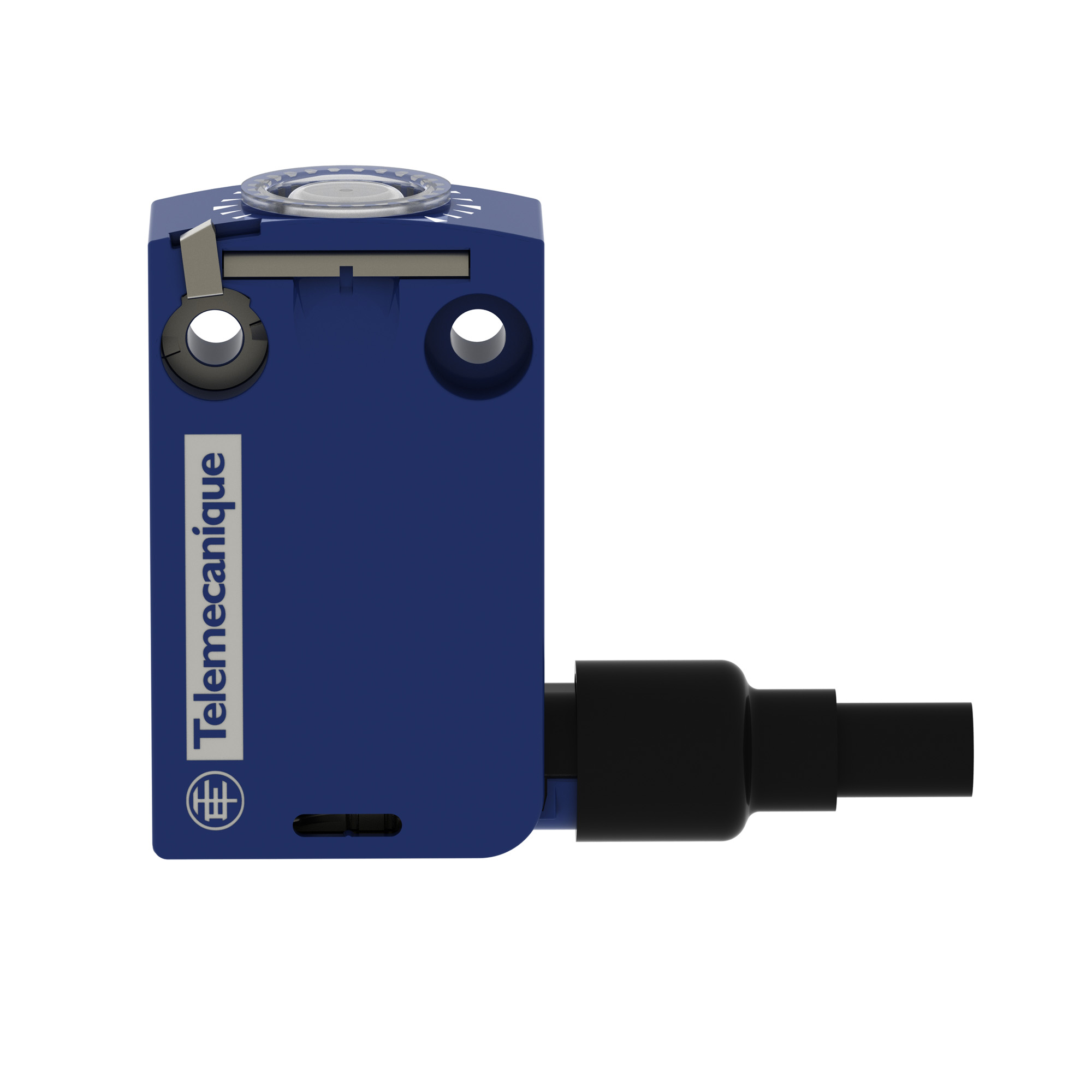

Product image for LIMIT SWITCH, LIMIT SWITCHES XC STANDARD, XCMD, METAL END PLUNGER, 1NC+1 NO, SLOW, 1 M
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

LIMIT SWITCH, LIMIT SWITCHES XC STANDARD, XCMD, METAL END PLUNGER, 1NC+1 NO, SLOW, 1 M

Manufacturer: Telemecanique Controls | Catalog # XCMD2510L1 | Electrozad South Part # 305224
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
LIMIT SWITCH, LIMIT SWITCHES XC STANDARD, XCMD, METAL END PLUNGER, 1NC+1 NO, SLOW, 1 M

Technical Information

Action
ON END,SLOW-BREAK,VERTICAL APPROACH, 1 DIRECTION
Actuator
SPRING RETURN PLUNGER METAL
Applications
MINIATURE VARIABLE
Body Material
Zamak
Body Type
Fixed
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Head Type
Plunger head
Material
Metal
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
16 MM,30 MM,50-50 MM
TC Connection
REMOVABLE CABLE CONNECTOR
Type
LIMIT SWITCH,PLUNGER HEAD

Manufacturer Information

Brand
OSISENSE XC
Sub Brand
XCMD

General Product Info

12-Digit UPC
891102211698
Product UPC
89110221169
