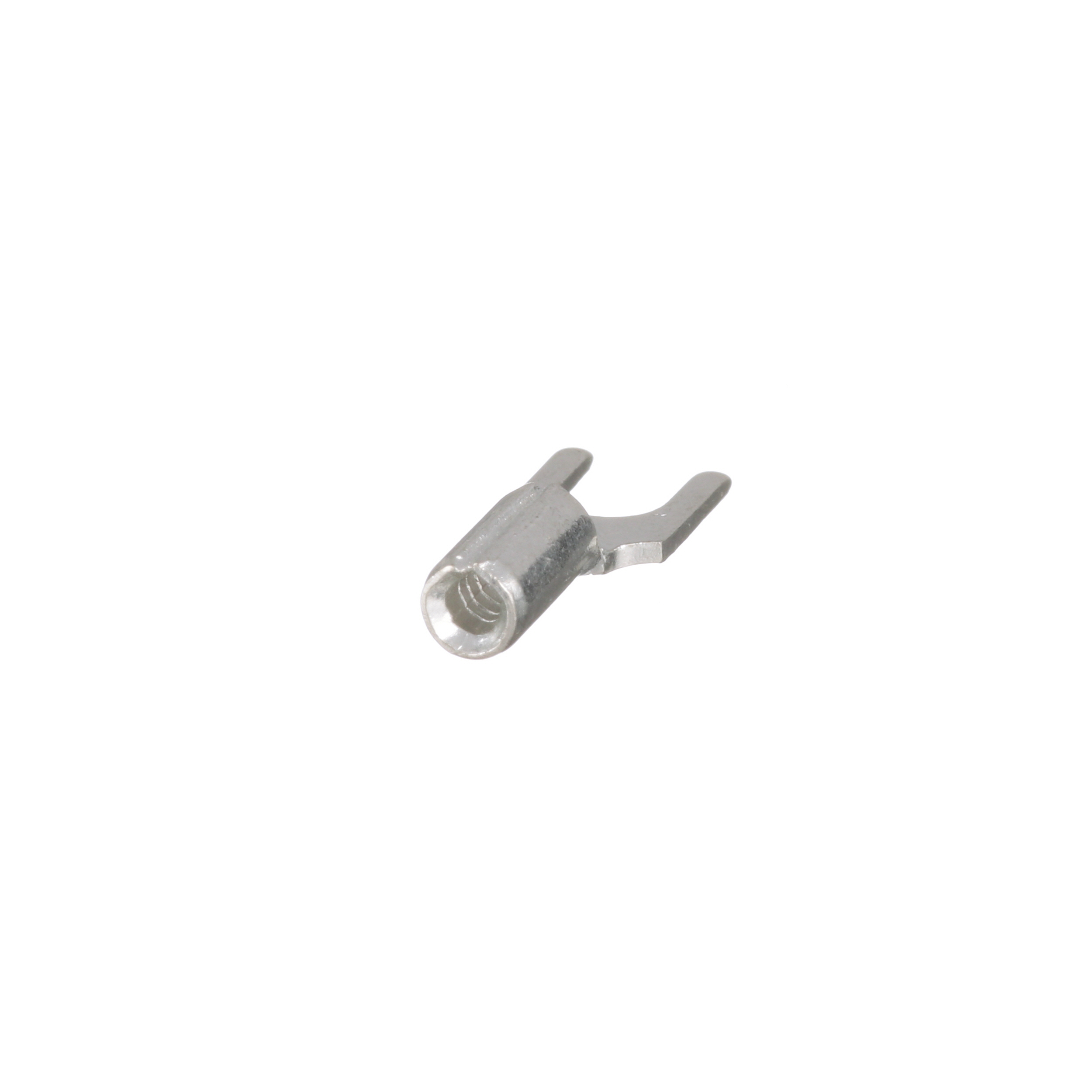

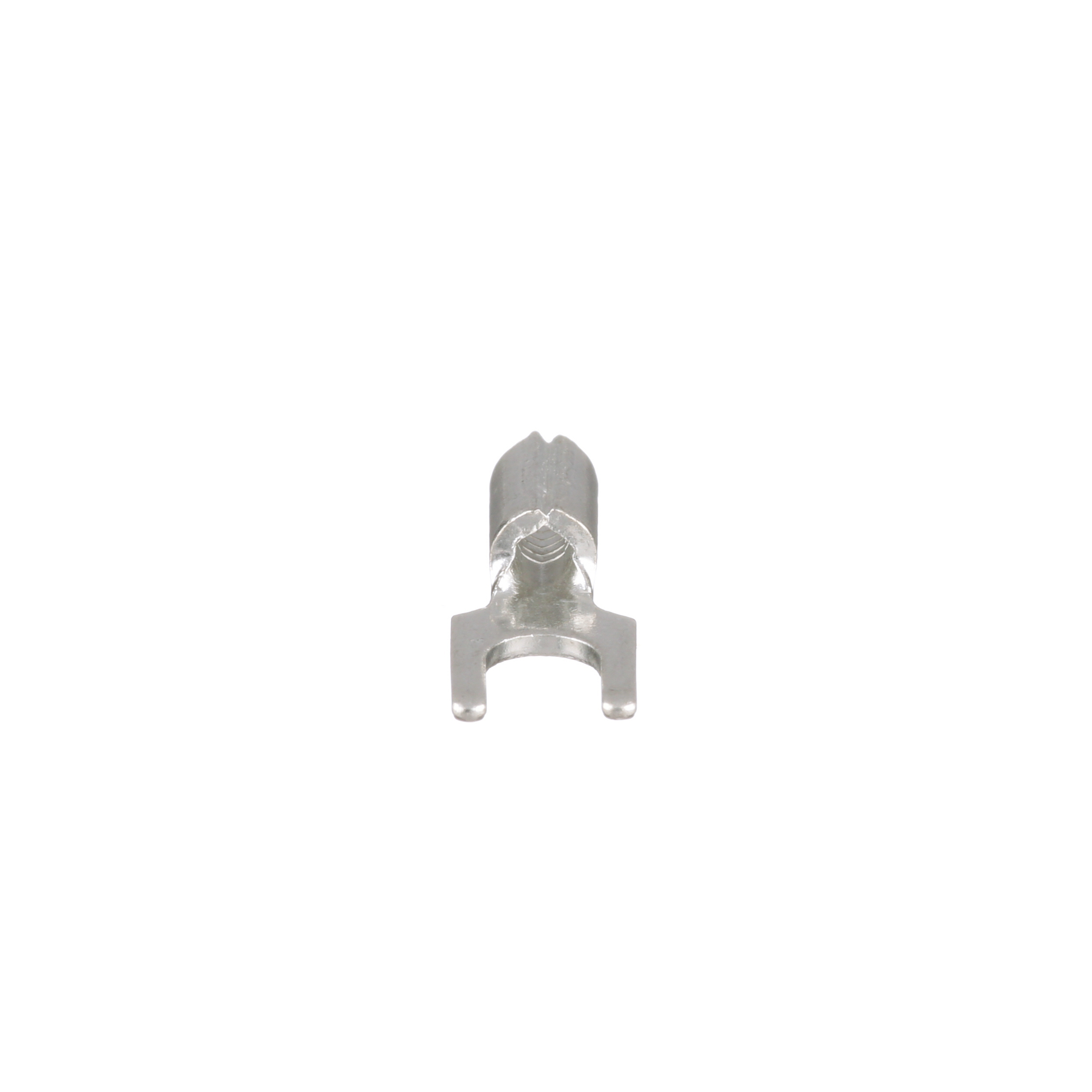

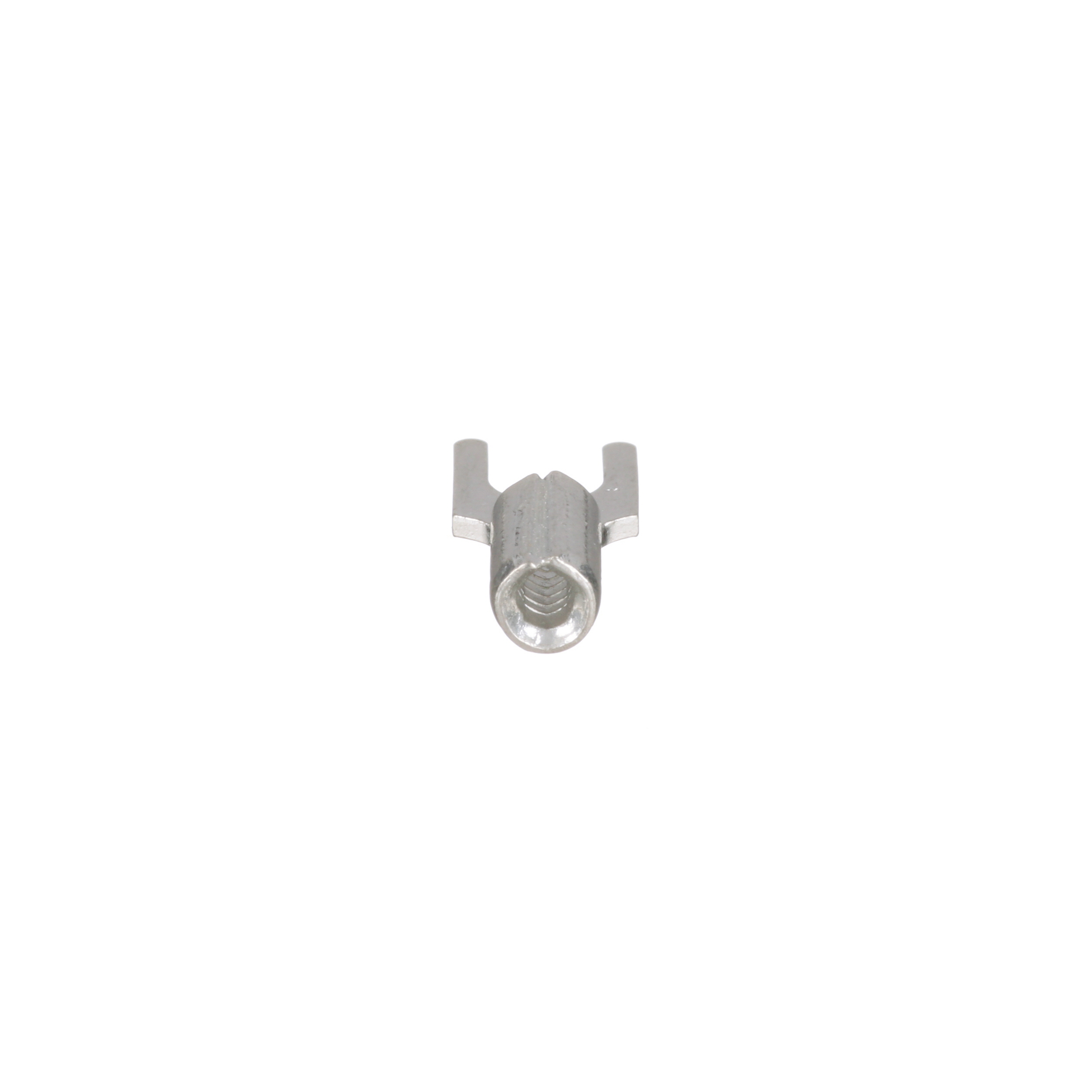

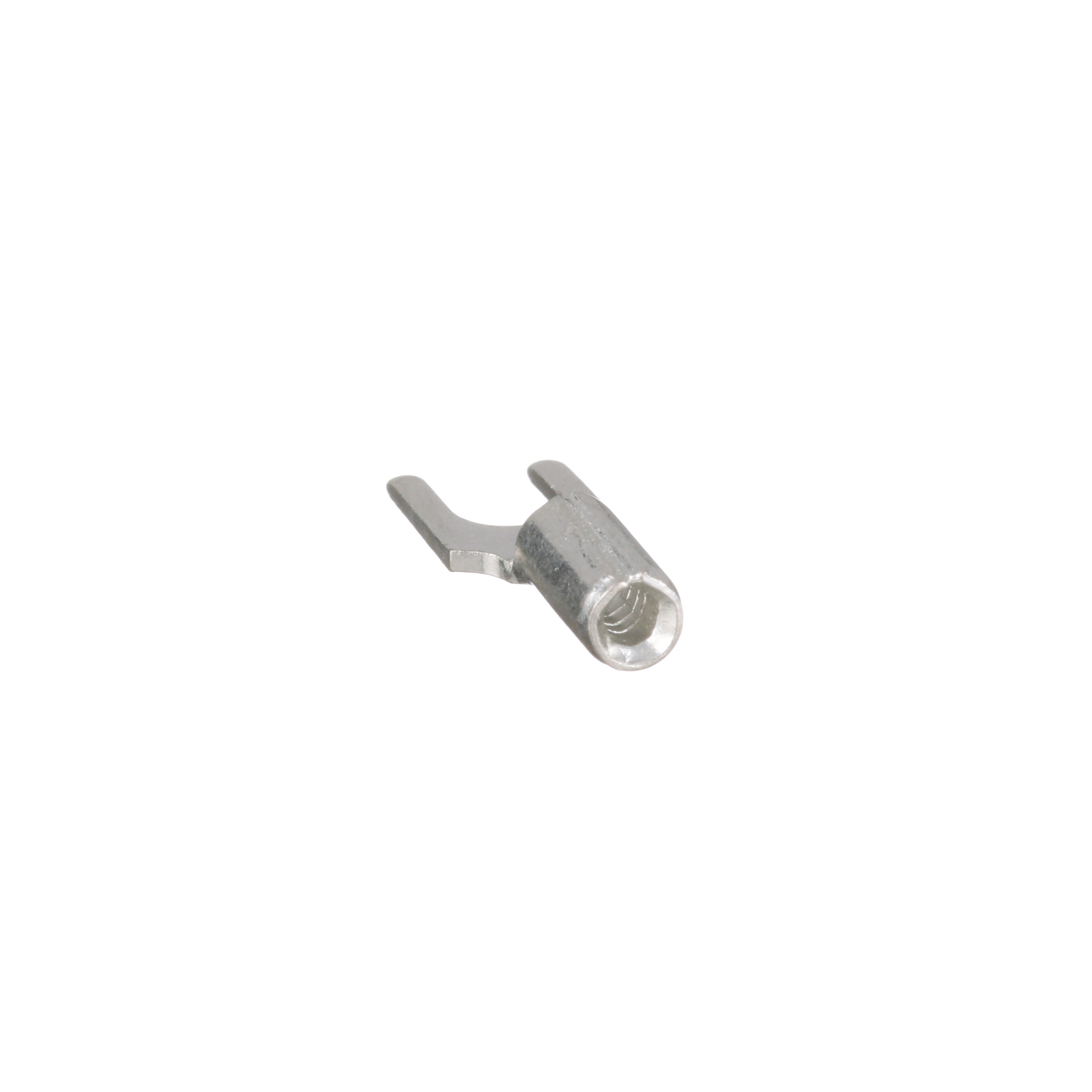

Pan-Term® PM1-3F-C Loose Piece Forks

Manufacturer: Panduit | Catalog # PM1-3F-C | Electrozad South Part # 301597
$56.94 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Fork Terminal, 0.5 - 1.5mm.. wire range, M3 stud size, non-insulated.

Technical Information

Barrel Length
0.25 in
Barrel Type
Brazed
Color Coding
Metallic
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
M3
TC Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.03 in
Tongue Width
0.23 in
Type
Fork Terminal
Wire Size
#16 AWG

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983841622
Color
Metallic
Finish
Tin-Plated
GTIN
00074983841622
Product UPC
07498384162
UNSPSC
39121409

Dimensions

Outer Diameter
0.14 in
Overall Length
0.63 in
Width
0.23 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
