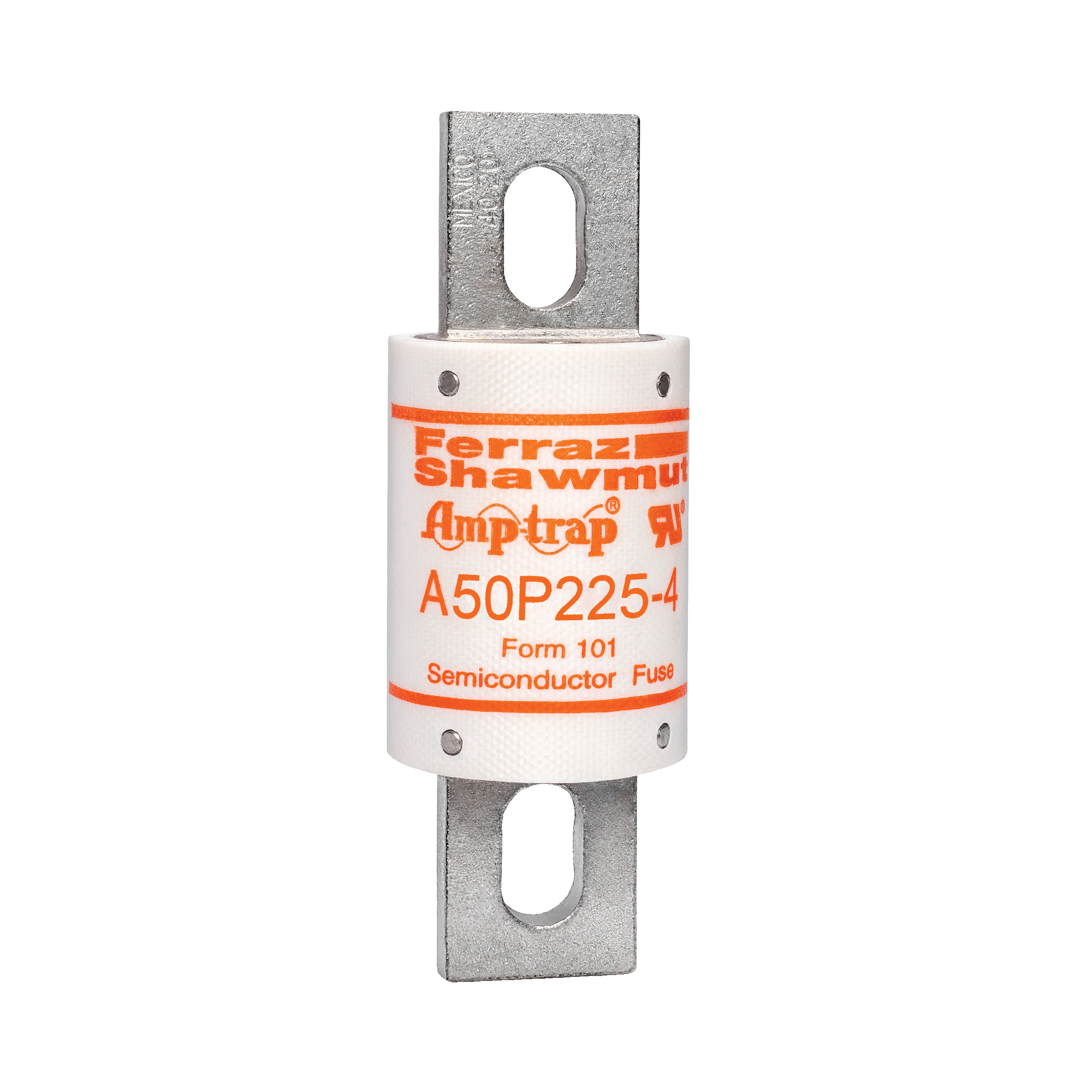

High Speed Fuse Amp-Trap® A50P 500VAC 450VDC 225A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50P225-4 | Electrozad South Part # 299647
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Technical Information

Amperage
225 A
Applications
Protection of DC drives, UPS and other equipment of 500 volts or less
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
500 V
Rated Voltage DC
450 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
North American Round Style
Voltage
500 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001940683
GTIN
30782001940684
Product UPC
78200194068
Weight
0.68 lb

Dimensions

Diameter
1.5 in
Length
4.34 in

Certifications & Compliance

Country of Origin
Mexico
