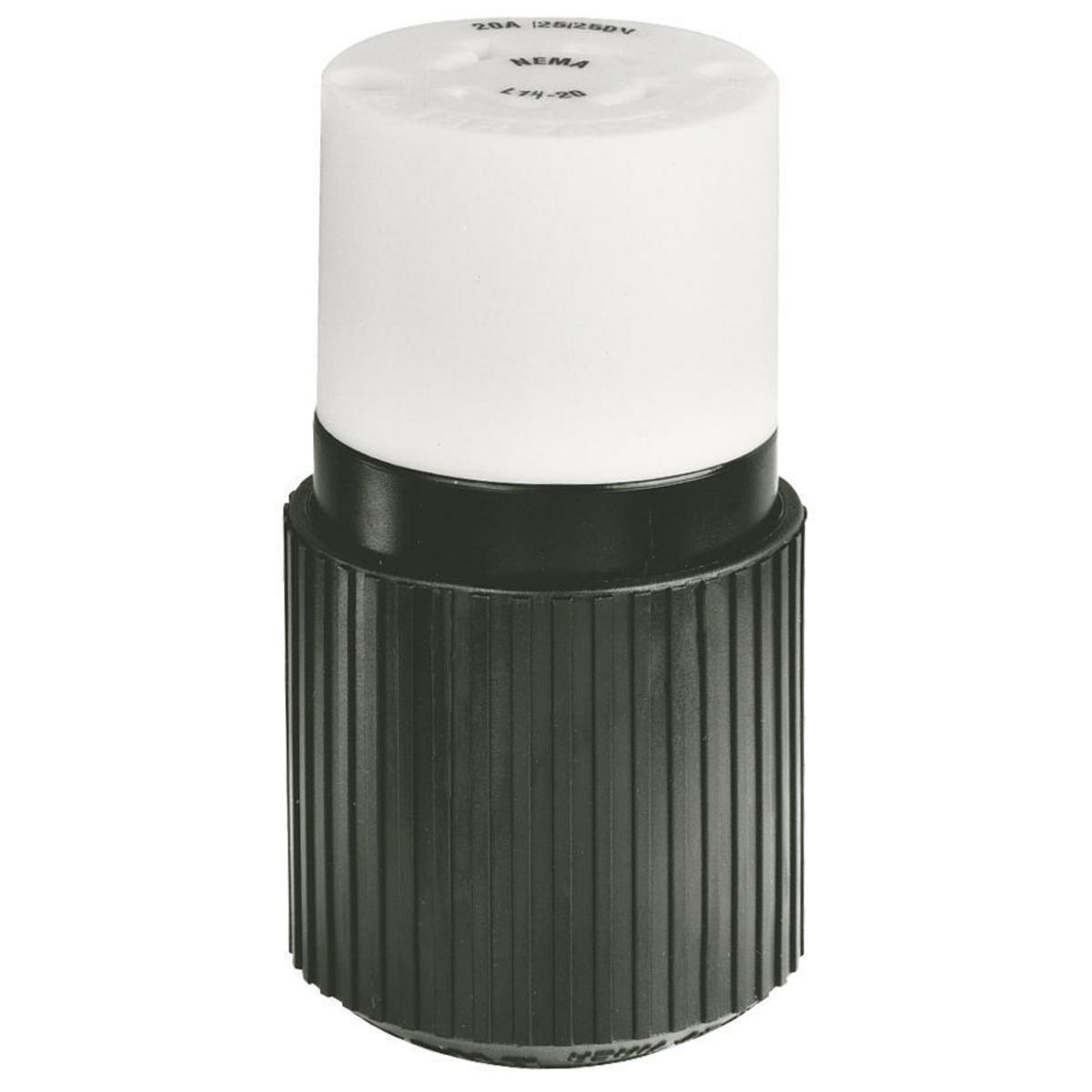

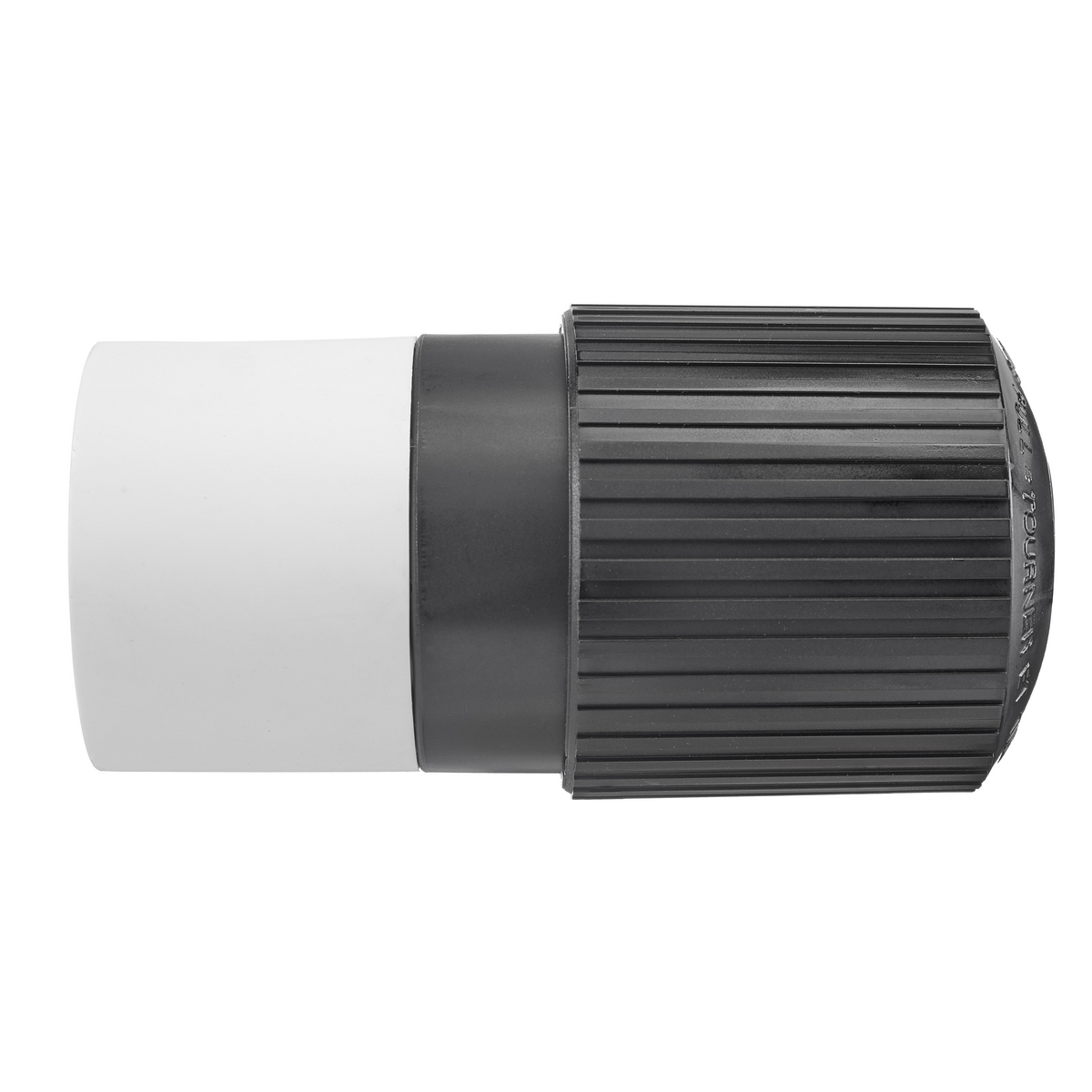

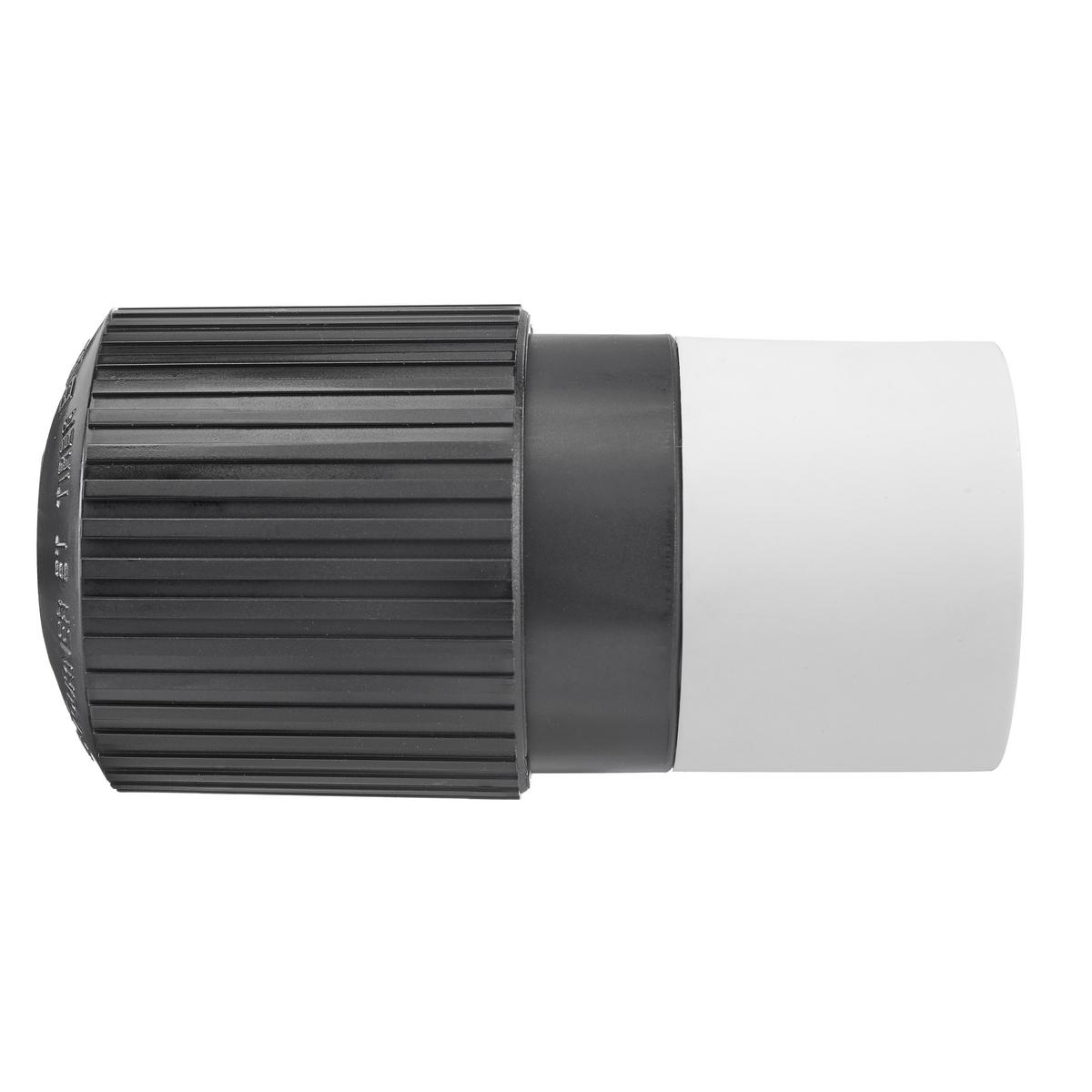

LKG CONN, 20A 125/250V, L14-20R,B/W

Manufacturer: Bryant Wiring Device | Catalog # 71420NC | Electrozad South Part # 295388
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL
Locking Devices, Industrial, Female Nylon Connector Body, 20A 125/250V AC, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Black and White

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial
Current
20 A
Material
Composite
NEMA
L14-20R
Number of Conductors
4-Wire Grounding
Number of Poles
3,3
Number of Wires
4
Size
Standard Sized Product
Style
Internal Cord Clamp
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Tech-Spec Triple Gripper
Voltage
125/250 V
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786695191
Color
Black,White
GTIN
00781786695191
Product UPC
78178669519

Dimensions

Height
3.90 in
Length
2.13 in
Width
2.140 in

Certifications & Compliance

Country of Origin
China
Overview
  • Impact/chemical resistant, toughened nylon construction
  • Face and body feature alignment keys for easy assembly
  • Amperage, voltage and NEMA configuration imprinted on face for easy identification
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
