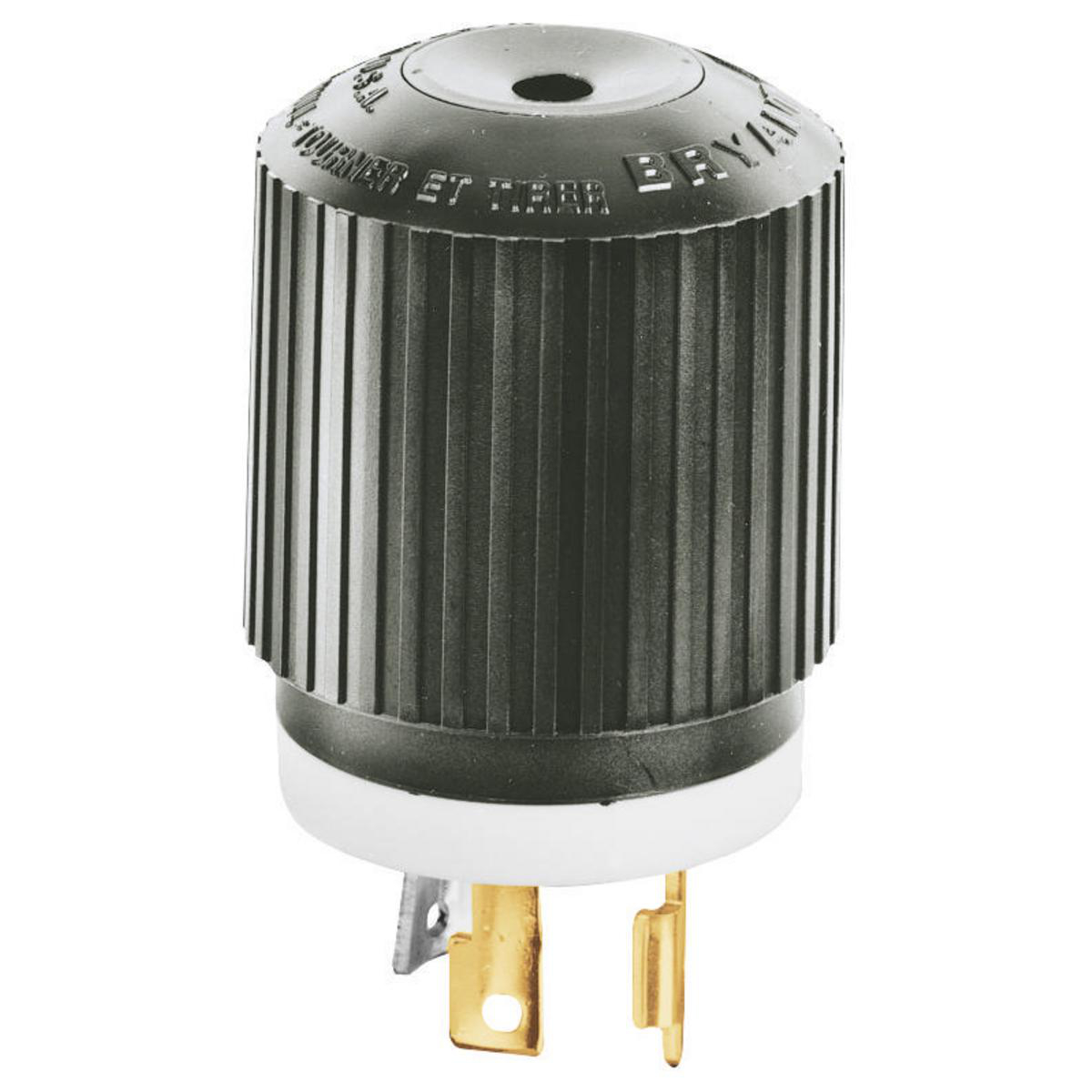

LKG PLUG, 30A 250V, L6-30P, B/W, CN

Manufacturer: Bryant Wiring Device | Catalog # 70630NP | Electrozad South Part # 295387
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL
Locking Devices, Industrial, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White

Technical Information

Amperage
30 A
Applications
Extra Heavy Duty Industrial
Cord Type
All Listed Portables
Current
30 A
Material
Composite
Number of Phases
1
Number of Poles
2,2
Number of Wires
3,3
Size
Standard Sized
TC Connection
Screw Terminal
Type
Tripple Gripper Cord Grip
Voltage
250 V
Wattage
7500 W
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786689527
Color
Black,White
GTIN
00781786689527
Product UPC
78178668952

Dimensions

Height
2.86 in
Length
2.13 in
Width
2.13 in

Certifications & Compliance

Country of Origin
China
Overview
  • Neutral blade is nickel-plated for easy identification
  • Captive, combination Slot/Phillips assembly screws
  • Hand grip features wide-rib, non-slip design
  • Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
  • Double wall construction for extra durability
