YAZ362N

Manufacturer: Burndy | Catalog # YAZ36-2N | Electrozad South Part # 294766
$68.94 /ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

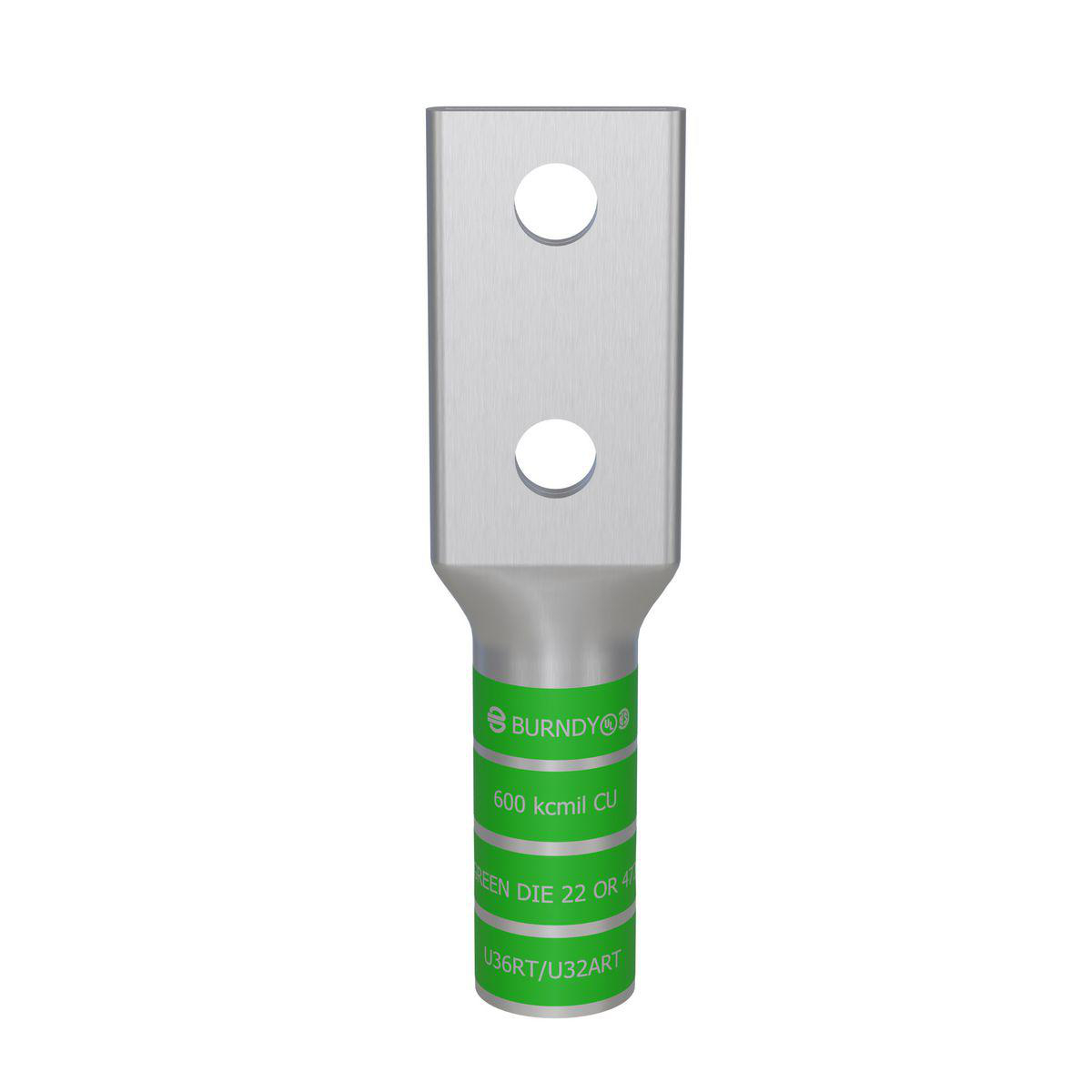

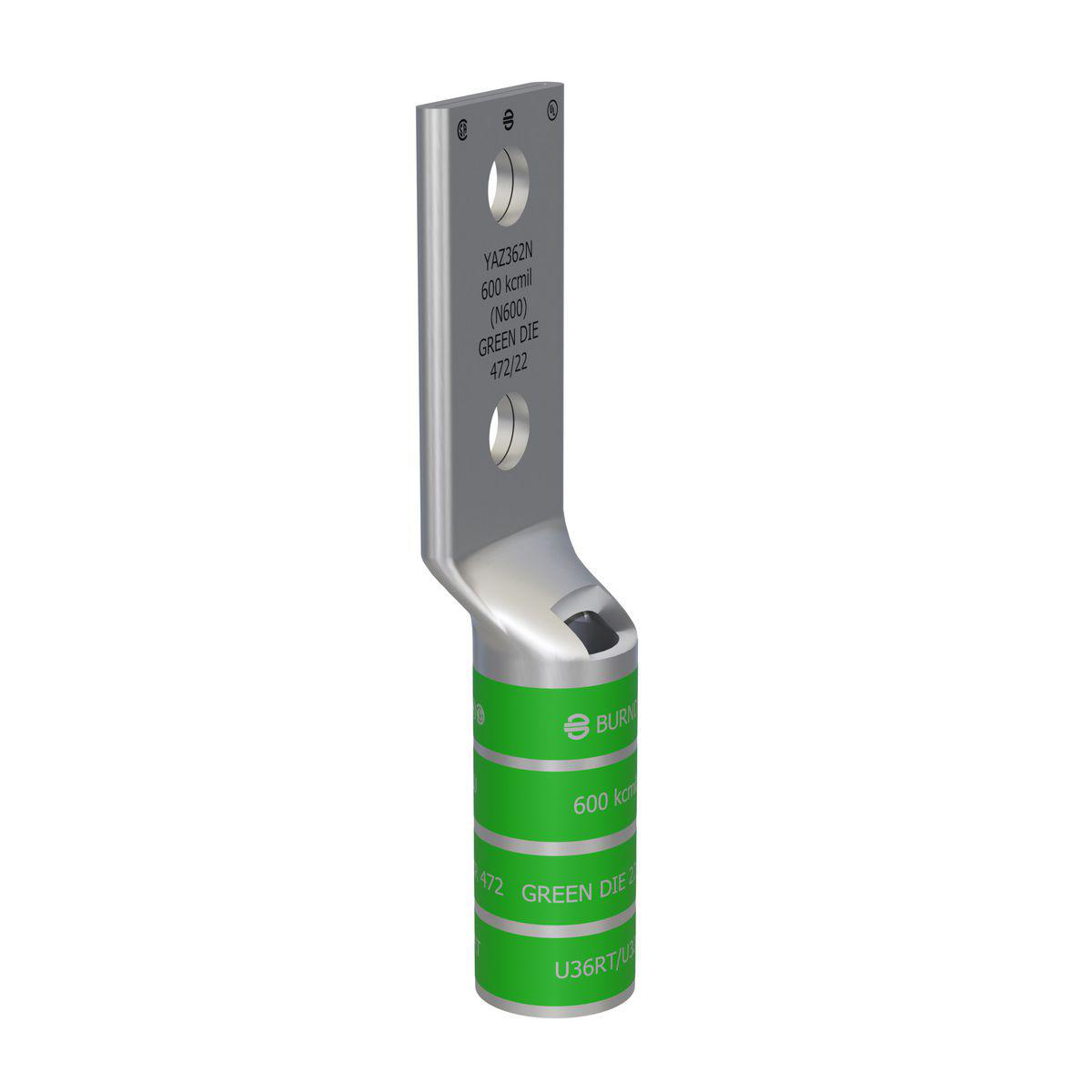

Copper Compression Lug, 2 Hole w/ Inspection Window, 600 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Technical Information

Applications
For Code Conductor
Cable Size
600 KCMIL, 300 SQ-MM For Class 2 Conductor
Color Coding
Green
Conductor Material
Copper
Conductor Size
600 MCM
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.5 in
Type
Long Barrel, Skive, Tin Plated

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810227961
Color
Green
Finish
Tin-Plated
GTIN
00781810227961
Product UPC
78181022796

Dimensions

Height
1.19 in
Hole Size
14 mm
Length
6.55 in
Overall Length
6.55 in
Width
1.74 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
