Pan-Lug™ ML1/0-LY Mech Con-Lugs, Copper, Strt, One 5/16" Stud, PK50

Manufacturer: Panduit | Catalog # ML1/0-LY | Electrozad South Part # 292630
$1,124.76 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

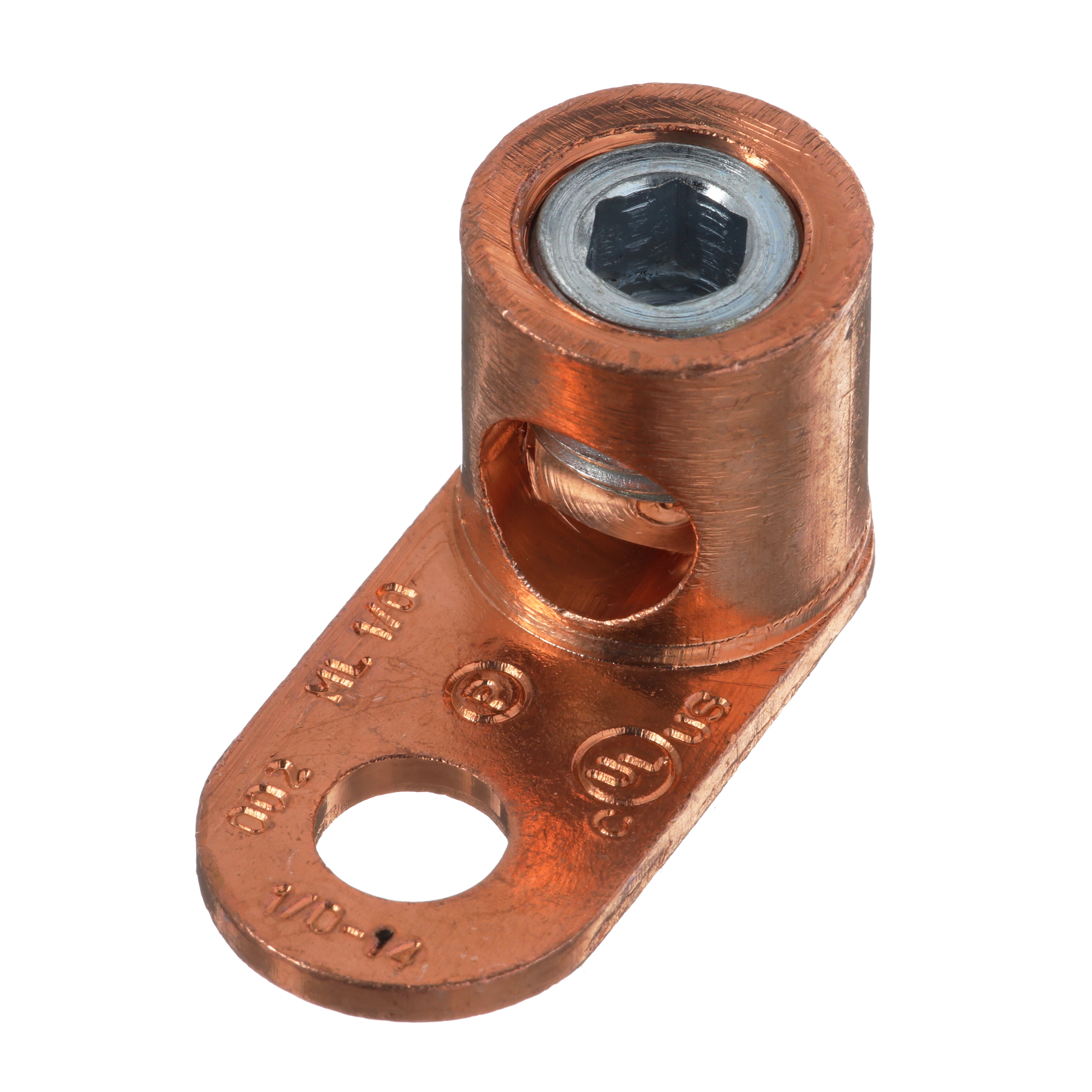

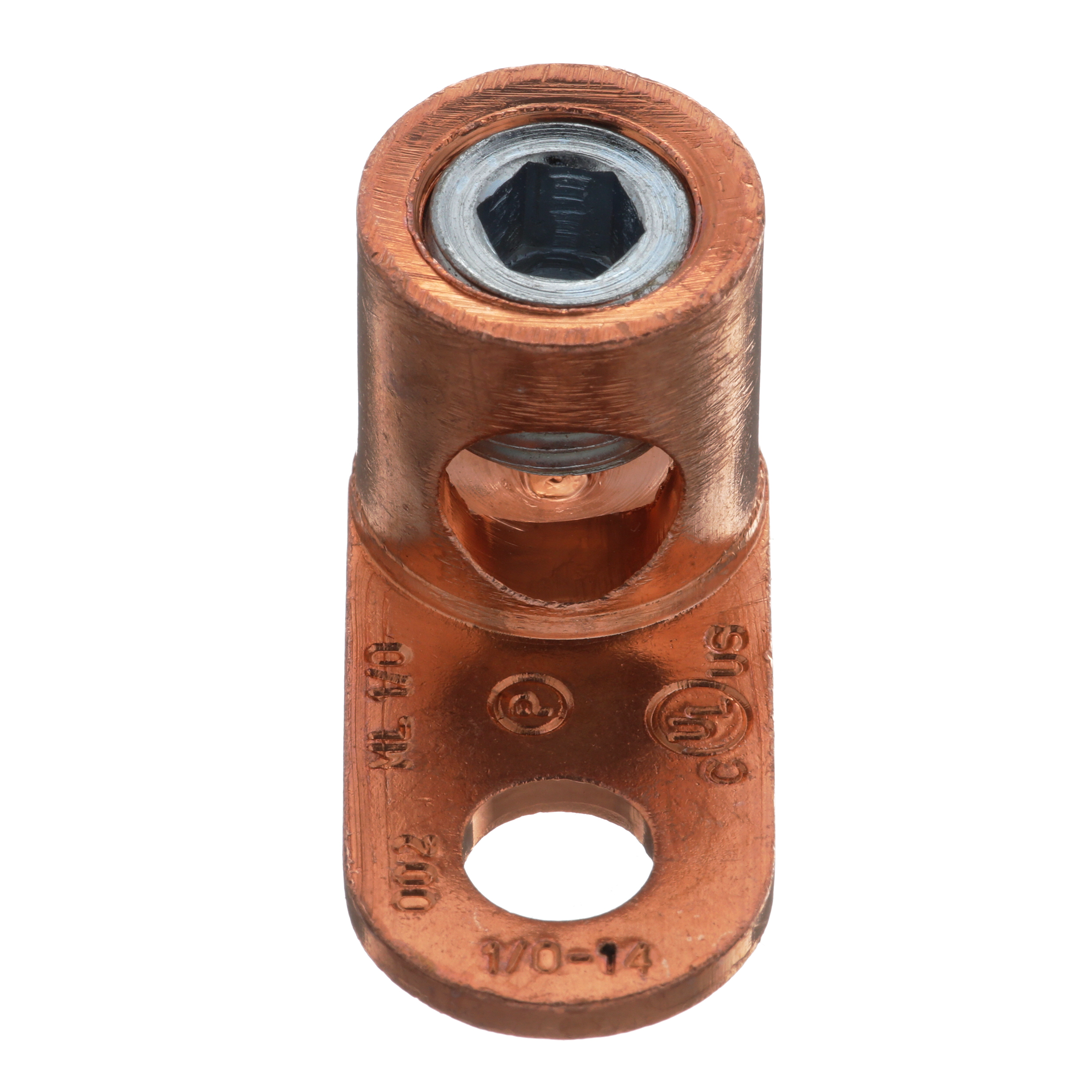

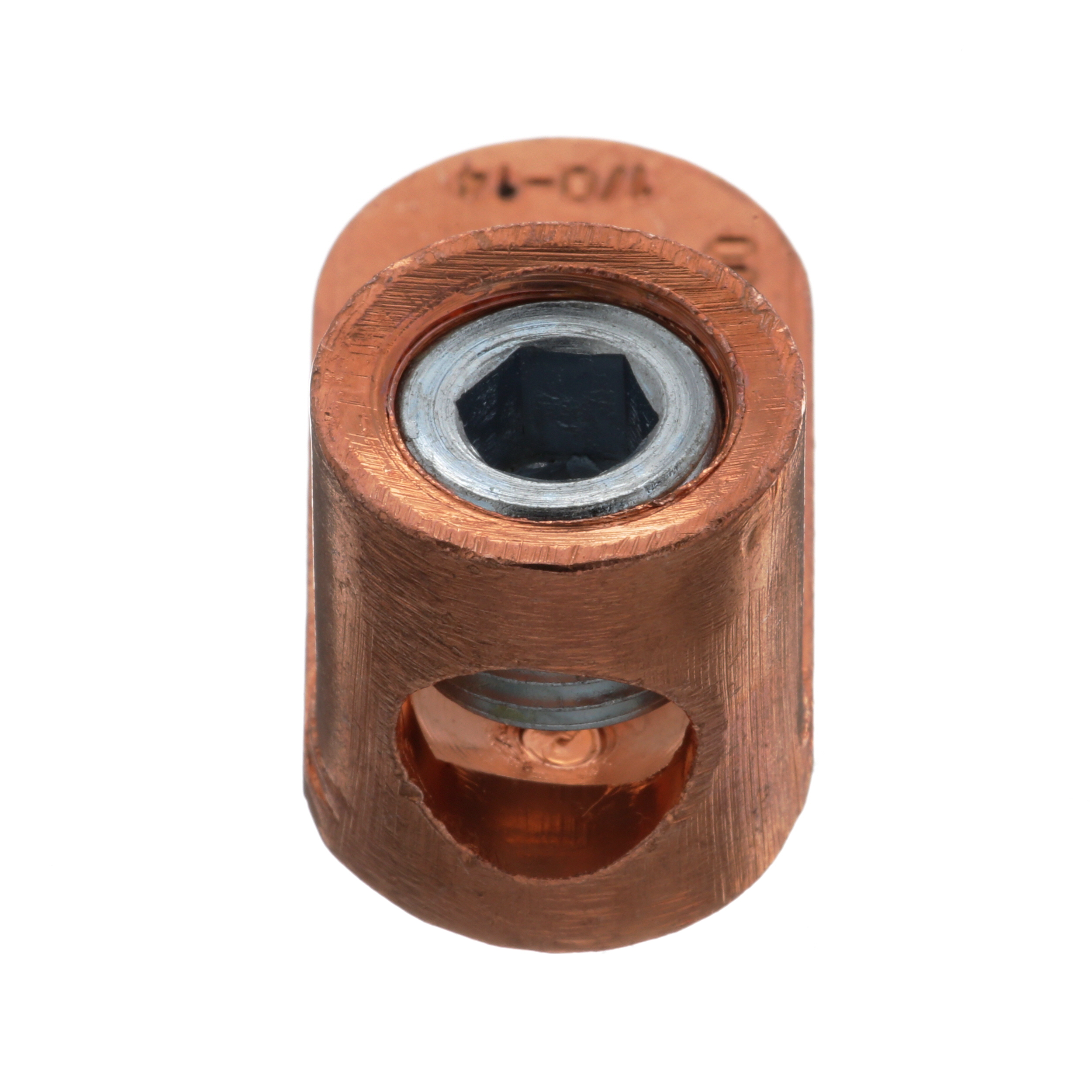

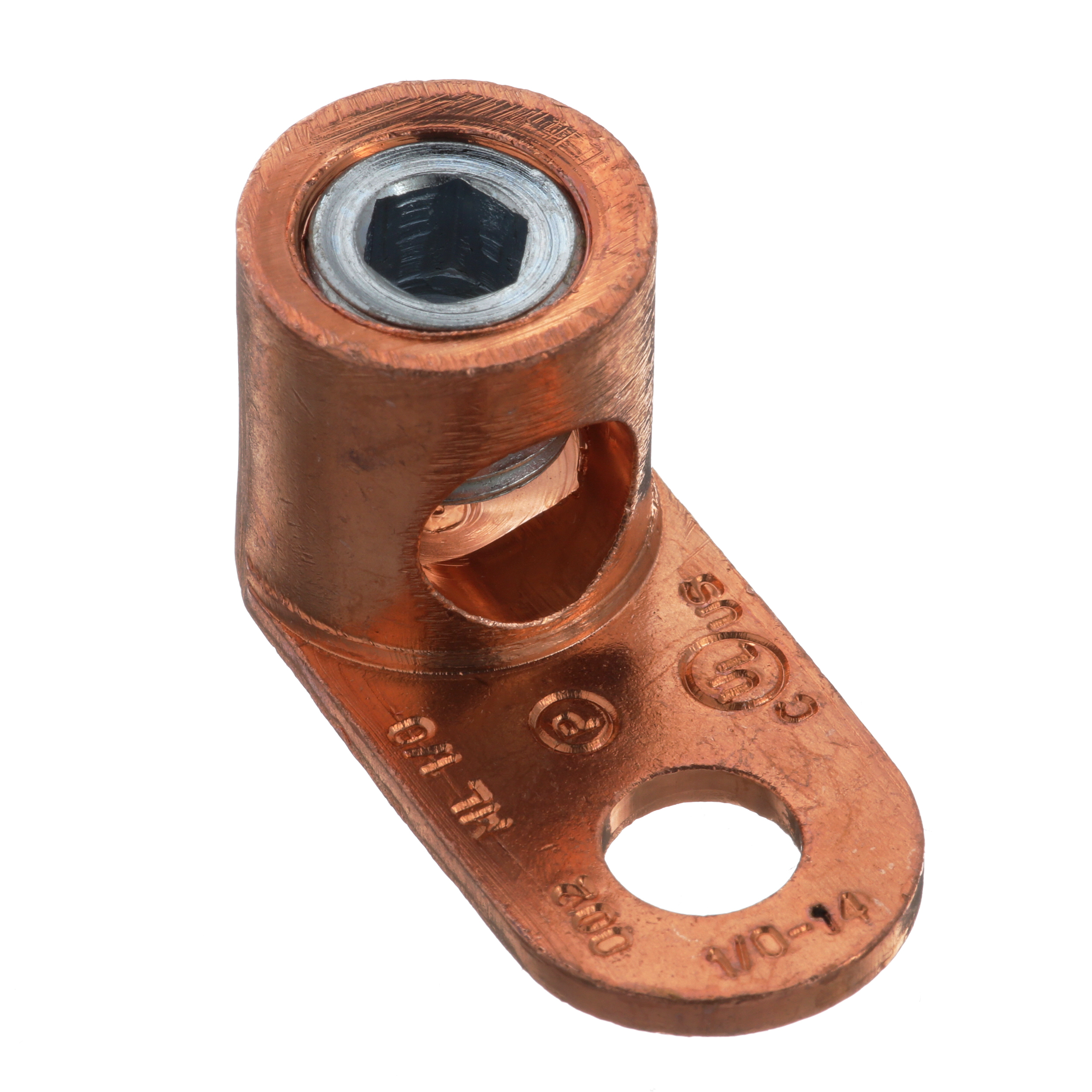

The ML1/0-LY Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and Lug. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Material
Copper
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.73 in
Type
Mechanical Lug

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983596249
GTIN
00074983596249
Product UPC
07498359624

Dimensions

Height
0.79 in
Overall Length
1.57 in
Width
0.73 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
India
