H2X4LG6 Hinged Cover Wide Slot Duct, Lt Gray, PVC, 2"x 4"

Manufacturer: Panduit | Catalog # H2X4LG6 | Electrozad South Part # 287969
$13.77 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

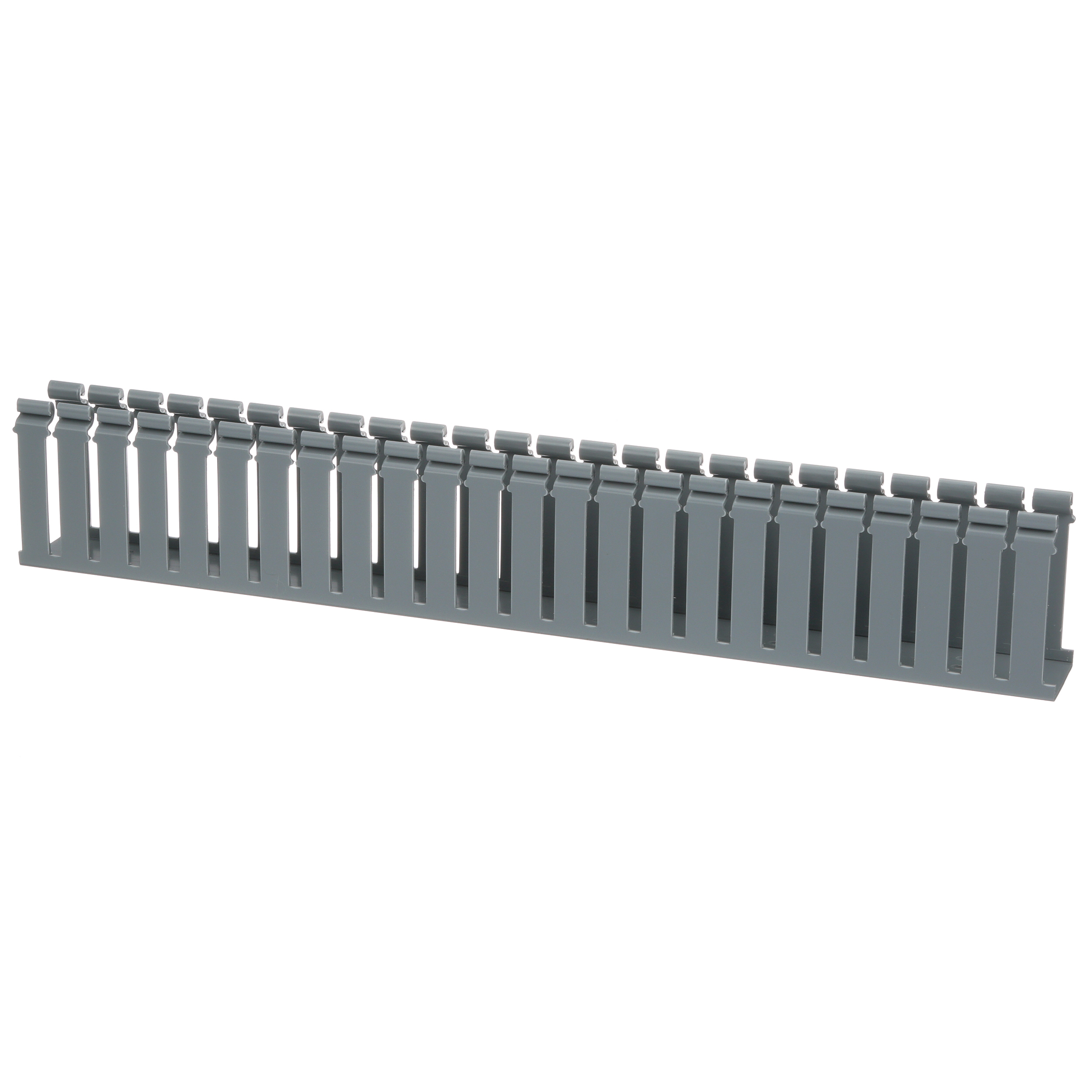

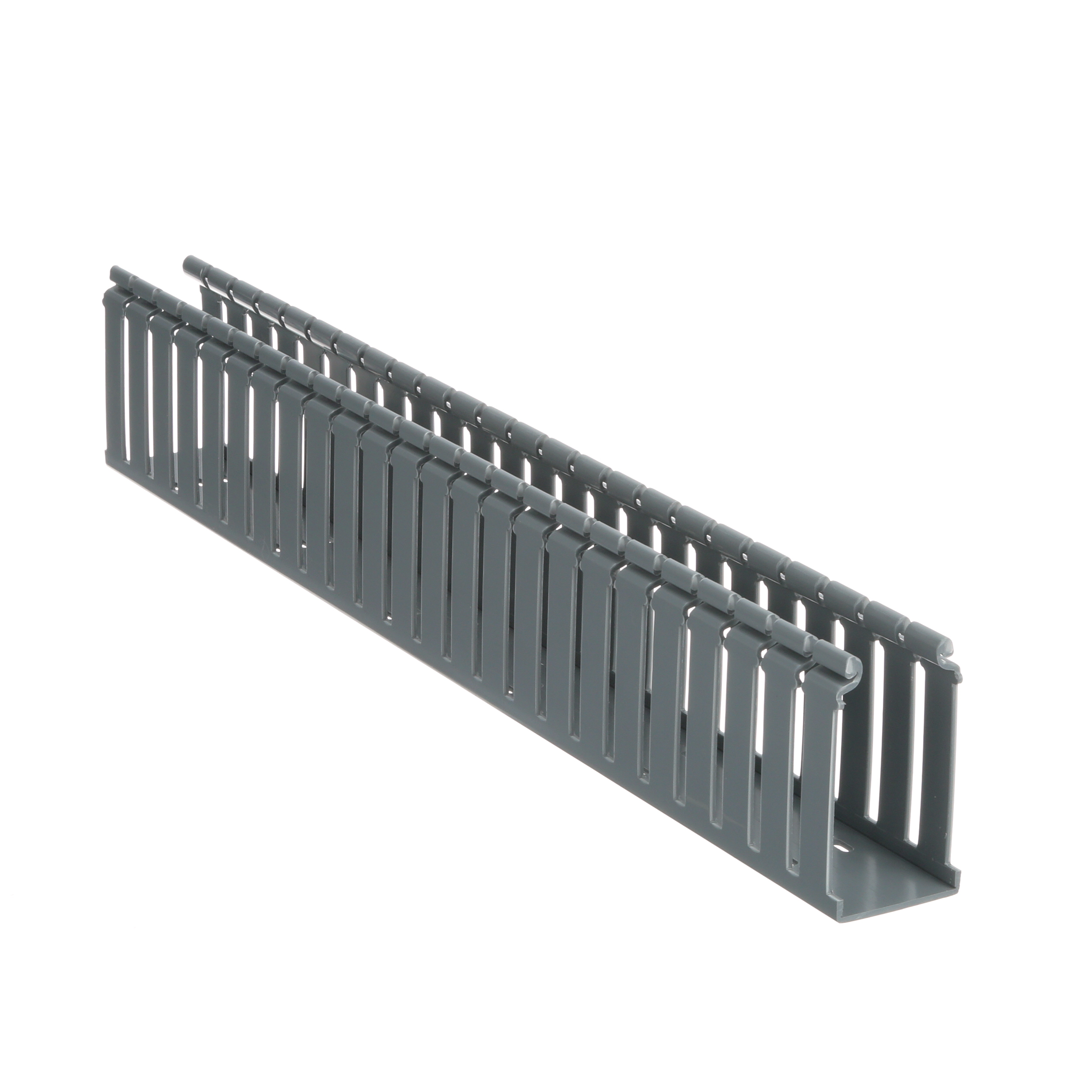

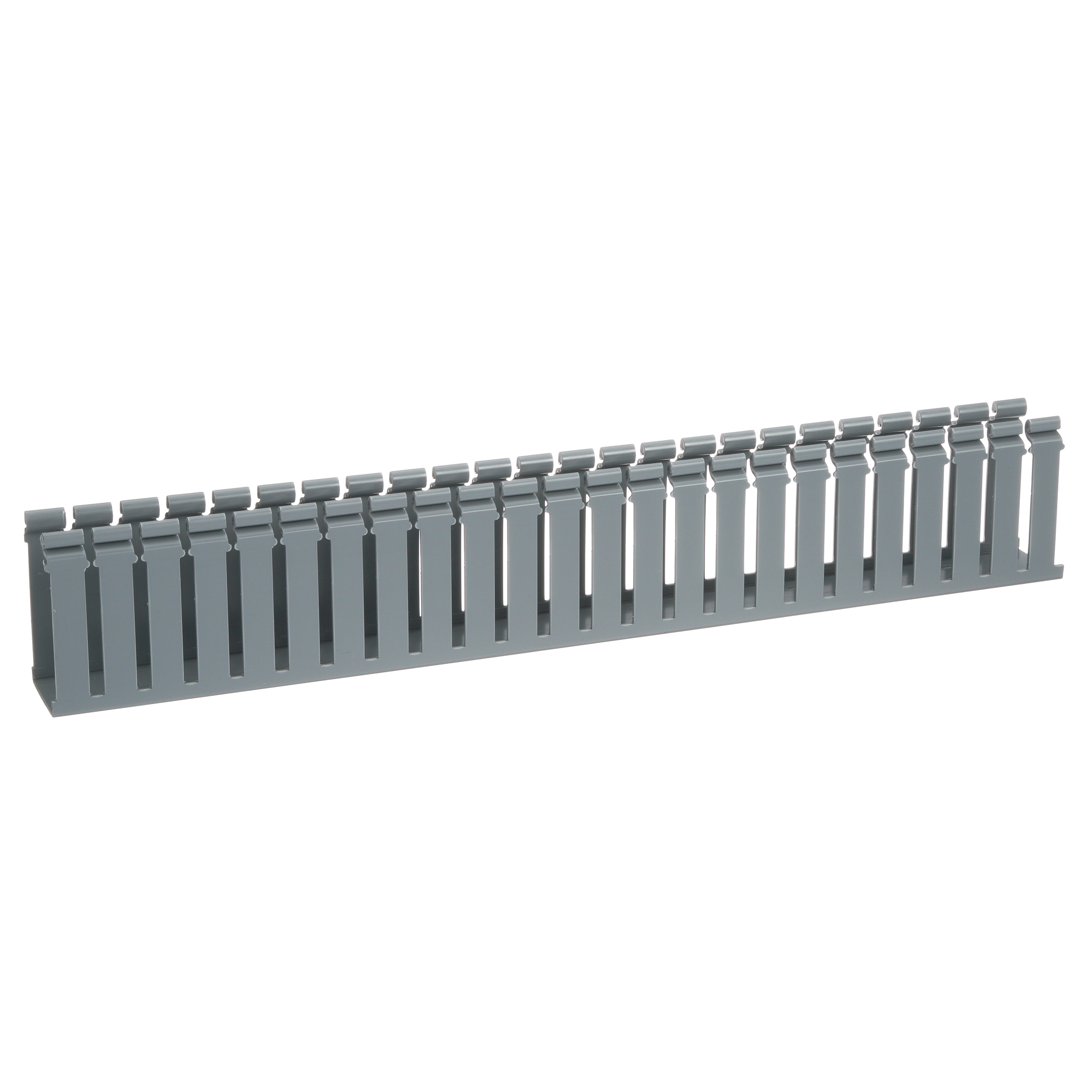

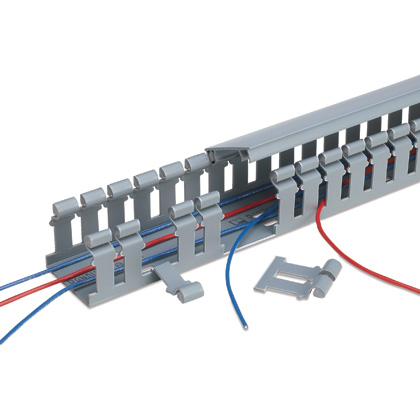

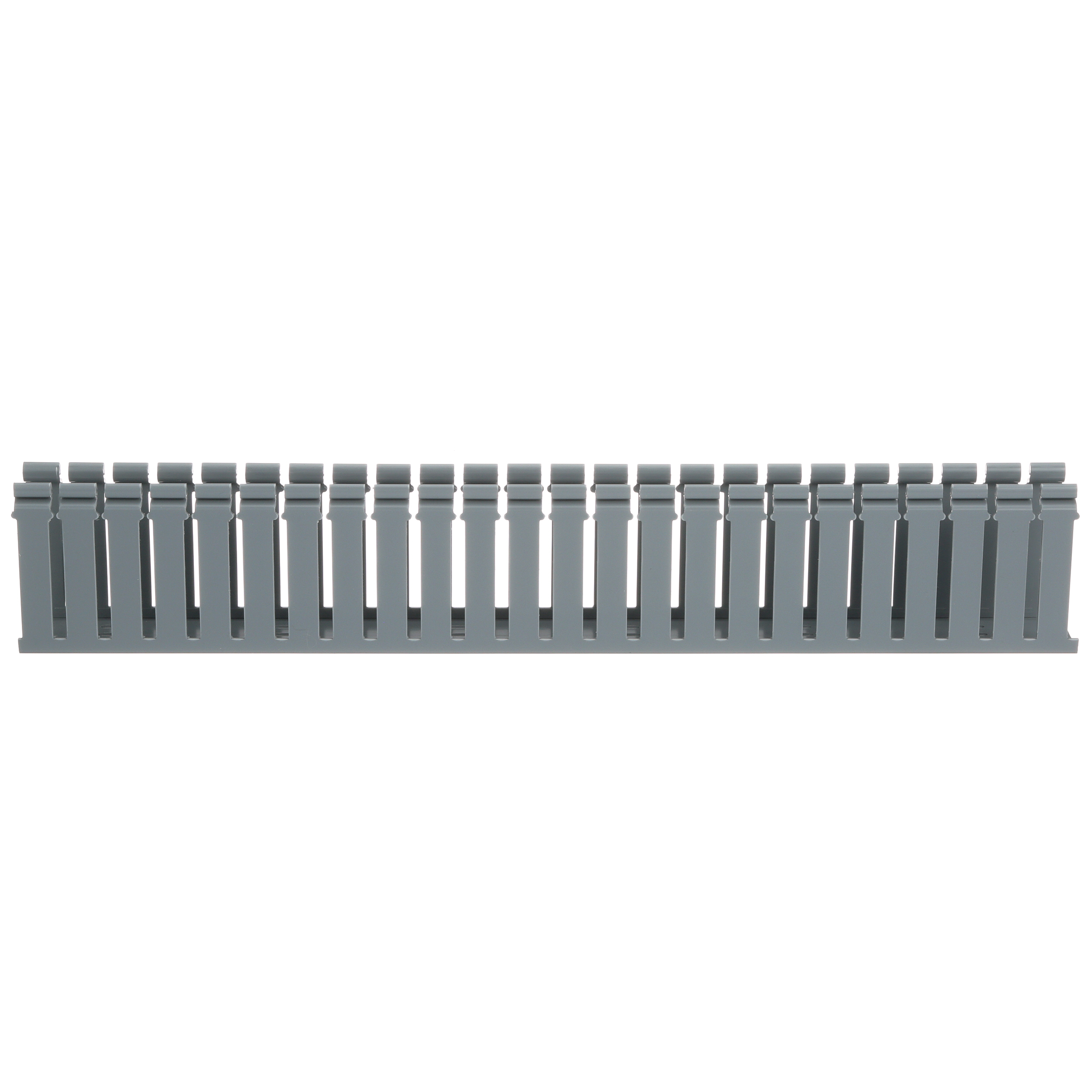

The H2X4LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-Free PVC. 4" x 2.17" (101.6mm x 55.1mm) and 6' (1.83m) long. Cover sold separately. Light Gray.

Technical Information

Applications
Hinged Cover Wide Slot Wiring Duct
Material
PVC
Mounting Type
Mounting Holes
Size
55.1 x 104.1 mm
TC Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983582396
Color
Gray
GTIN
00074983582396
Product UPC
07498358239

Dimensions

Height
4.1 in
Length
6 ft
Overall Length
6 ft
Thickness
0.1 IN
Width
2.17 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
