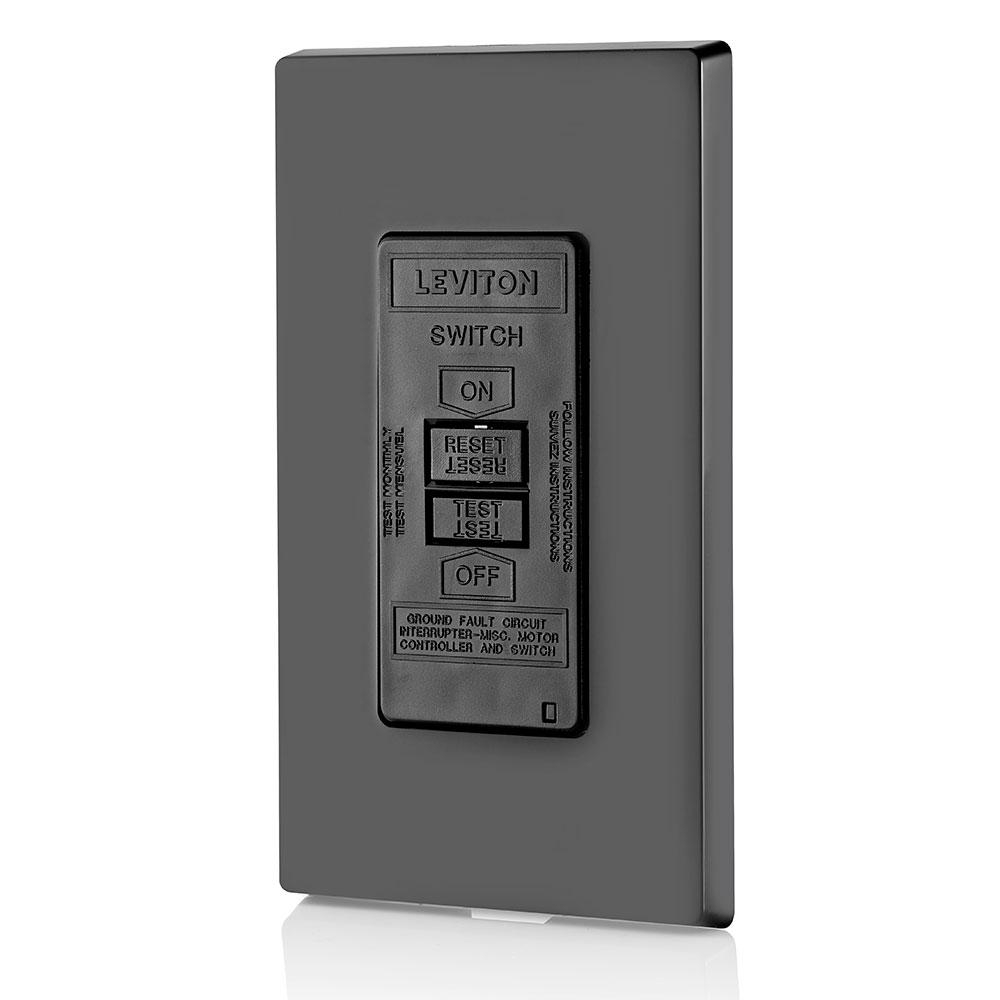

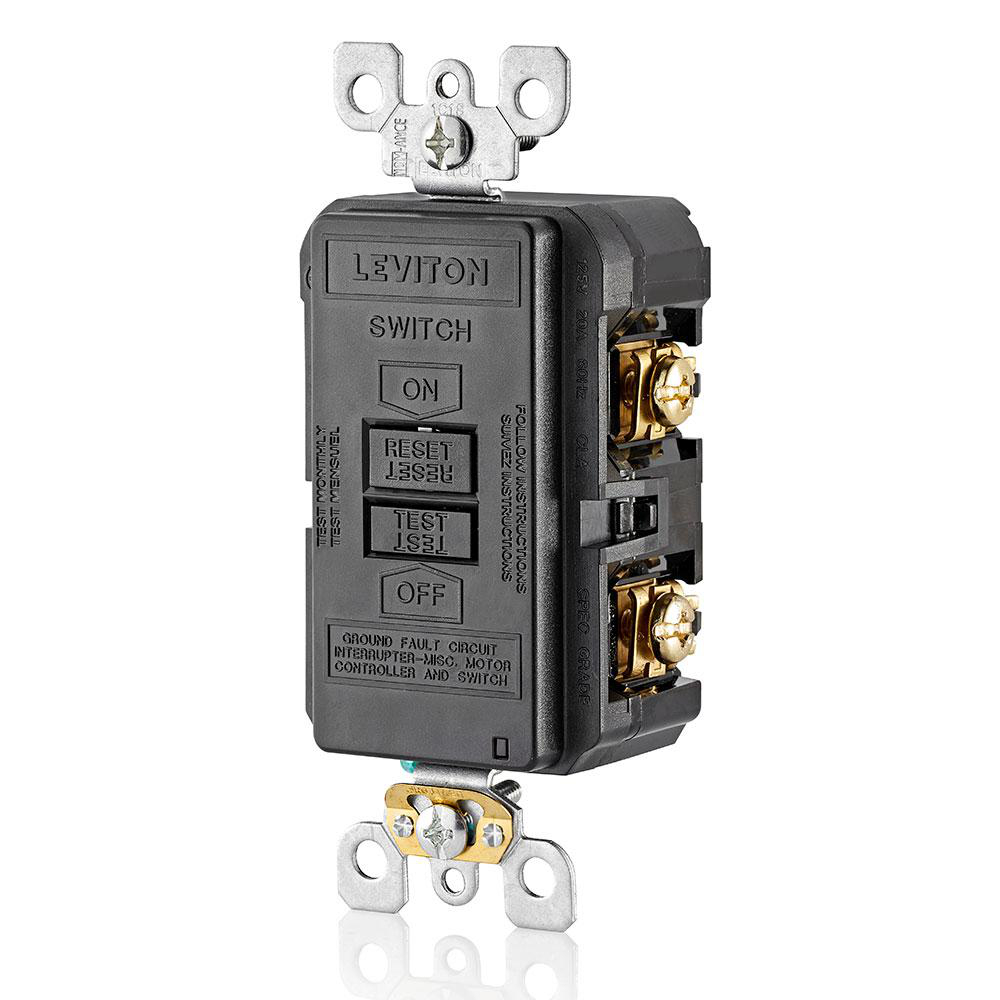

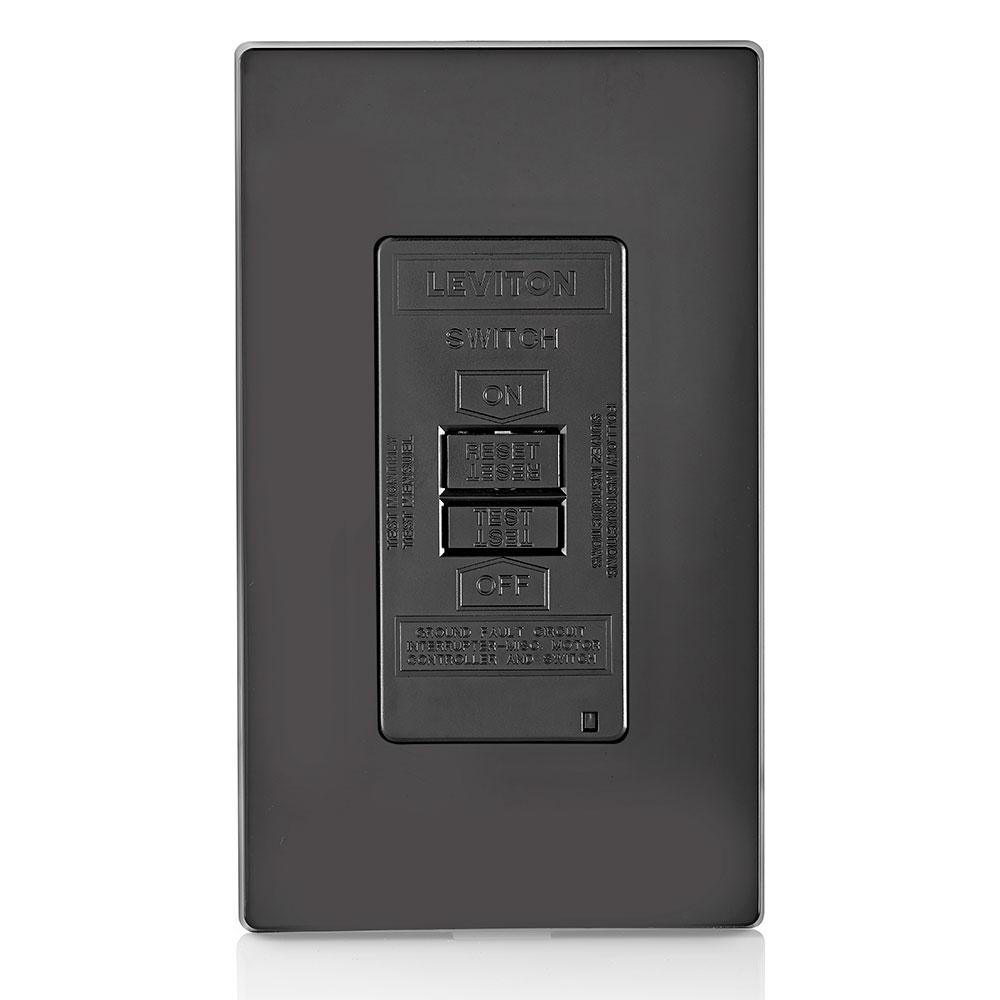

20 Amp, Self Test, Blank Face GFCI with LED Indicator Light

Manufacturer: Leviton Manufacturing | Catalog # GFRBF-XE | Electrozad South Part # 283238
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet, Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately. Self-Grounding Clip Included ... Black

Technical Information

Amperage
20 A
Applications
Commercial/Industrial
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Grade
Commercial,Residential
Grounding
Self-Grounding
Horsepower
1 hp
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Trip Type
Spring
Type
Blank Face,Blank Face
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
GFCI RECEPTACLES

General Product Info

12-Digit UPC
078477714546
Color
Black
GTIN
00078477714546
Product UPC
07847771454

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
