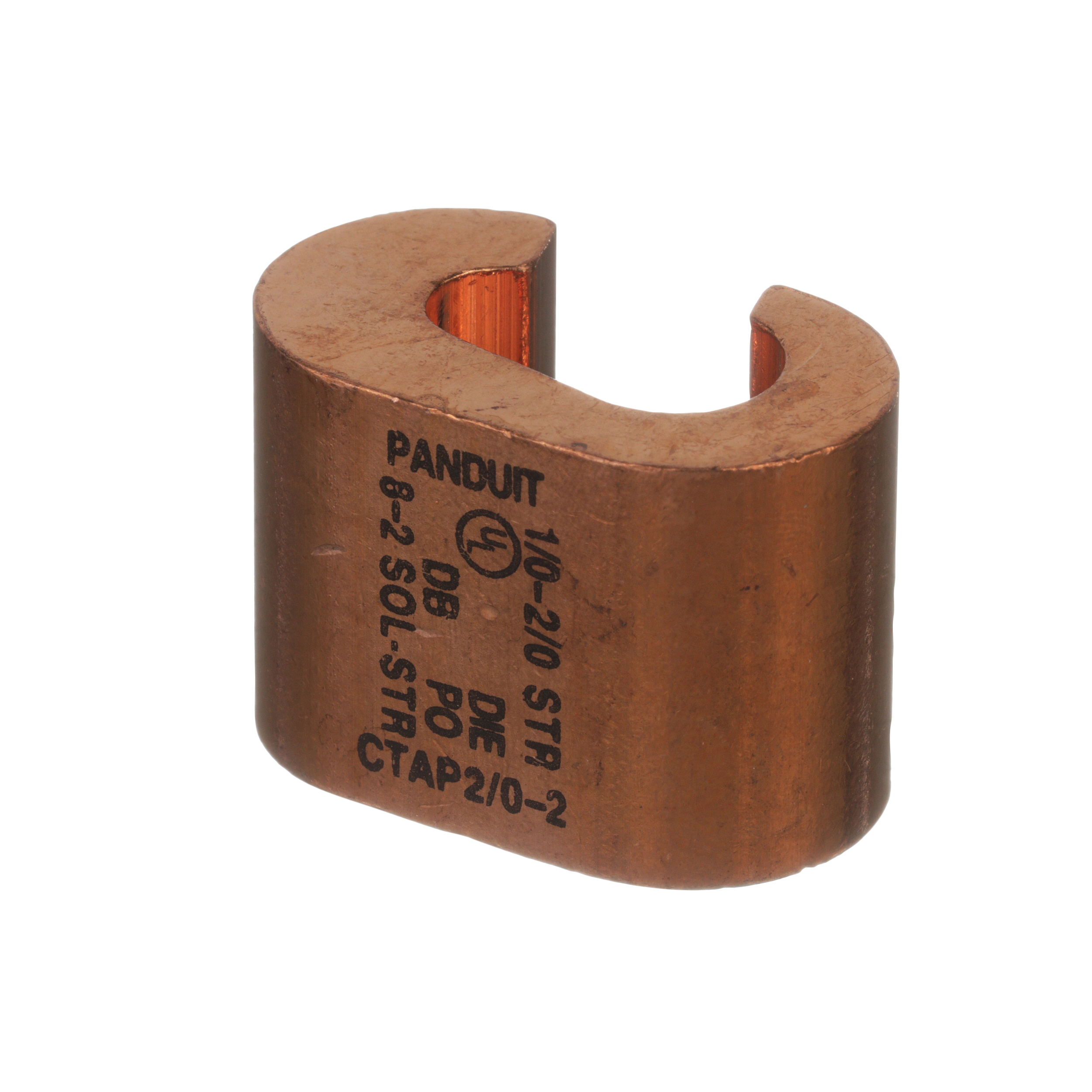

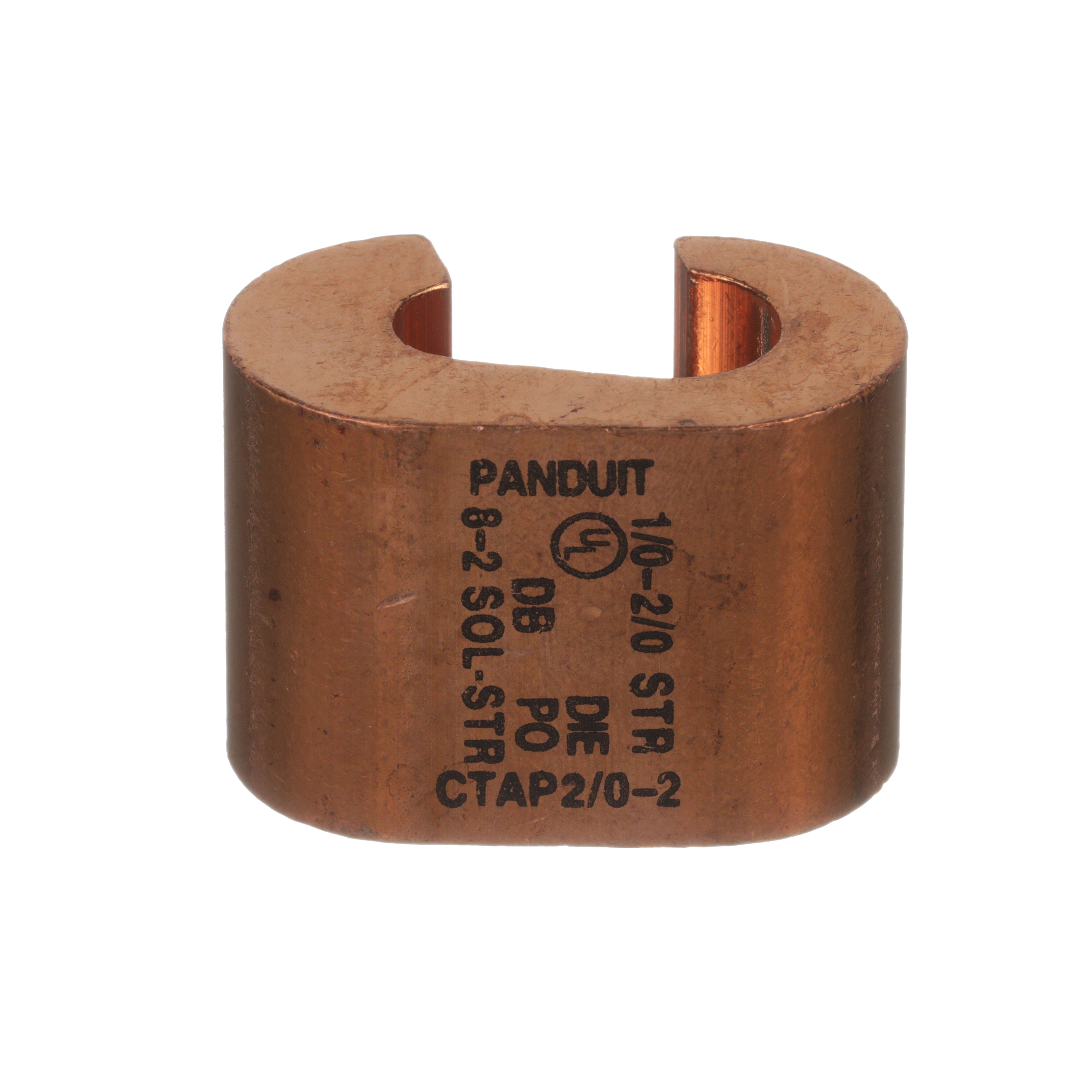

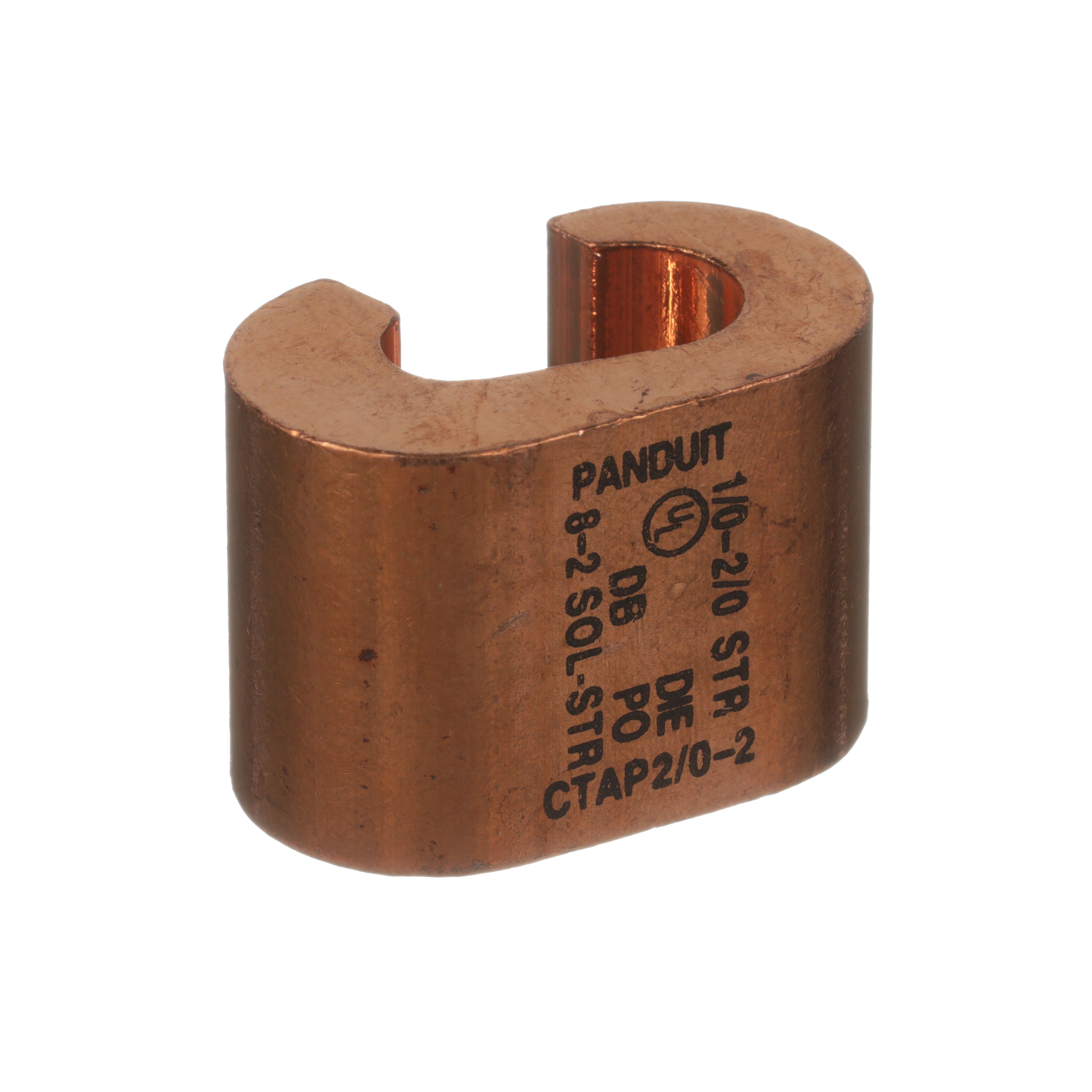

Tap compression C-type 1/0-2/0 & 8-2AWG stranded/solid copper

Manufacturer: Panduit | Catalog # CTAP2/0-2-X | Electrozad South Part # 272199

$2,975.27 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
C-type compression tap. 1/0 to 2/0 stranded and 2 to 8 solid AWG conductor size. Copper material. For tapping into unbroken continuous main, as a wire joint or two-way splice. Wide wire range taking capability minimizes inventory requirements. Made from heavy wall, extruded, high conductivity copper; provides high strength and premium electrical properties. UL listed per UL 486 for use up to 35 kV and temperature rated 90..C when crimped with specified competitor crimping tools and dies. UL listed per UL 467 for grounding and bonding suitable for direct burial in earth or concrete when crimped with and specified competitor crimping tools and dies.

Technical Information

Applications
Utility/Ground Grid
Conductor Size
1/0 - 2/0 AWG STR
Material
Copper
Mounting Type
Direct Burial
Tap Size
#8 - #2 AWG SOL or STR
Type
Compression Tap

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983821303
Color
Copper
GTIN
00074983821303
Product UPC
07498382130

Dimensions

Height
1.32 in
Length
0.8 In.
Overall Length
0.8 in
Width
0.93 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
