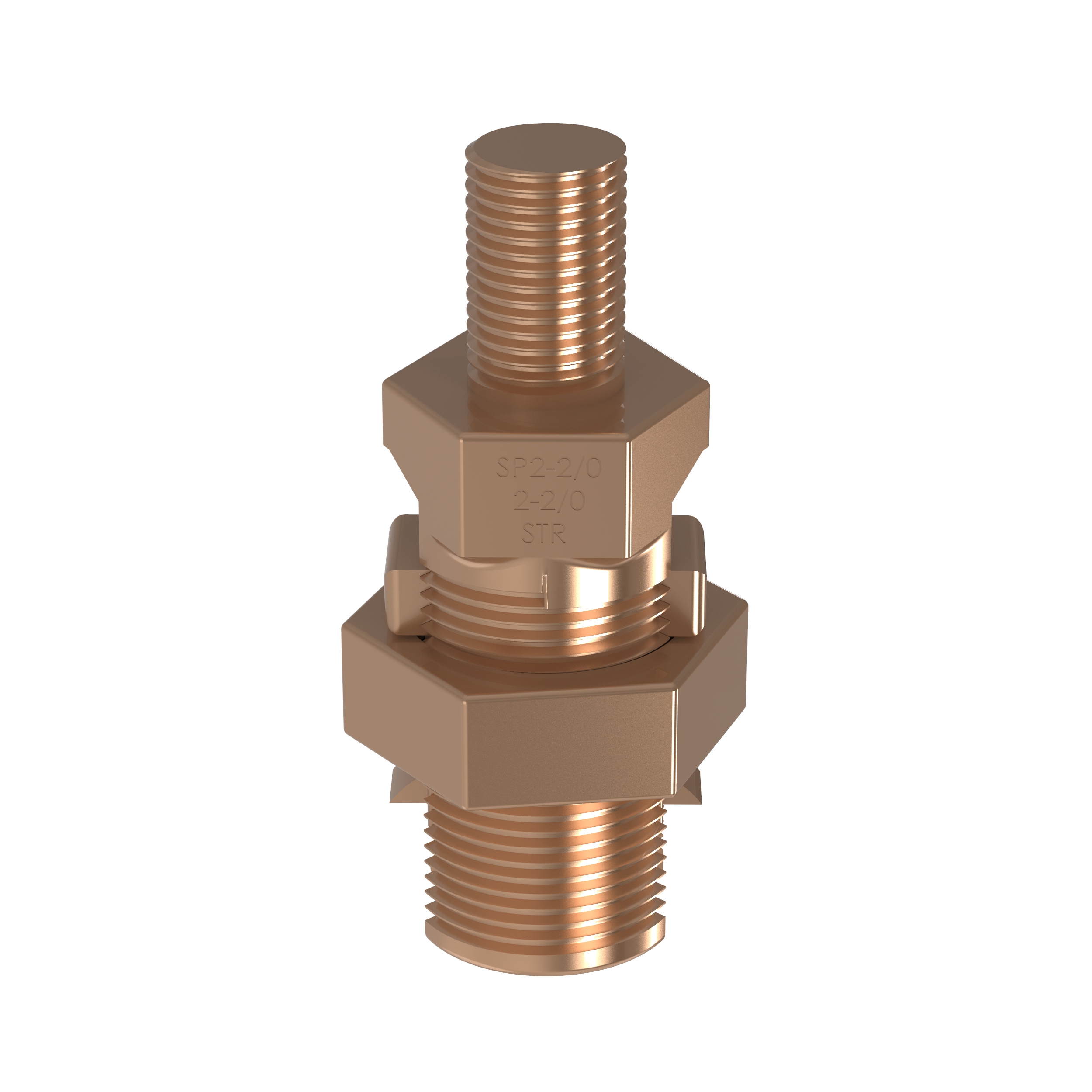

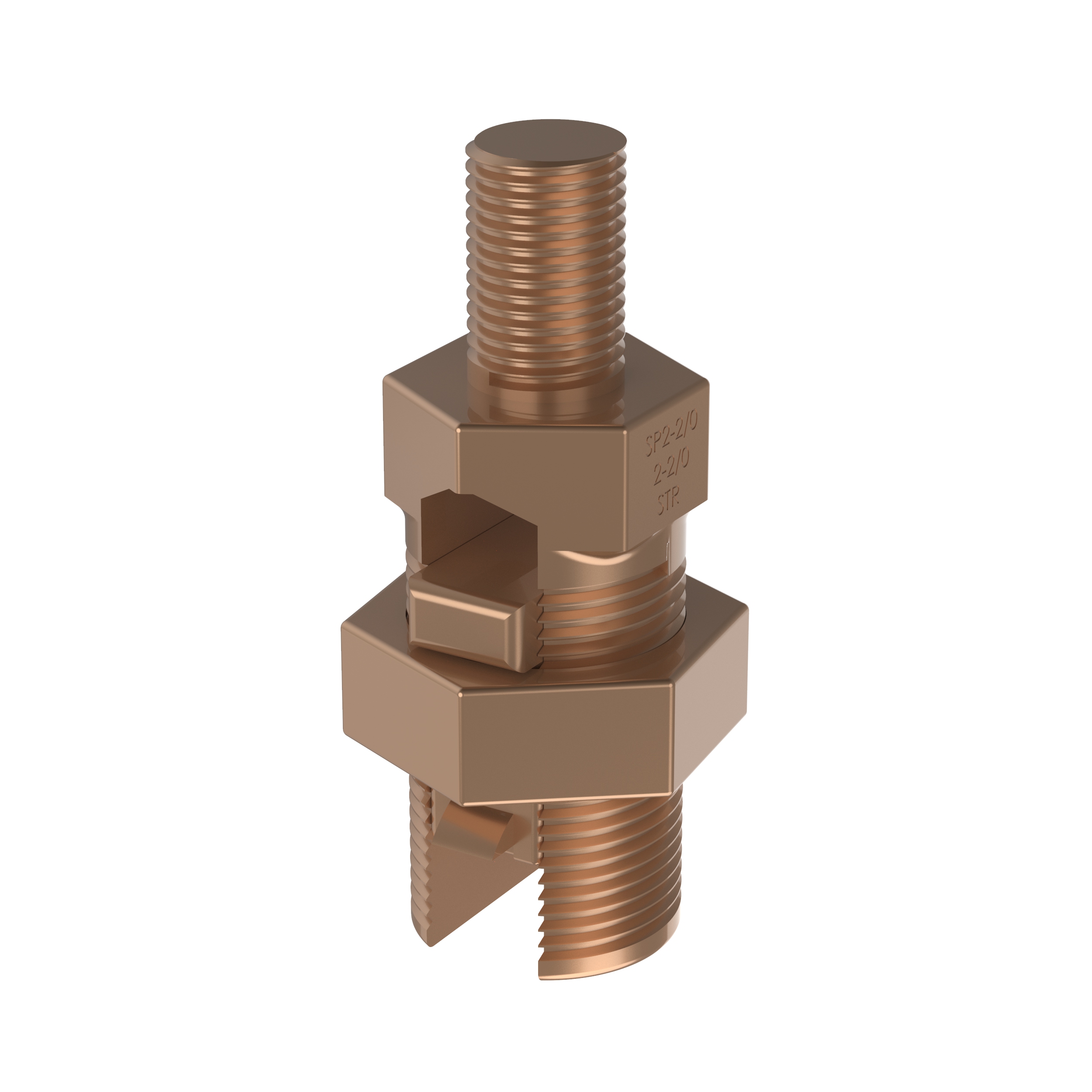

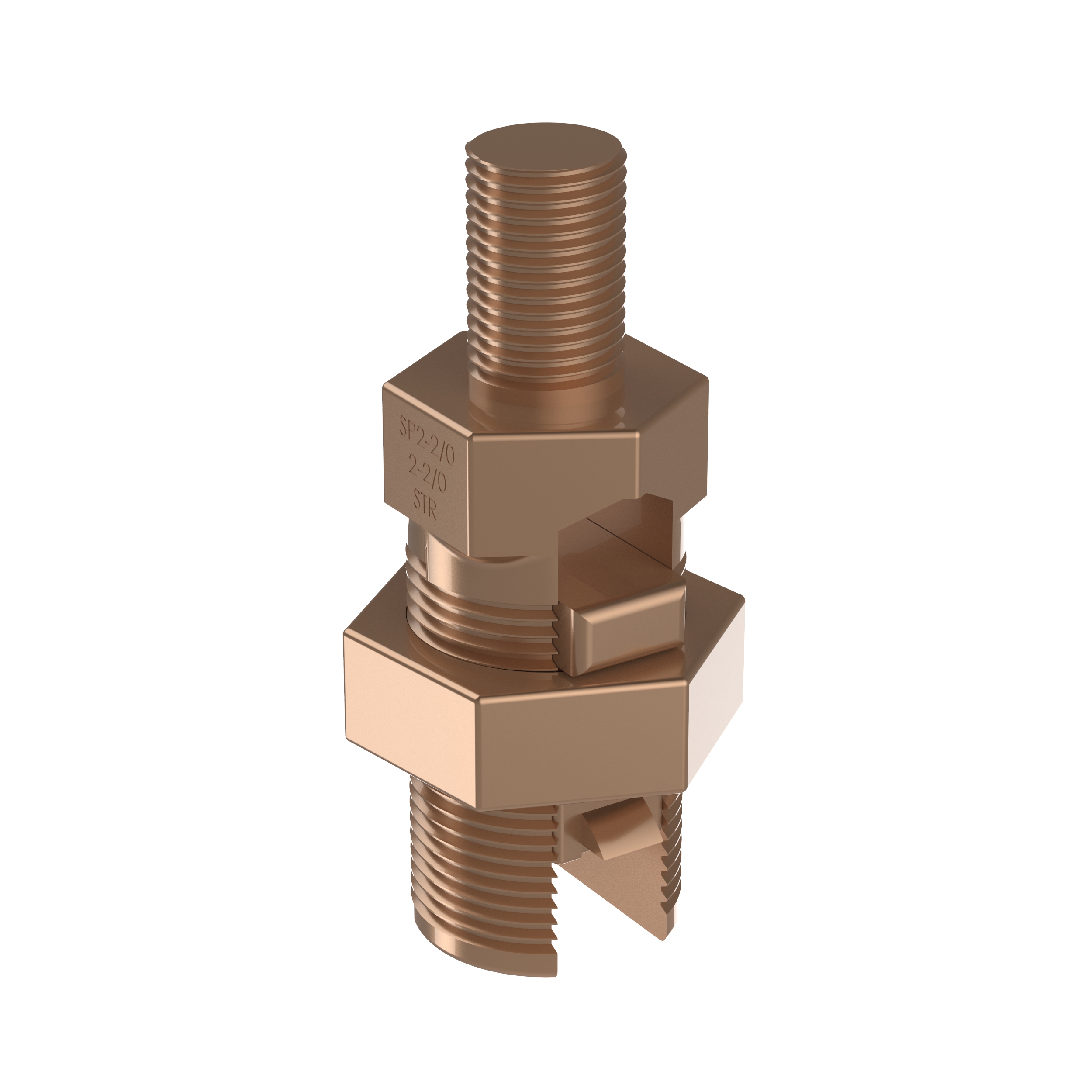

Product image for StructuredGround™ SP2-2/0-Q Grd Con-Service Post, Male Stud, Two-Conductors,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

To:
CC:

StructuredGround™ SP2-2/0-Q Grd Con-Service Post, Male Stud, Two-Conductors,

Manufacturer: Panduit | Catalog # SP2-2/0-Q | Electrozad South Part # 271338

$13,497.68 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The SP2-2/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.

Technical Information

Applications
Utility/Ground Grid
Material
Copper
TC Connection
Connecting Conductors to Various Sizes of Tapped Hole
Type
Grounding Connector

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983716708
GTIN
00074983716708
Product UPC
07498371670

Dimensions

Height
1.88 in
Length
1.88 in
Overall Length
1.88 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
