Panduct® MC25X25IG2 Base/Cover

Manufacturer: Panduit | Catalog # MC25X25IG2 | Electrozad South Part # 26255
$23.28 /ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

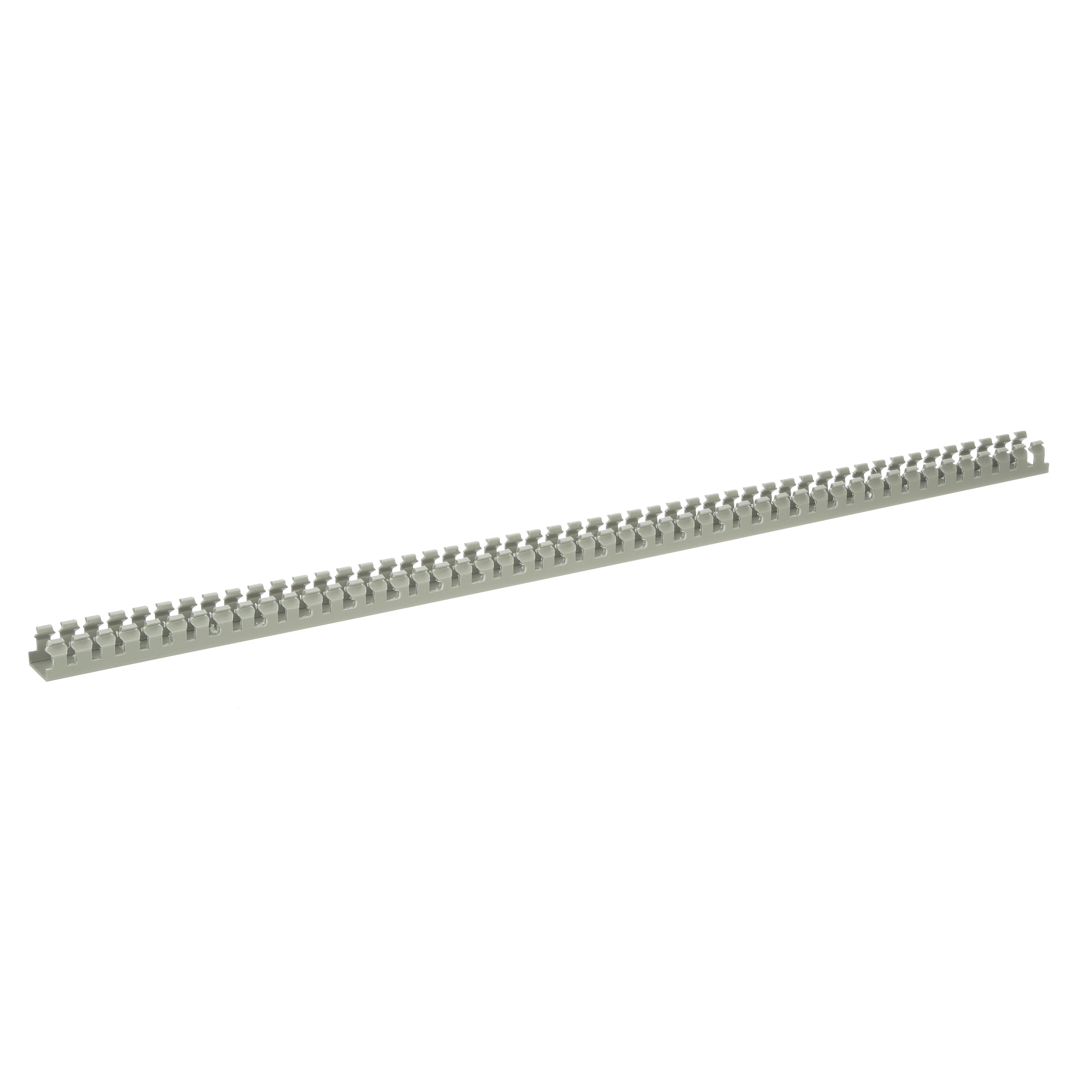

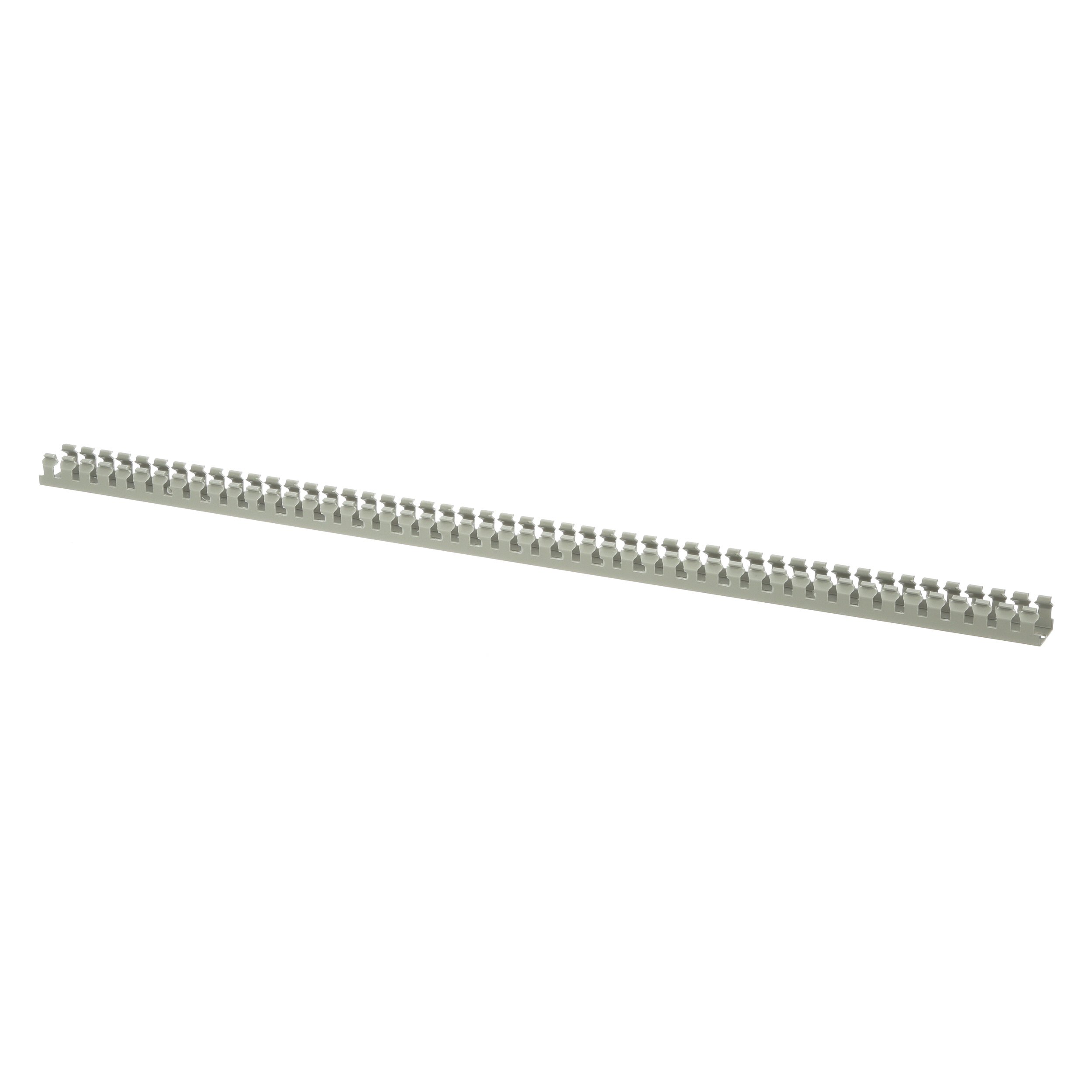

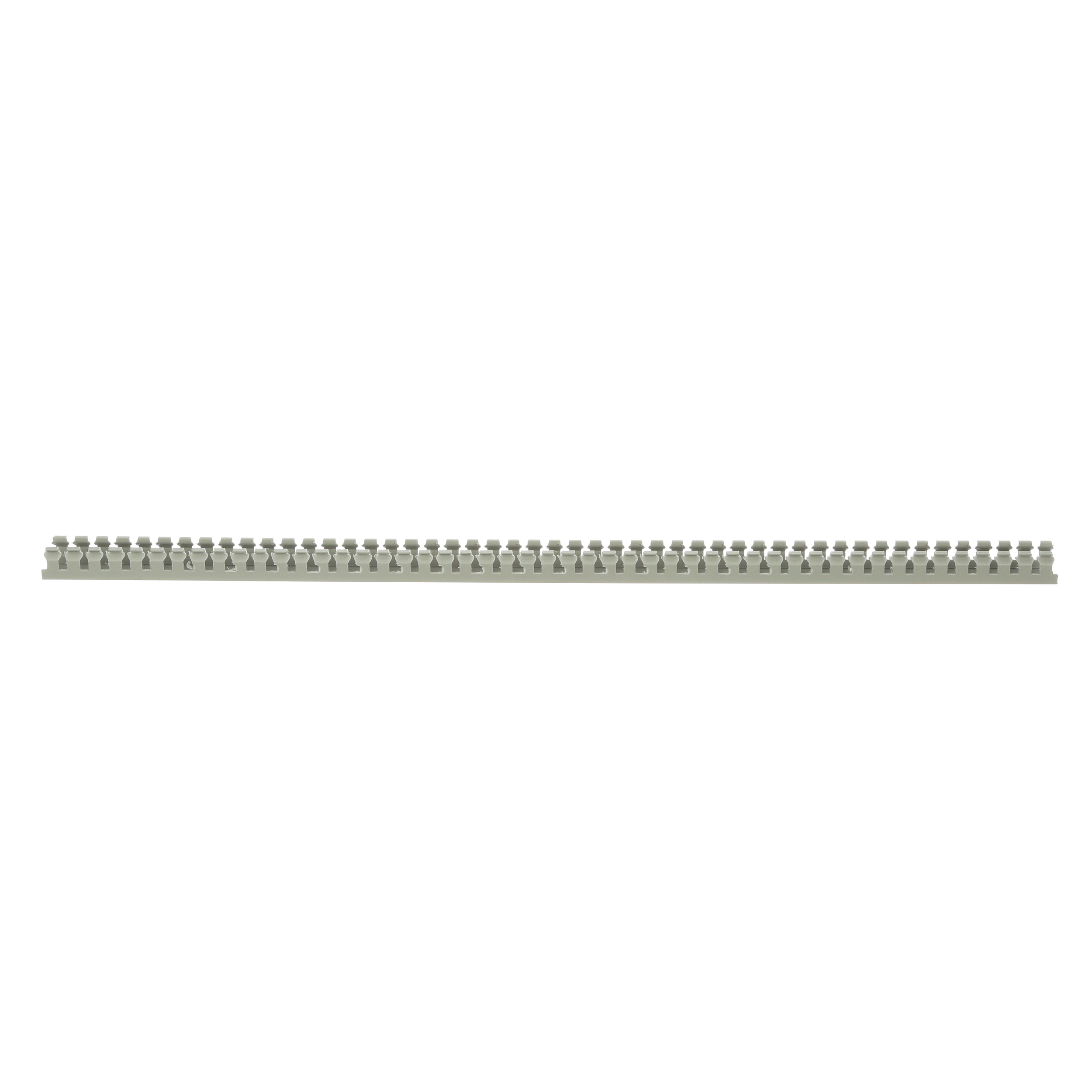

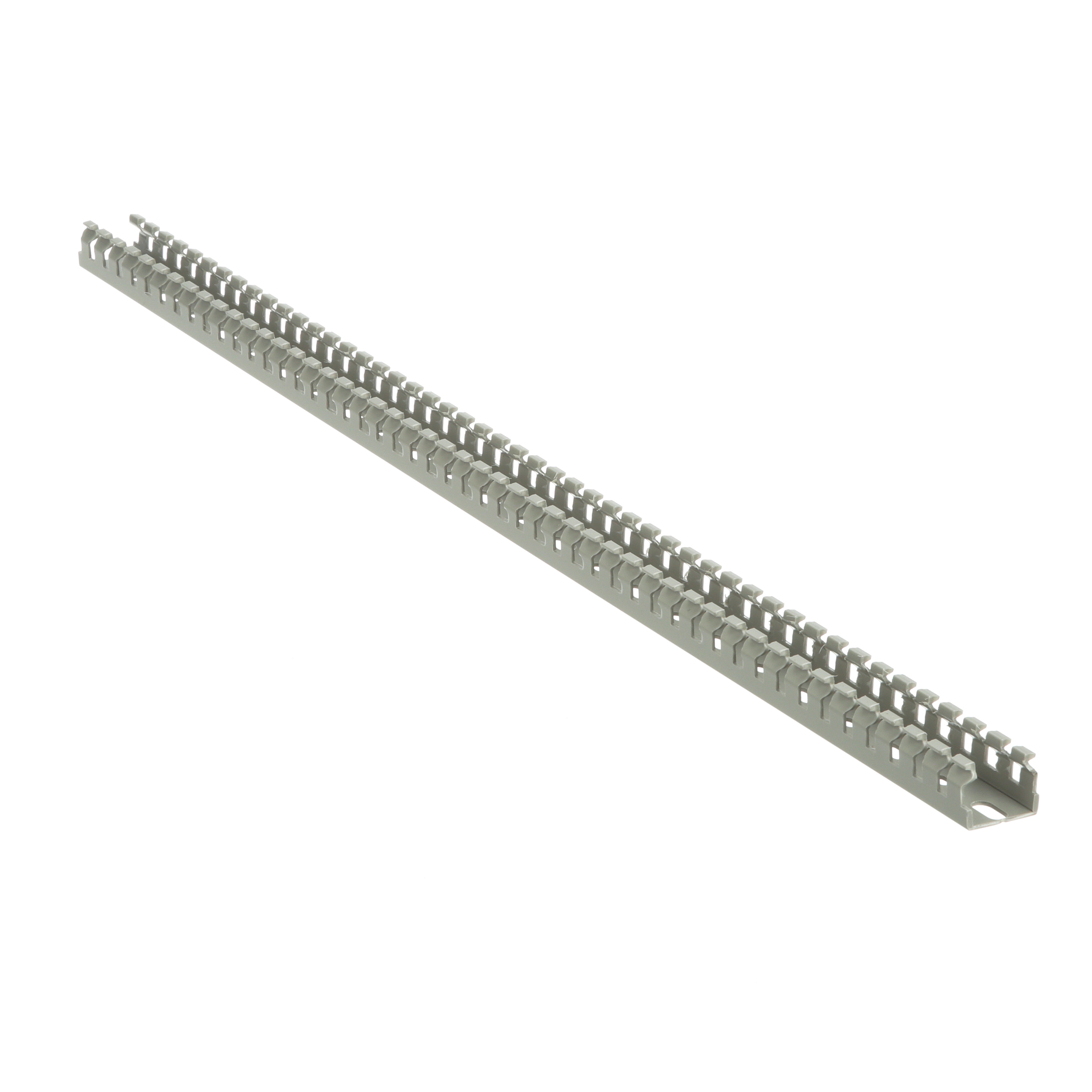

The MC25X25IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 23.6 mm (0.97" x 0.93"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
DIN Standard Mounting Holes
Size
0.97 x 0.93 IN
TC Connection
DIN Mounting Holes
Type
Wiring Duct Base With Cover

Packaging

Package Qty
2

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983742905
Color
Gray
GTIN
00074983742905
Product UPC
07498374290
UNSPSC
39131712

Dimensions

Height
0.93 in
Length
78.74 In.
Overall Length
6.6 ft
Width
0.97 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
