WHITE BAFFLE, TORSION SPRING

Manufacturer: Lithonia Lighting | Catalog # 7B2W TOR R24 | Electrozad South Part # 258633
$7.31 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet

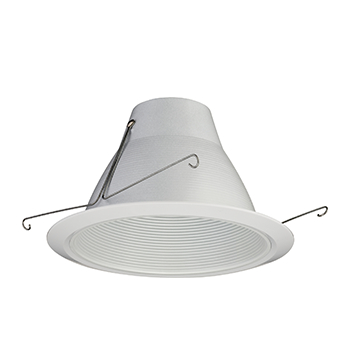

White baffle, Torsion spring

Technical Information

Aperture Size
6 in
Applications
Residential
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
1
Type
Trim

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
745975231416
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
GTIN
00745975231416
Product UPC
74597523141
Shape
Round

Dimensions

Height
10 in
Length
16.25 in
Warranty Length
1 yr
Width
8.75 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • Manufacturer limited warranty
  • Trim retention is achieved by utilizing two side-mounted torsion springs on the trim and two receiving brackets in the can, ensuring a consistently tight fit with the ceiling
  • Aluminum one piece reflector
  • Compatible housings: L7XF, L7XF MVOLT, L7XFR, L7X, LC6, L7XR
  • Use with downlight housing for finished look
  • Maximum lamp rating incandescent 75 PAR30, 65 BR30 and Fluorescent 13DTT, 26TRT
  • Damp location
  • Not applicable to have emergency or battery backup
  • Height: 6 in. (15.2), Lamp opening: 5.875 in. (14.9), Diameter: 7.625 in. (19.4)
  • UL Listed to U.S. and Canadian safety standards
