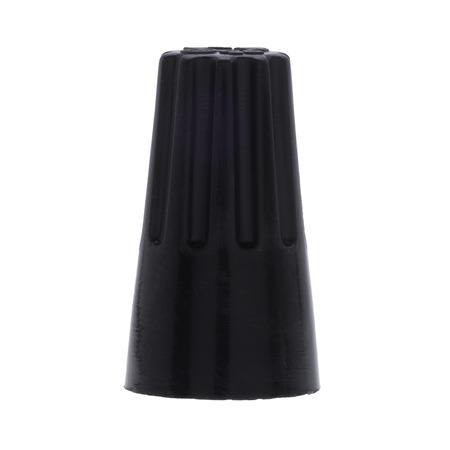

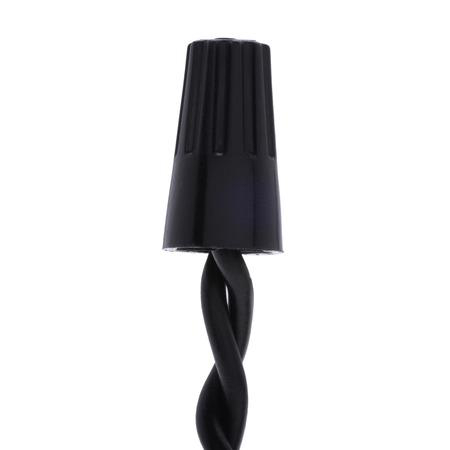

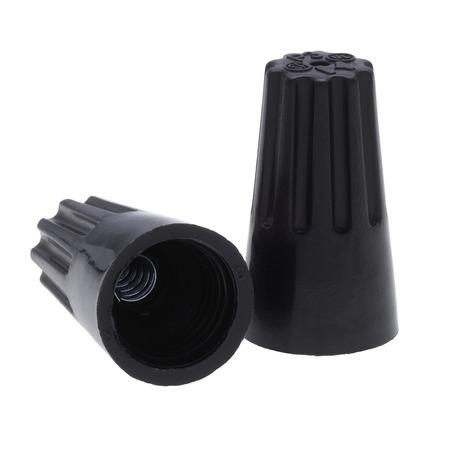

HI-TEMP BLACK EASY TWIST, 600 VOLT, 22-14 AWG - BAG OF 500

Manufacturer: NSi Industries Canada | Catalog # WC-HB3-B | Electrozad South Part # 258501
$132.31 /m (1000 pc)
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
Hi-Temp Black Easy-Twist™, 600 Volt, 22-14 AWG - Bag of 500

Technical Information

Applications
Splicing Wire
Conductor Size
22-18 AWG
Material
Thermoplastic
Number of Conductors
1
Size
H=.866 - W=.500 - ID=.197
Standard
UL486C Listed
Temperature Rating
150 degrees C
Type
High Temperature Wire Connectors
Voltage
600 V
Wire Type
CU Wire Only

Manufacturer Information

Brand
NSi
Sub Brand
Easy Twist

General Product Info

12-Digit UPC
662381141606
Color
Black
Environmental Conditions
150 C
Finish
Thermoplastic
GTIN
00662381361851
Product UPC
66238114160
Overview
  • Labor Saving Save time and effort with professional-quality connectors that install in half the time of a typical wire connector and donââ¬â¢t require pre-twisting of wires
  • Thermoplastic Shell NSI connectors have a flame-retardant UL 94V-2 thermoplastic body that delivers durable performance, electrical insulation and heat resistance
  • Conical Spring The fixed zinc-plated square spring has a precise conical shape that grips in fewer turns and can dead end a single wire
  • Ergonomic Grip Entire connector features a ribbed texture for easier twisting and a more secure gripping surface to increase your productivity
  • Compact Design Easy to install in tight areas; the extra-thick cap, deep-skirt entry and threaded funnel make these connectors more reliable and protect against flashover and shorts
