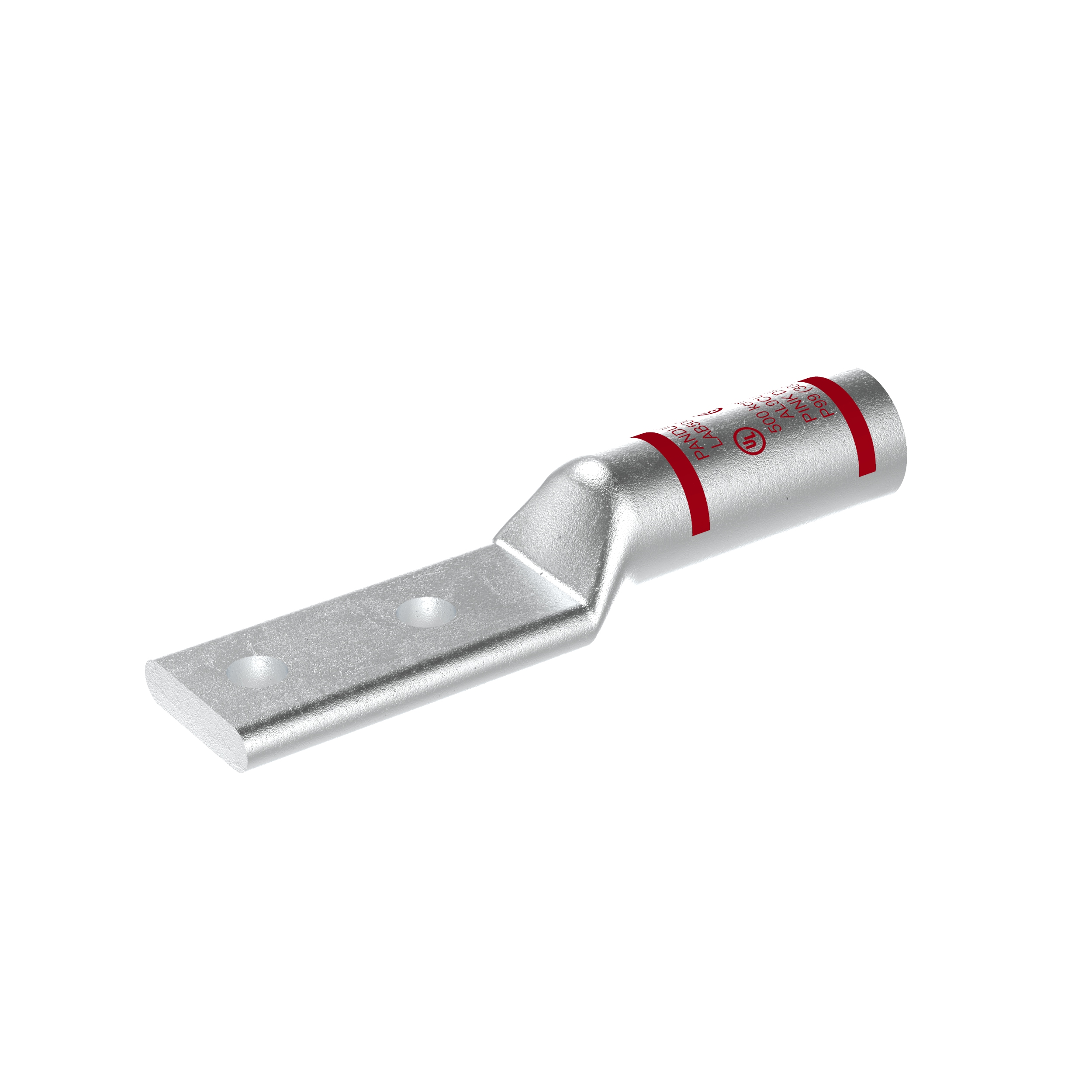

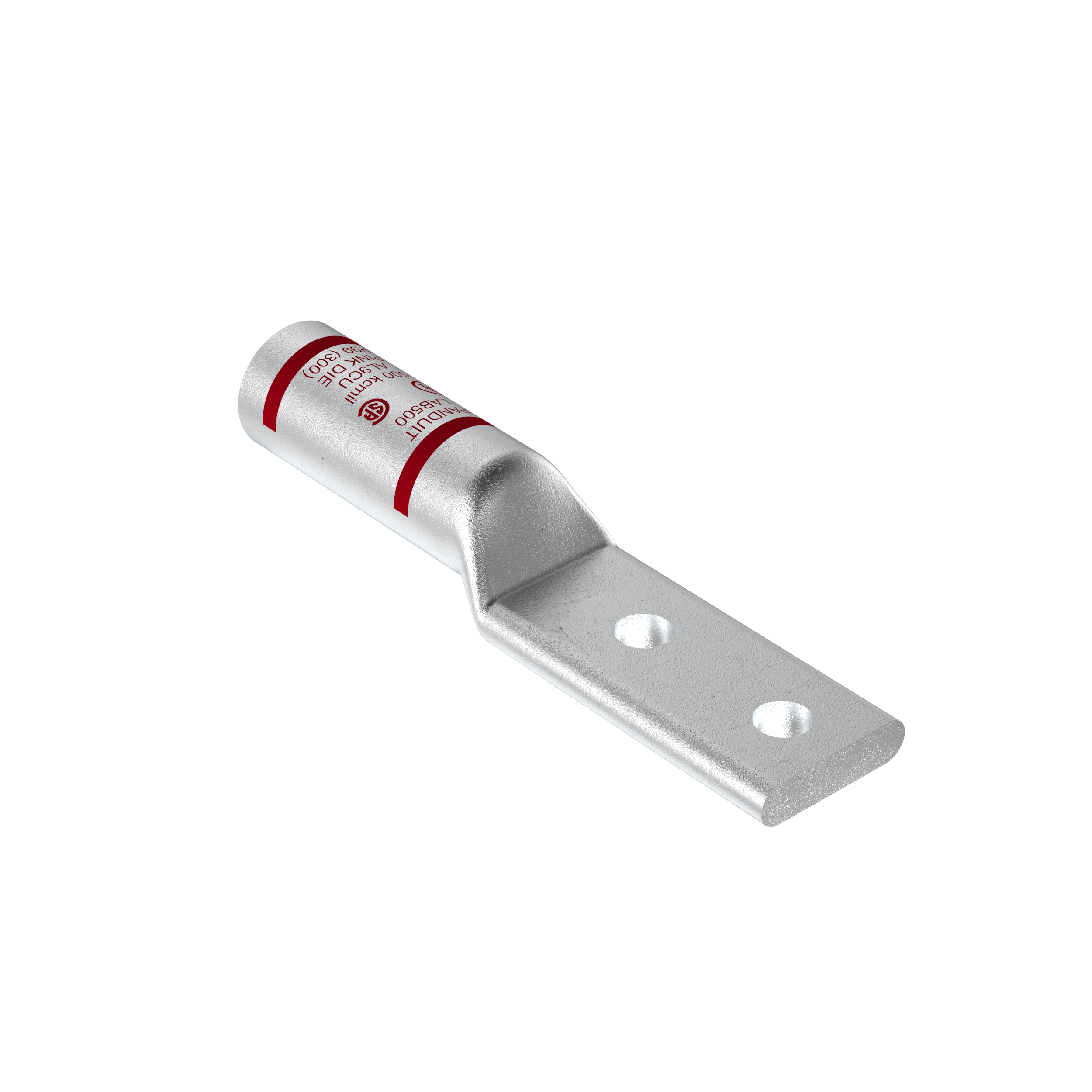

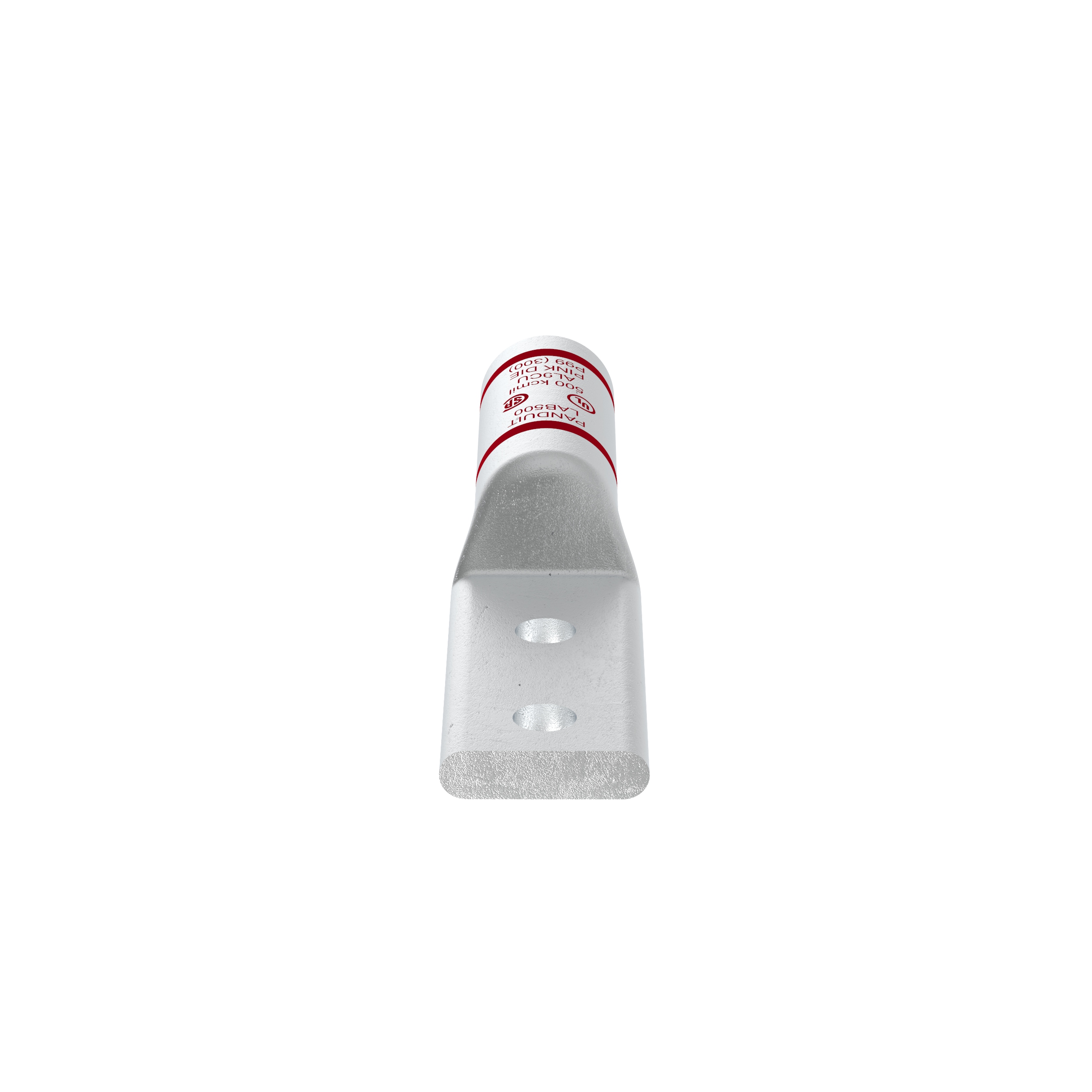

Product image for Pan-Lug™ LAB2/0-12-5 Compression Connectors - Lugs
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pan-Lug™ LAB2/0-12-5 Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LAB2/0-12-5 | Electrozad South Part # 258439
$3,897.61 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The LAB2/0-12-5 Aluminum Compression Connector Lug, two-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90..C.

Technical Information

Angle
Straight
Barrel Length
1.55 in
Base Material
Aluminum
Cable Size
AWG
Color Coding
Olive
Material
Aluminum
Number of Holes
2
Size
2/0 AWG Code
Stud Size
1/2 In.
Tongue Thickness
0.25 in
Tongue Type
Standard
Tongue Width
0.94 in
Type
Compression Lug

Packaging

Package Qty
5

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983911301
Color
Olive
GTIN
00074983911301
Product UPC
07498391130
UNSPSC
39121405

Dimensions

Overall Length
5.55 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
India
