Pan-Lug™ LCAX1-14-X Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCAX1-14-X | Electrozad South Part # 255703
$1,152.21 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

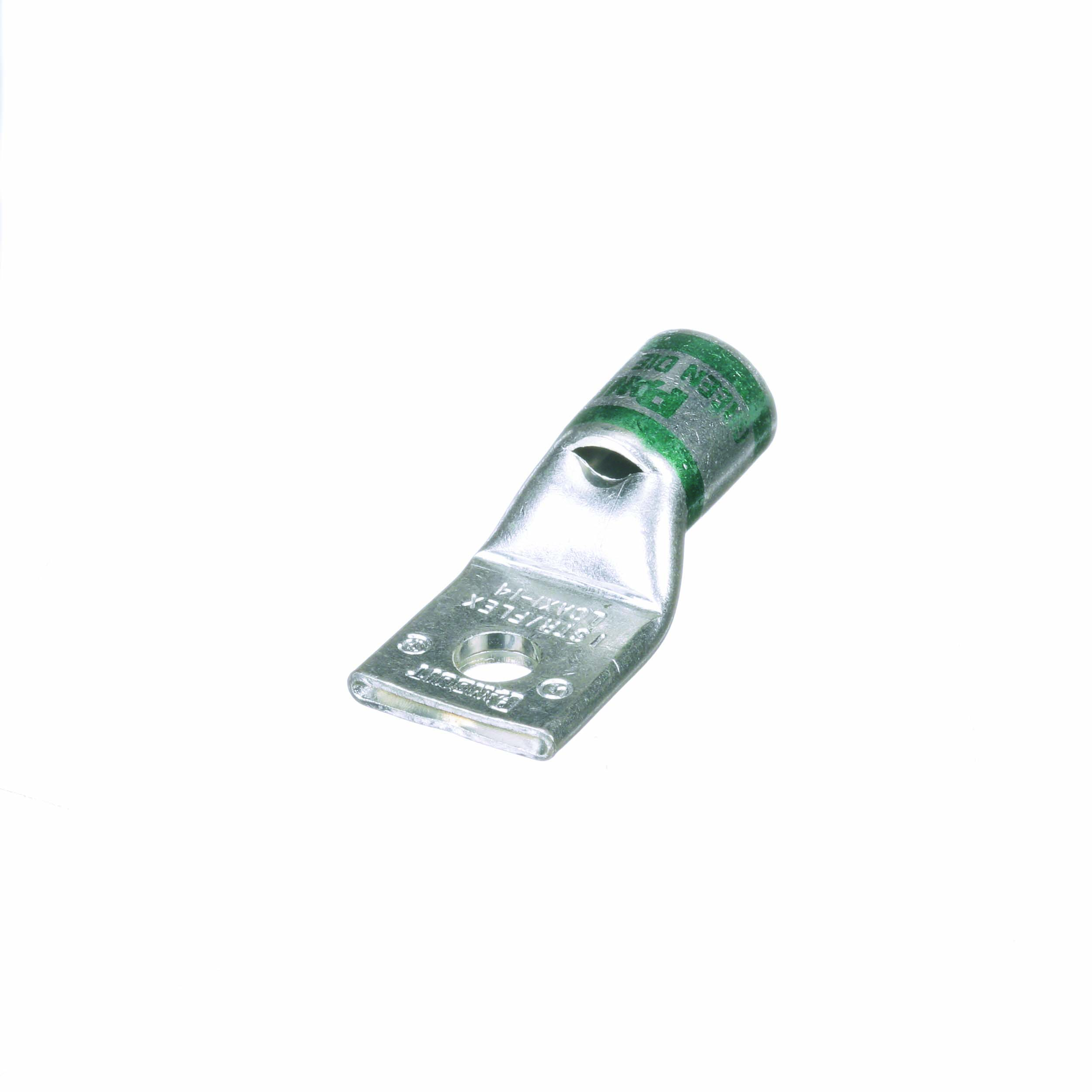

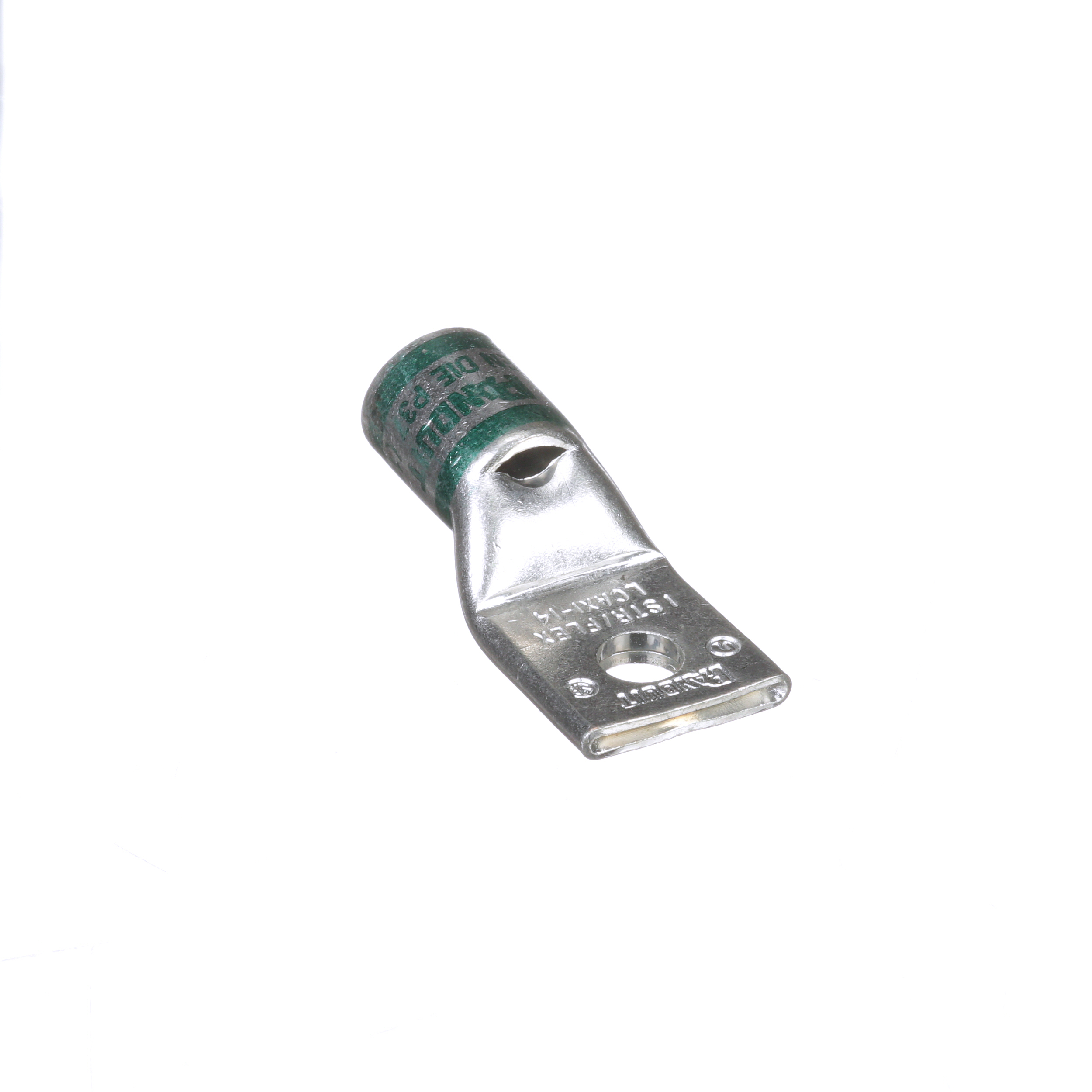

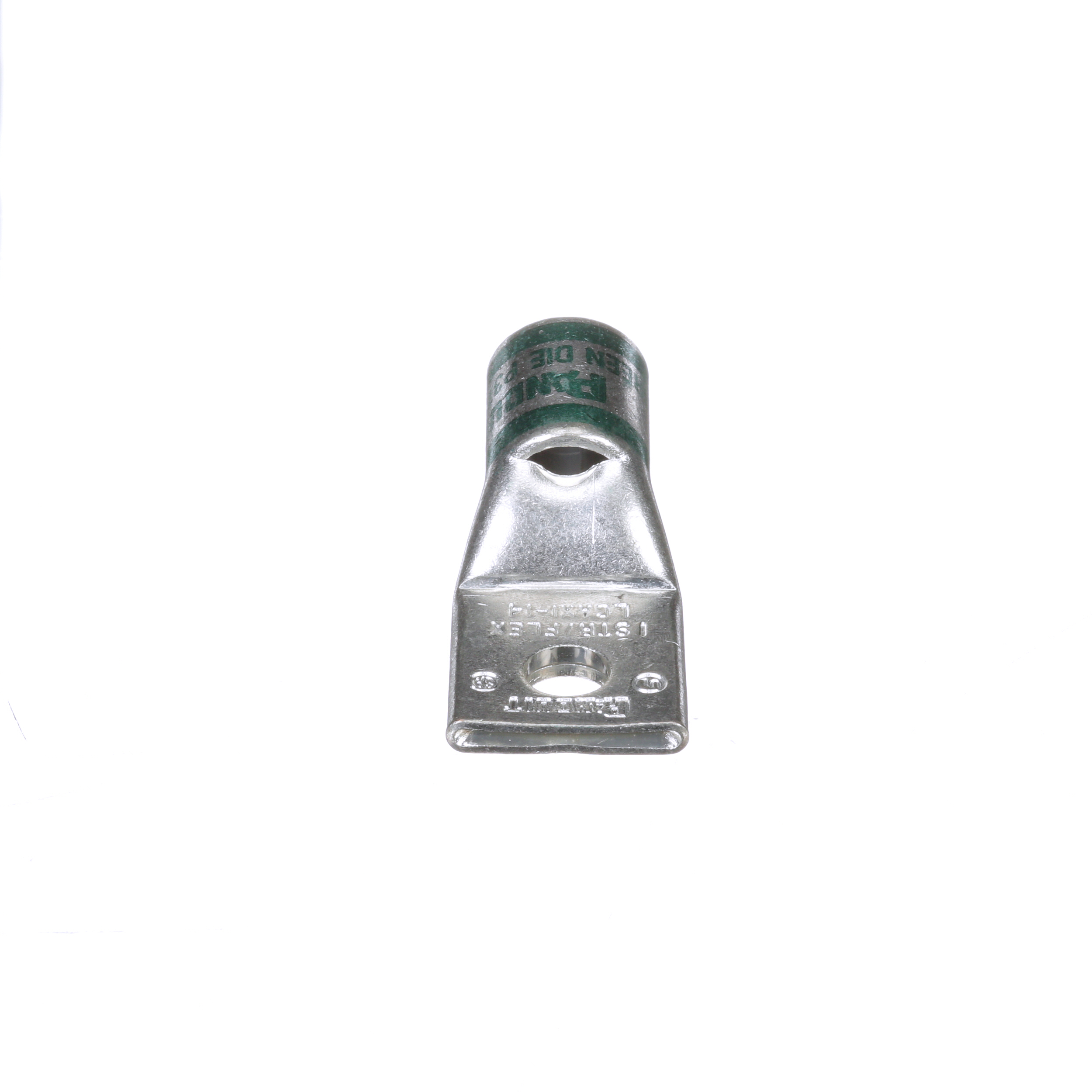

One-hole, flex lug, #1 AWG wire, 1/4 stud hole.

Technical Information

Angle
Straight
Barrel Length
0.66 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
#1 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
1/4 In.
Tongue Thickness
0.12 in
Tongue Type
Standard
Tongue Width
0.76 in
Type
Compression Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435098
Color
Green
GTIN
00074983435098
Product UPC
07498343509
UNSPSC
39121405

Dimensions

Overall Length
1.67 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
