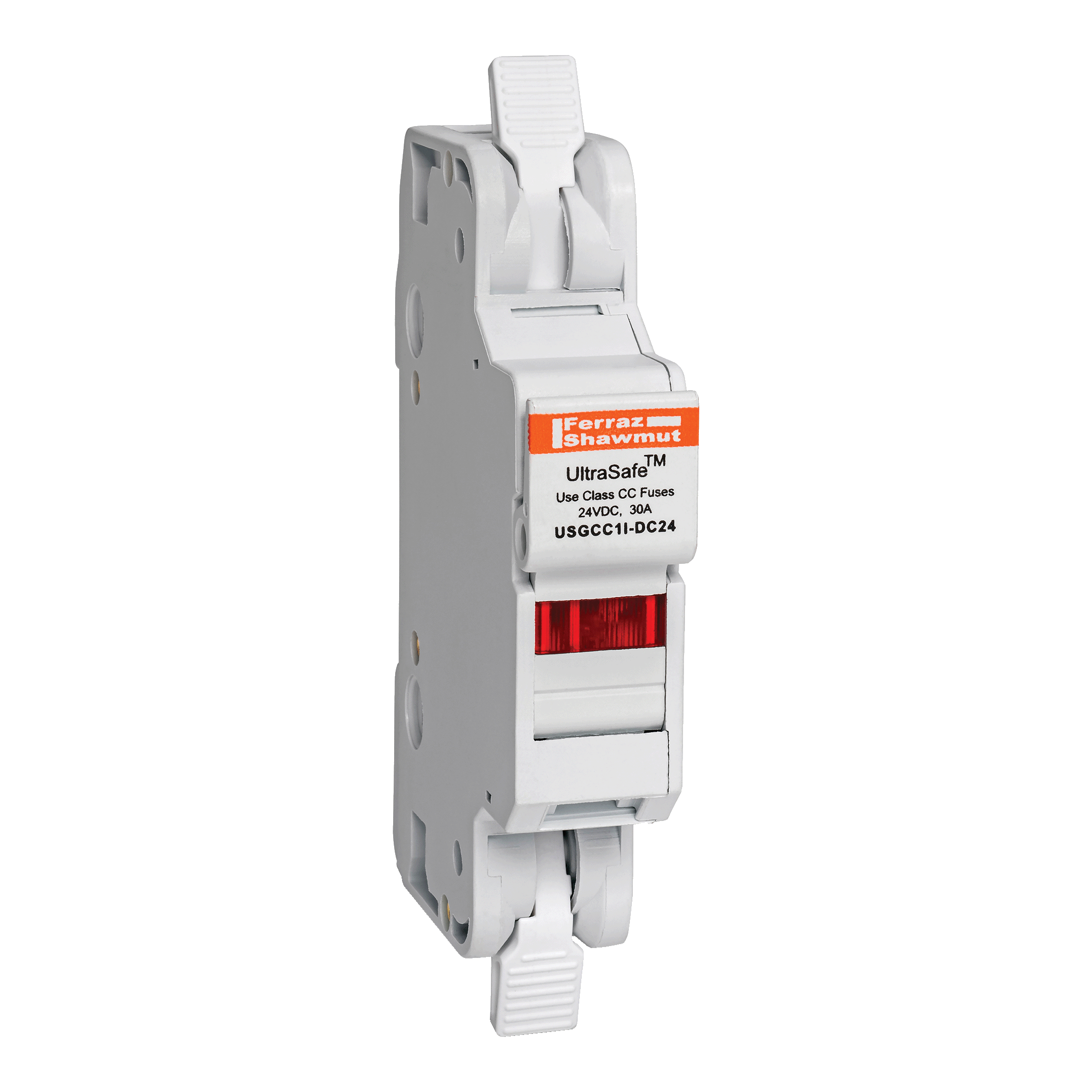

Product image for Fuse Holders V 30A Class CC 1-pole 24 VDC Indicator, cage clamp
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Fuse Holders V 30A Class CC 1-pole 24 VDC Indicator, cage clamp

Manufacturer: Ferraz Shawmut Mersen | Catalog # USGCC1I-DC24 | Electrozad South Part # 251333
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen...s USGCC & USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.

Technical Information

Amperage
30 A
Applications
All circuits (including branch-circuits) up to 600 volts (AC or DC) for motors, control circuits, transformers, etc.
Frequency
50/60 Hz
Fuse Class
Class CC
Fuse Interrupt Rating
30 A
Fuse Type
Class CC
Indicator
LED
Insulation Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
DIN Rail
Number of Poles
1
Rated Voltage DC
24 V
TC Connection
Spring Pressure
Type
UltraSafe

Packaging

Package Qty
12

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001438098
Class
CC
GTIN
00782001438098
Product UPC
78200143809
Weight
0.14 lb

Dimensions

Height
2.17 in
Length
4.13 in
Width
0.68 in

Certifications & Compliance

Country of Origin
China
