Panduct® MC25X37IG2 Narrow Slot Duct, Gray, PVC, 1.41"x0.97", PK2 | Electrozad South
Product image for Panduct® MC25X37IG2 Narrow Slot Duct, Gray, PVC, 1.41"x0.97", PK2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Panduct® MC25X37IG2 Narrow Slot Duct, Gray, PVC, 1.41"x0.97", PK2

Manufacturer: Panduit | Catalog # MC25X37IG2 | Electrozad South Part # 250263
$27.10 /ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

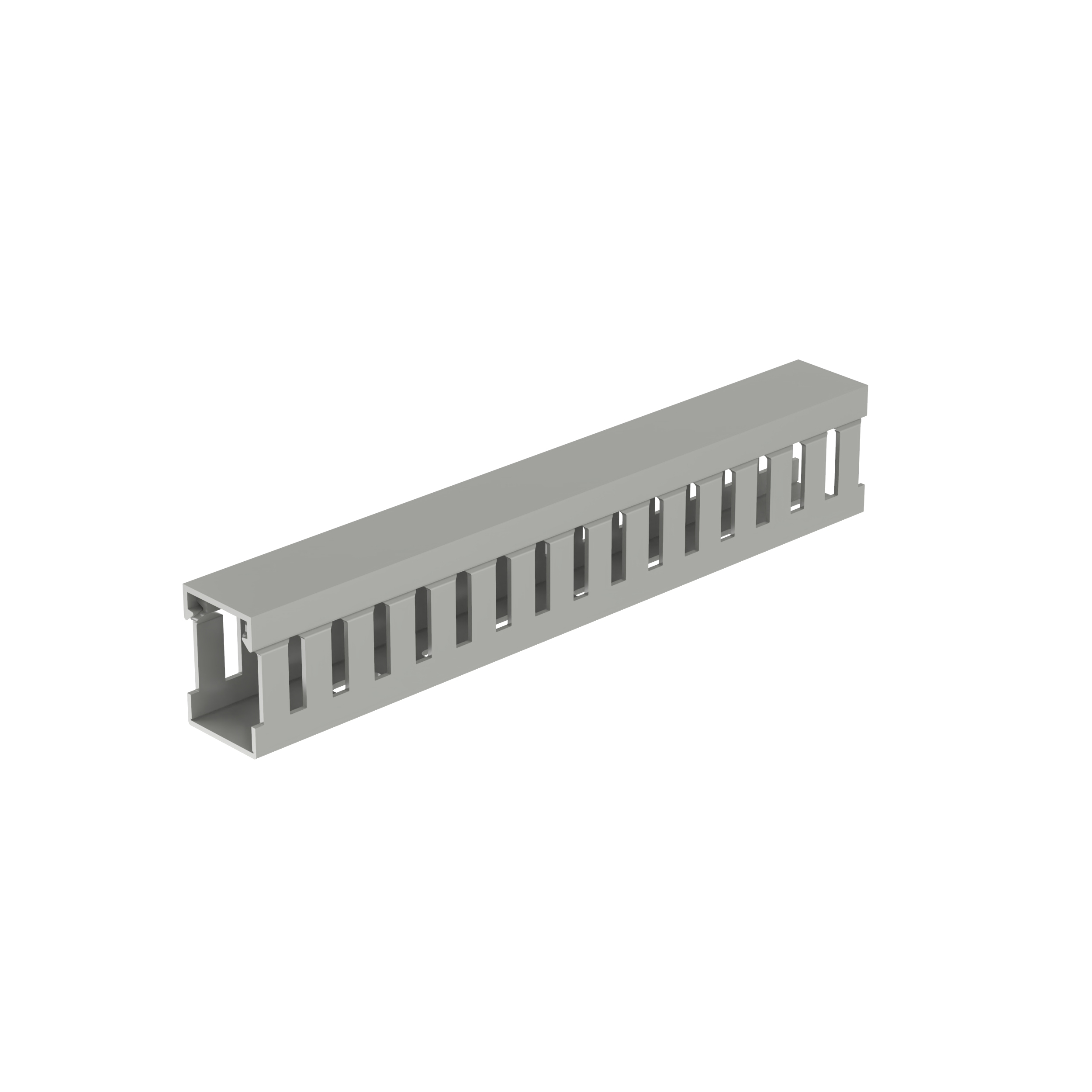

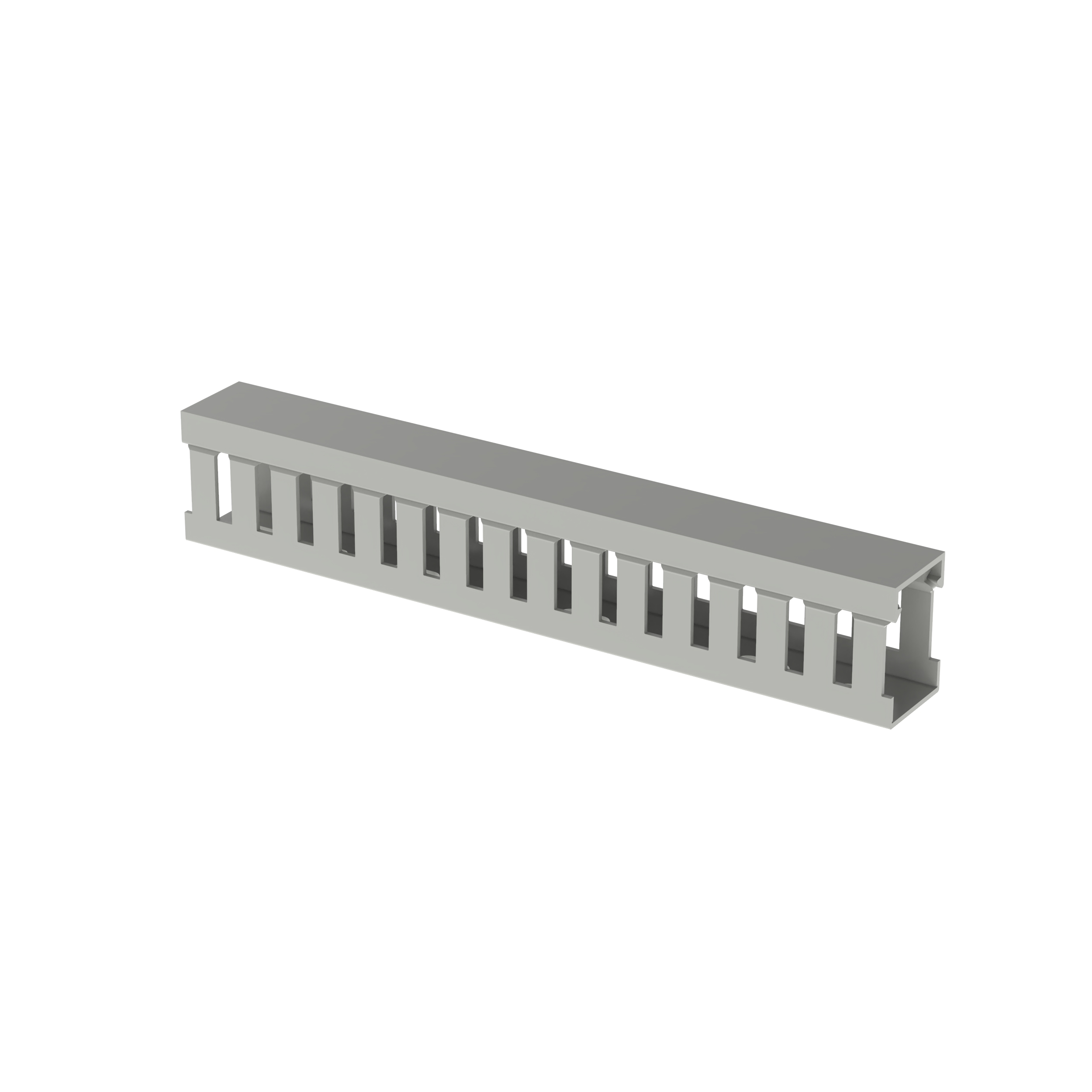

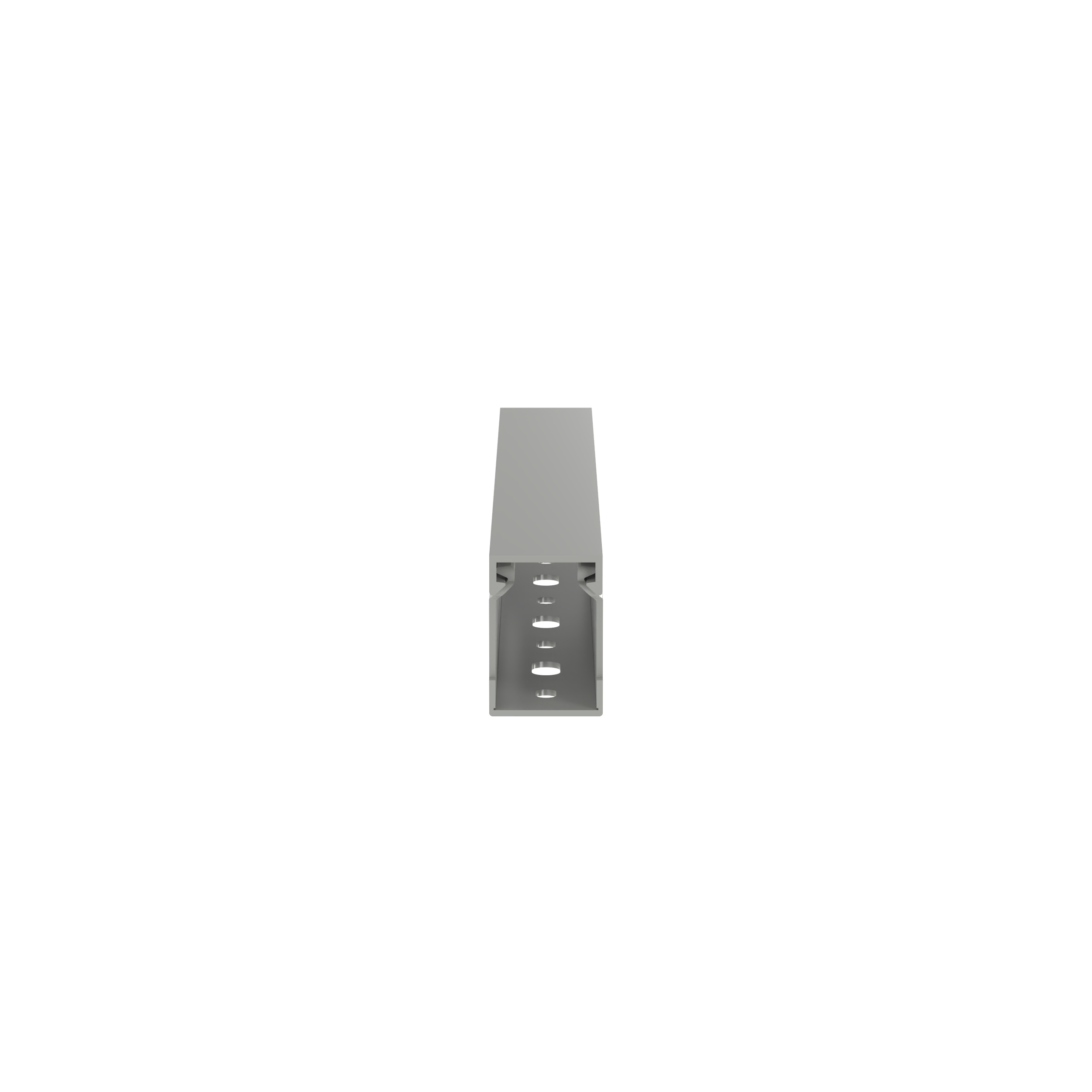

The MC25X37IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 35.8 mm (0.97" x 1.41"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
DIN Standard Mounting Holes
Size
0.97 x 1.41 IN
TC Connection
DIN Mounting Holes
Type
Wiring Duct Base With Cover

Packaging

Package Qty
2

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983742912
Color
Gray
Environment
Indoor
GTIN
00074983742912
Product UPC
07498374291

Dimensions

Height
1.41 in
Length
6.6 ft
Overall Length
6.5 ft
Width
0.97 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
