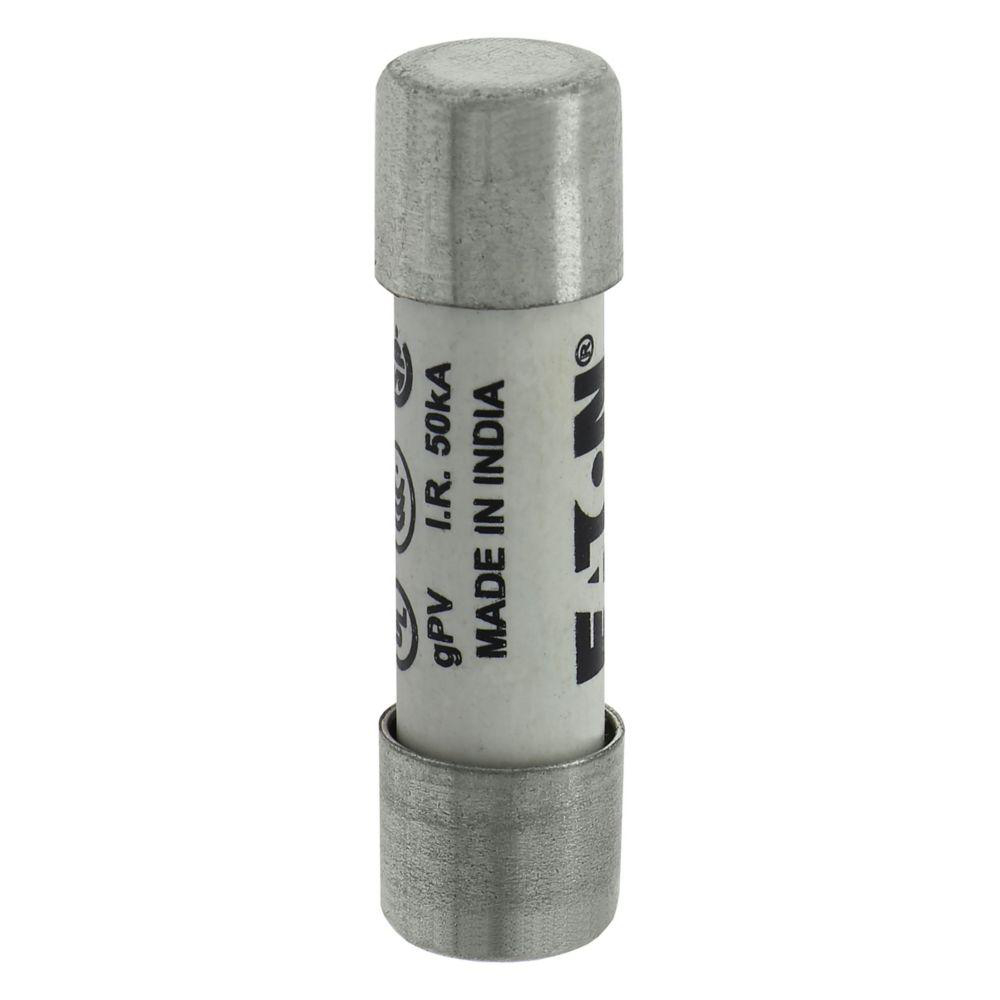

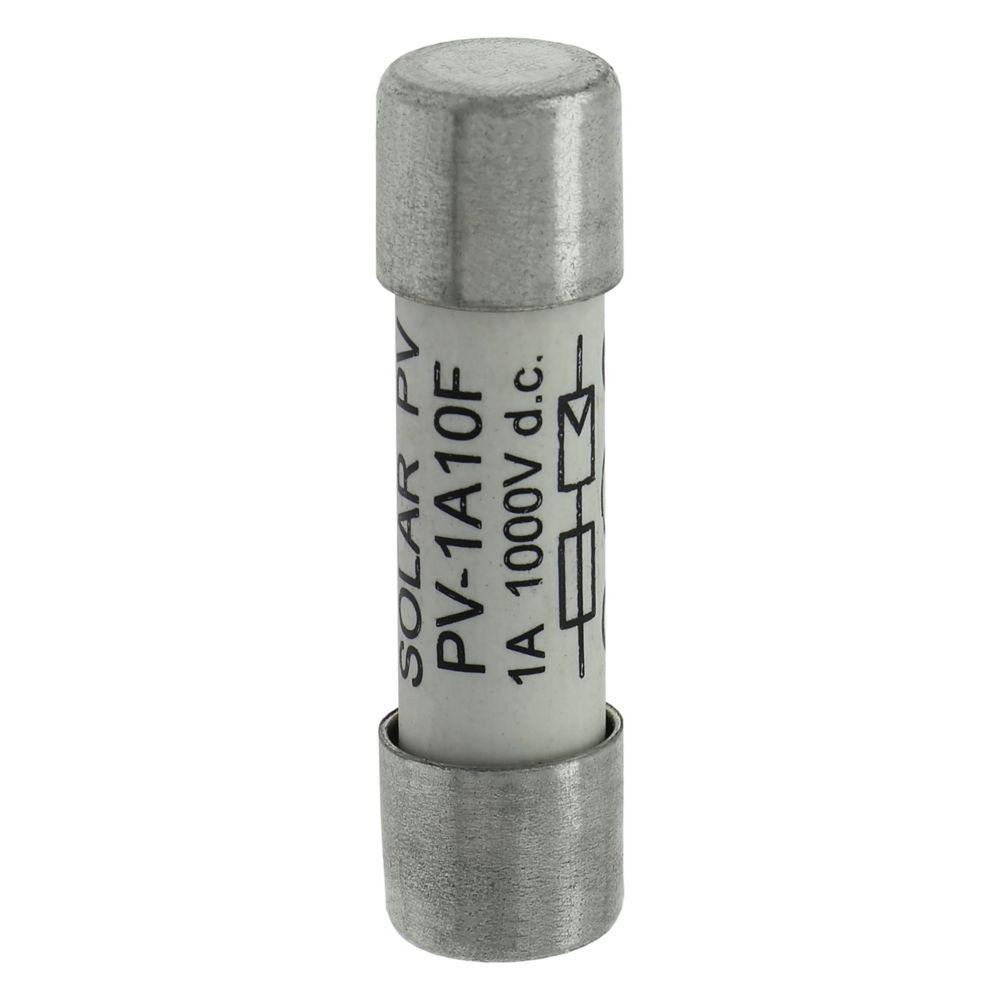

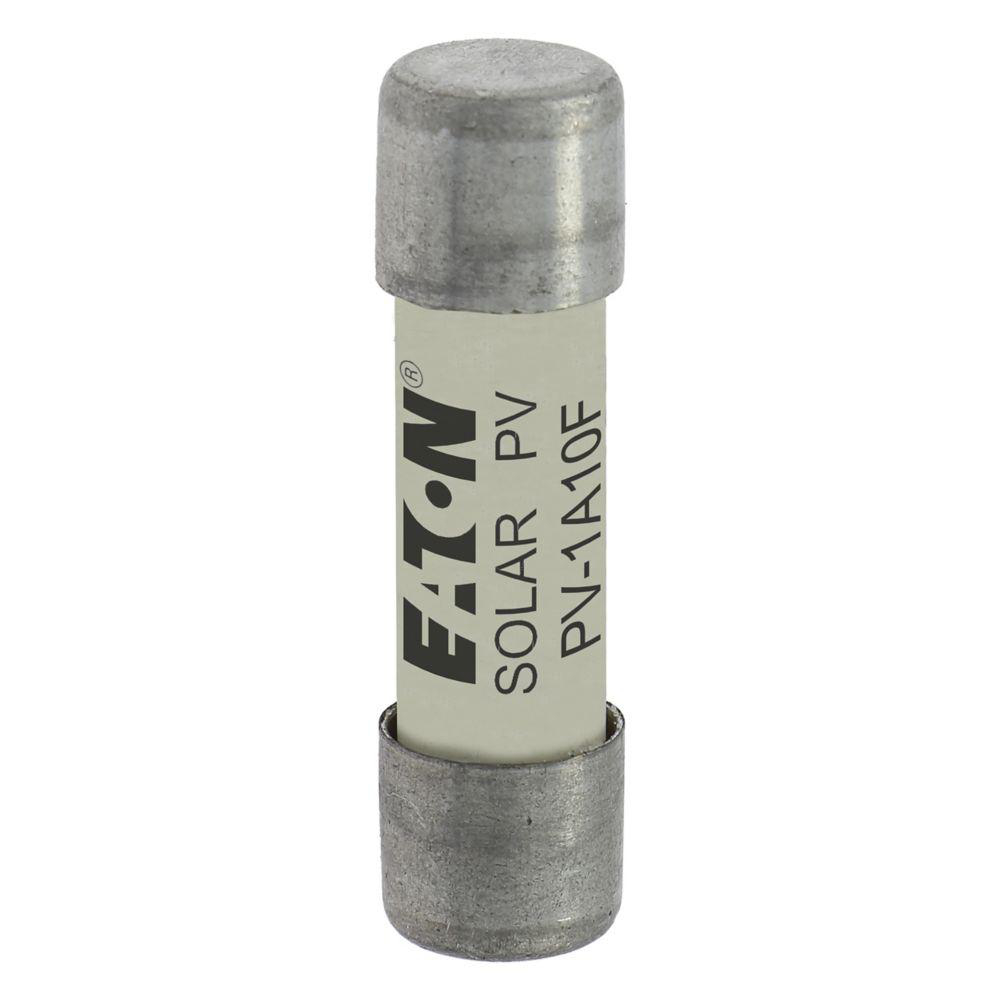

1AMP 1000V DC SOLAR FERRULE 10 X 38MM

Manufacturer: Bussman Cooper Fuses | Catalog # PV-1A10F | Electrozad South Part # 218779
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure H TECHNICAL DRAWING URL
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 1A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end

Technical Information

Amperage
1 A
Applications
Generation - Renewable Energy - Alternative EnergyGeneration - Renewable Energy - SolarGeneration - Renewable Energy - Storage Systems
Body Material
Ceramic
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
50 kA
Material
Ceramic
Size
13/32 In Diameter X 1-1/2 In Length
Standard
CE,CSA,IEC 60269,UL 2579
TC Connection
Ferrule end x ferrule end
Type
Fuse
Voltage
1000 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712243629
Class
Class GPV
Color
Yellow
GTIN
00051712243629
Product UPC
51712243629
Weight
9.7 g

Dimensions

Diameter
10 mm
Height
23 mm
Length
44 mm
