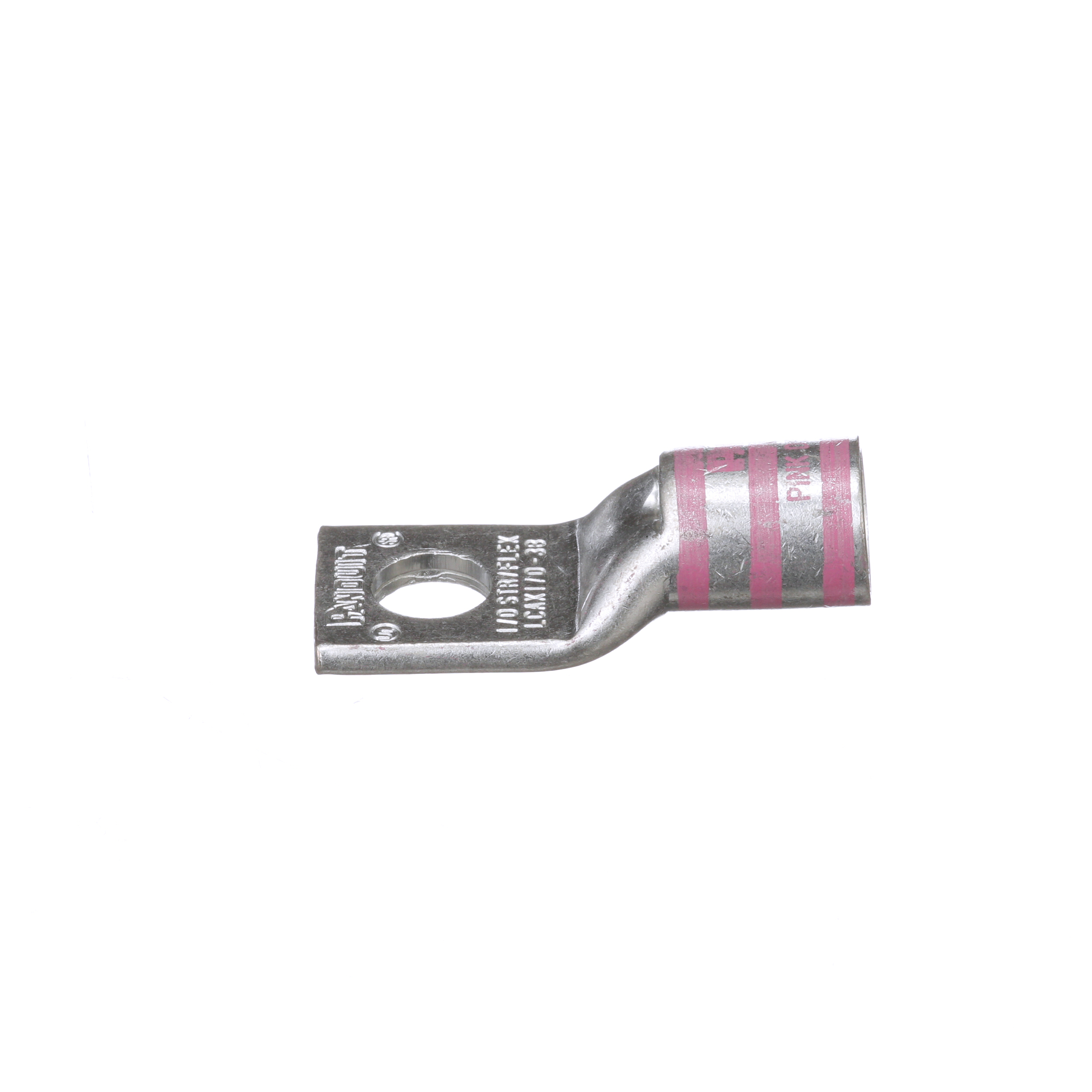

Image thumbnail 1

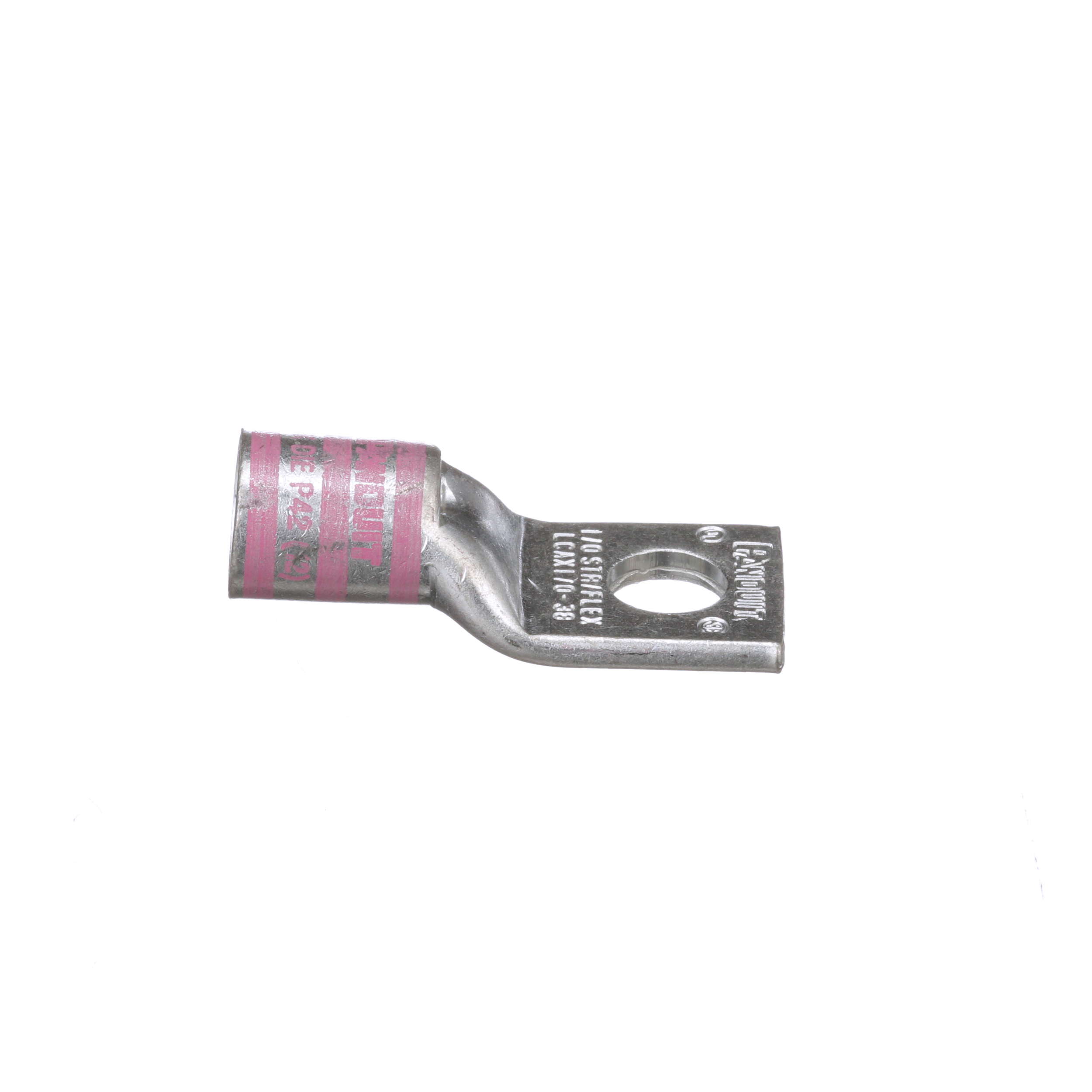

Image thumbnail 2
To:
CC:

Pan-Lug™ LCAX1/0-38-X Comp. Lug, 1/0, Flex, Tin Plt Copper, One 3/8" Stud, PK10

Manufacturer: Panduit | Catalog # LCAX1/0-38-X | Electrozad South Part # 218372
$1,265.04 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The LCAX1/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
0.72 in
Barrel Type
Standard Barrel With Inspection Window
Cable Size
AWG
Color Coding
Pink
Material
Copper
Number of Holes
1
Size
1/0 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
3/8 In.
Tongue Thickness
0.13 in
Tongue Type
Standard
Tongue Width
0.85 in
Type
Compression Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435272
Color
Pink
Finish
Tin-Plated
GTIN
00074983435272
Product UPC
07498343527

Dimensions

Outer Diameter
0.58 in
Overall Length
1.89 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
