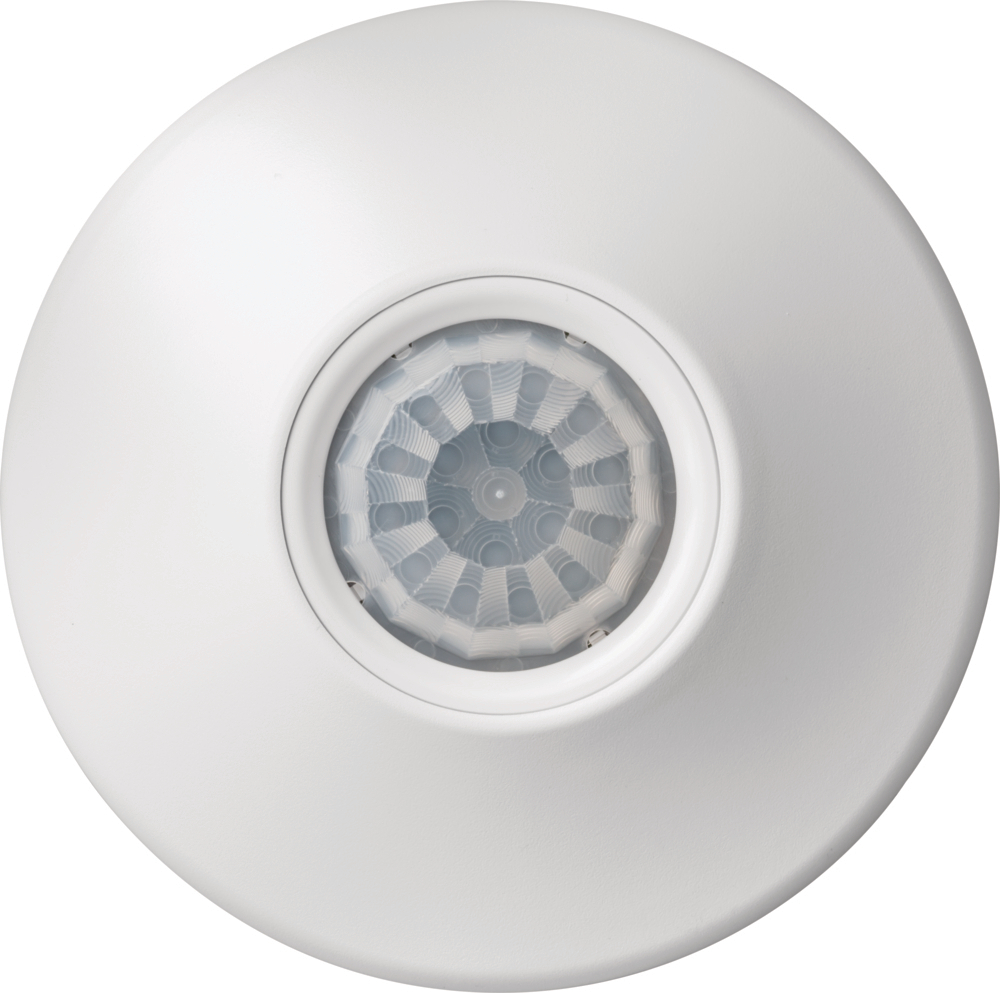

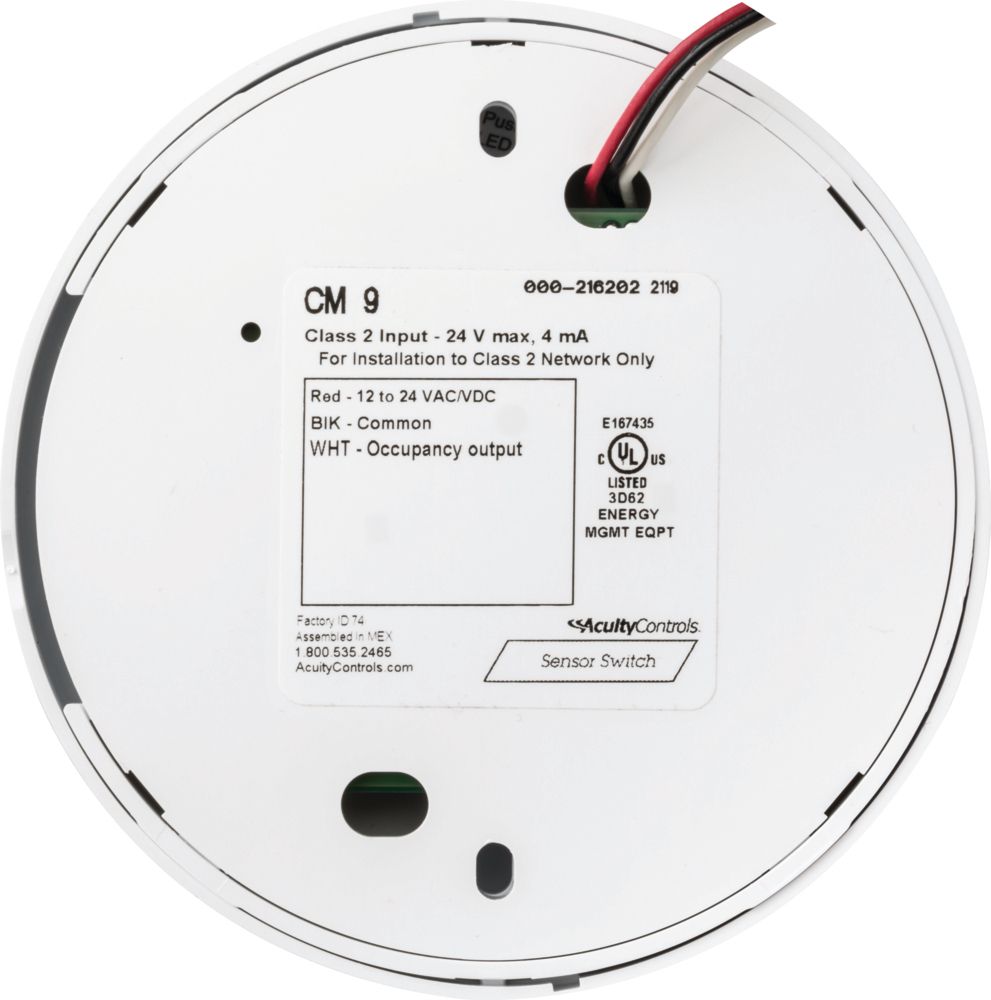

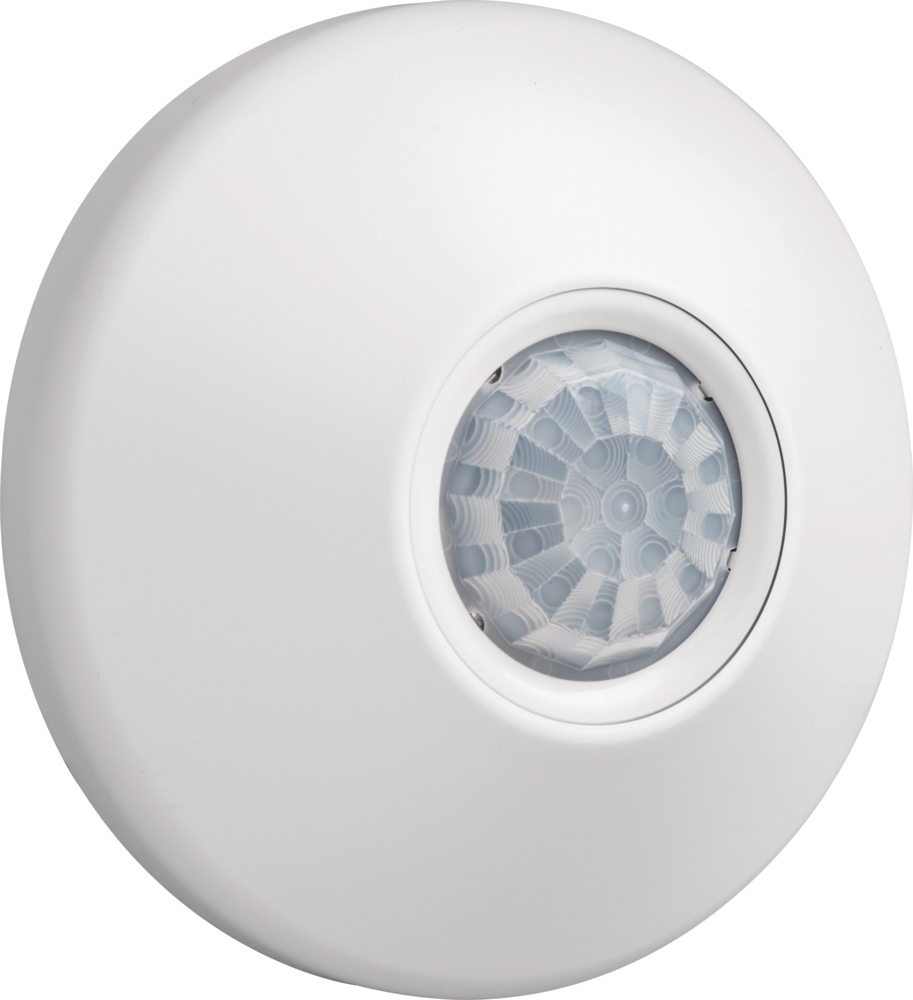

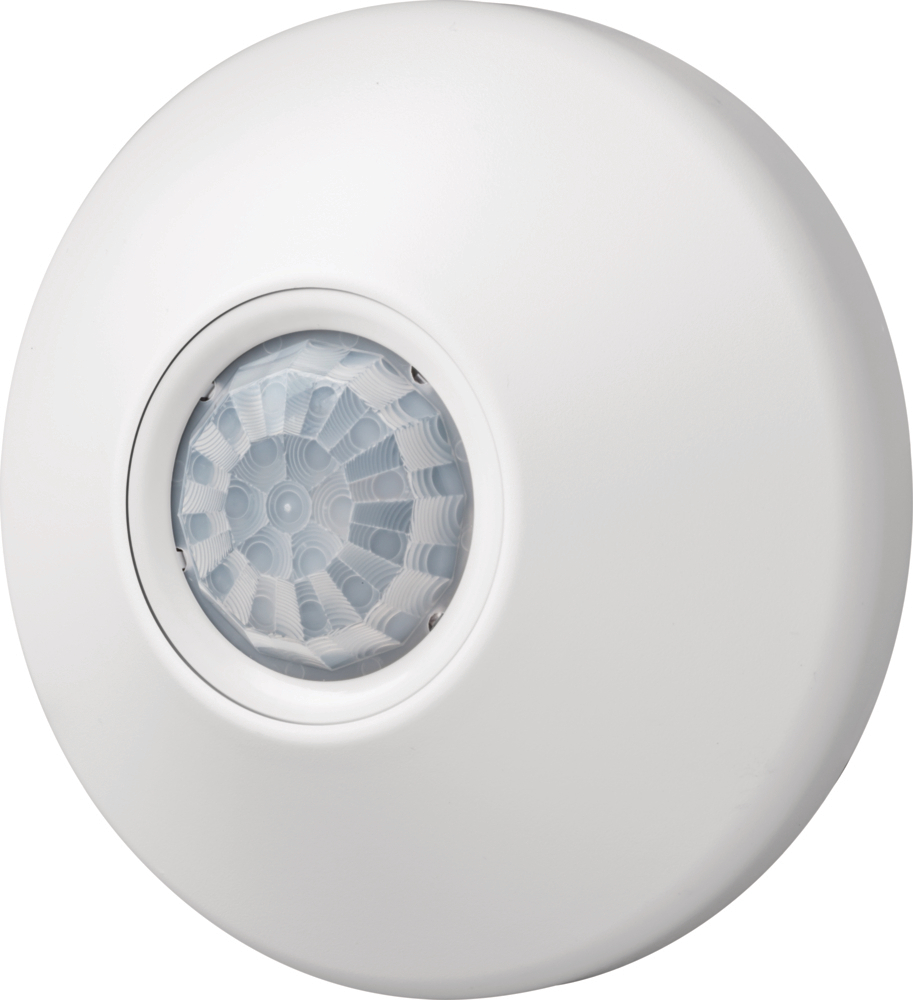

CEILING MOUNT SENSOR, PASSIVE DUAL TECHN

Manufacturer: Lithonia Lighting | Catalog # CM PDT 9 | Electrozad South Part # 202676
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways,Sports And Recreation,Transportation,Warehouses
Lens Material
Plastic
Material
Plastic
Mounting Type
Surface
Sensing Range
360 degrees
Type
Sensor

Manufacturer Information

Brand
Sensor Switch Motion Controls

General Product Info

12-Digit UPC
745975808229
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss,Matte
GTIN
00745975808229
Product UPC
74597580822
Weight
1 lb

Dimensions

Height
4.500 in
Length
4.500 in
Warranty Length
5 yr
Width
2.500 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • 5-Year Limited Warranty
  • 360º conical shaped pattern provides 12 ft radial coverage when mounted to standard 9 ft ceiling; 8 to 15 ft mounting heights provide 10 to 20 ft radial coverage; up to 14 sensors per power pack
  • Best choice for small motion (e.g. hand movements) detection
  • Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the Sensor Switch Mobile App through camera flash programming
  • For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which adds Microphonics⢠detection to passive infrared (PIR) detection
  • 4.55âW x 1.55âD (116mm x 40mm)
  • Energy Management Equipment, UL916 (E167435), RoHS Compliant
