H4X4BL6 Hinged Cover Wide Slot Duct, Black, PVC, 4"x 4"

Manufacturer: Panduit | Catalog # H4X4BL6 | Electrozad South Part # 11787
$18.19 /ft
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

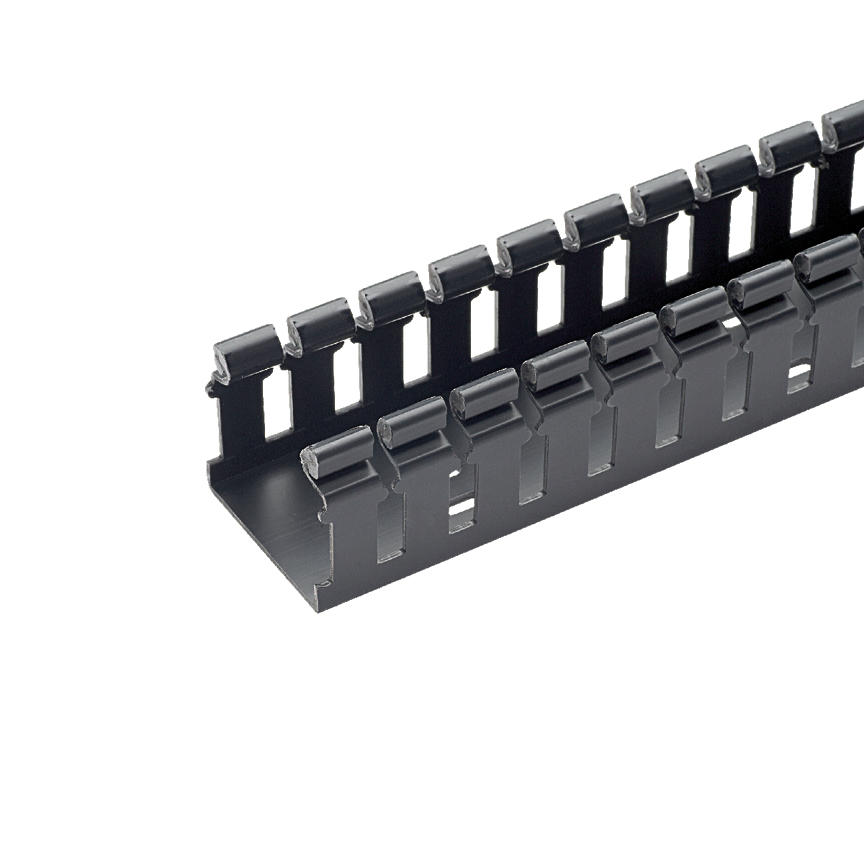

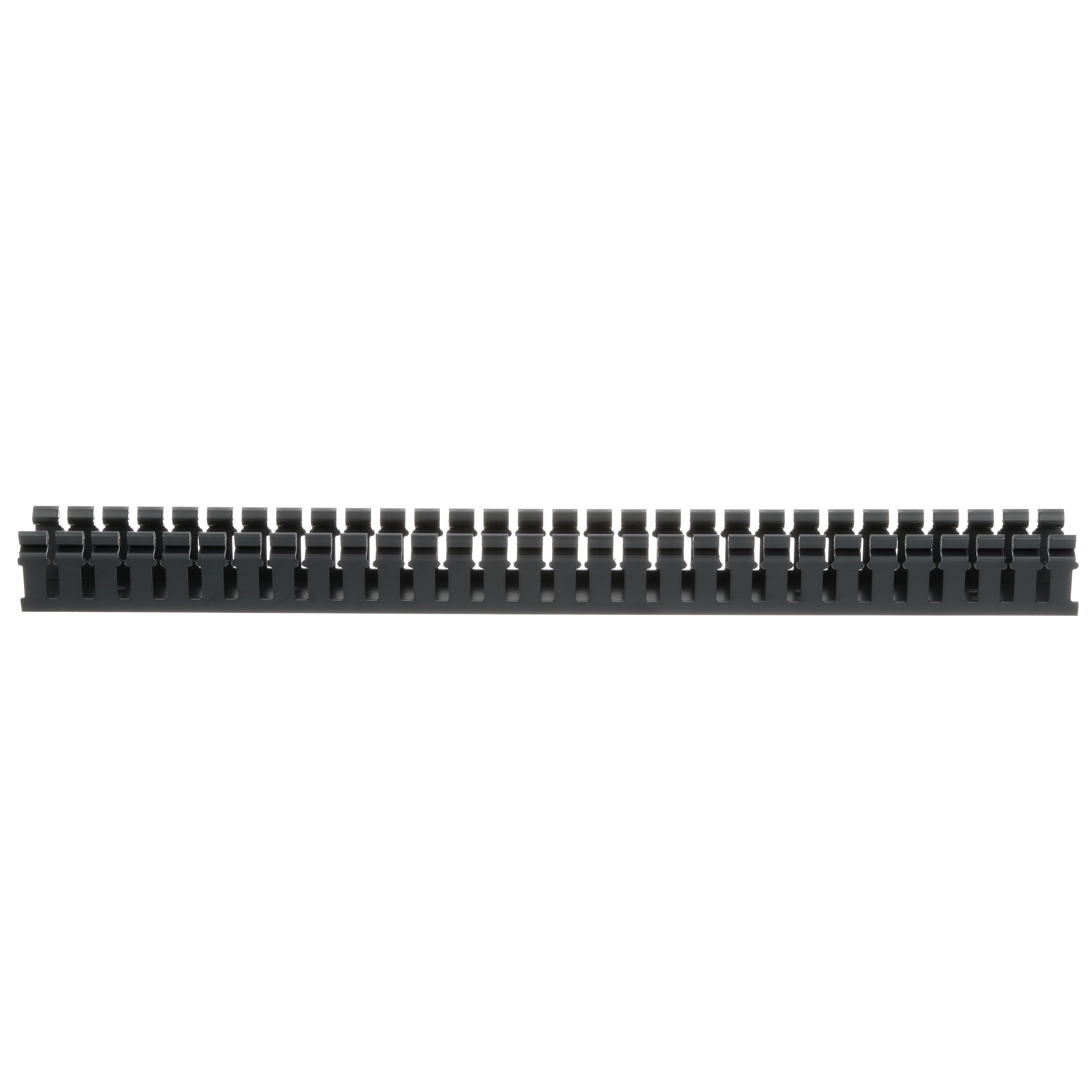

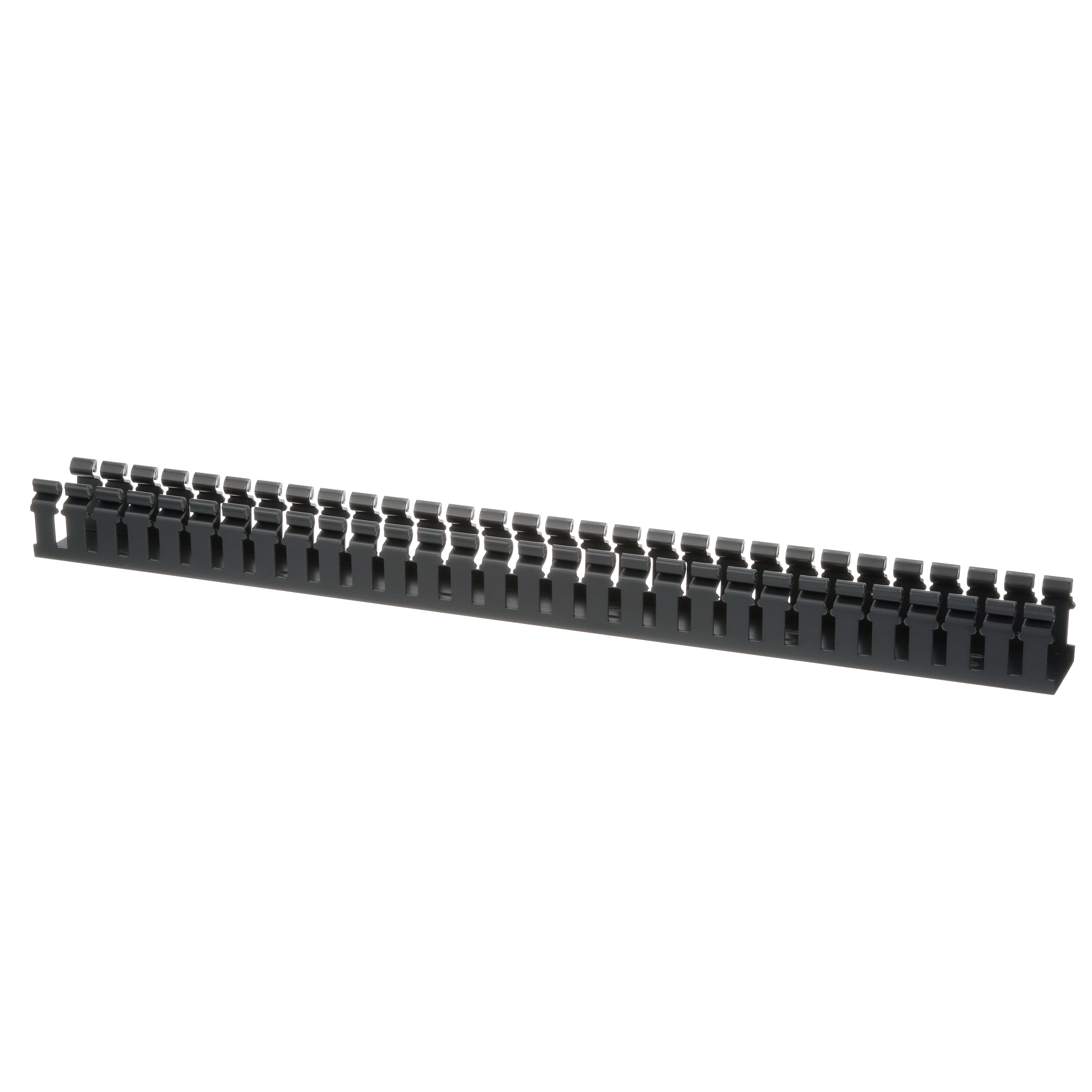

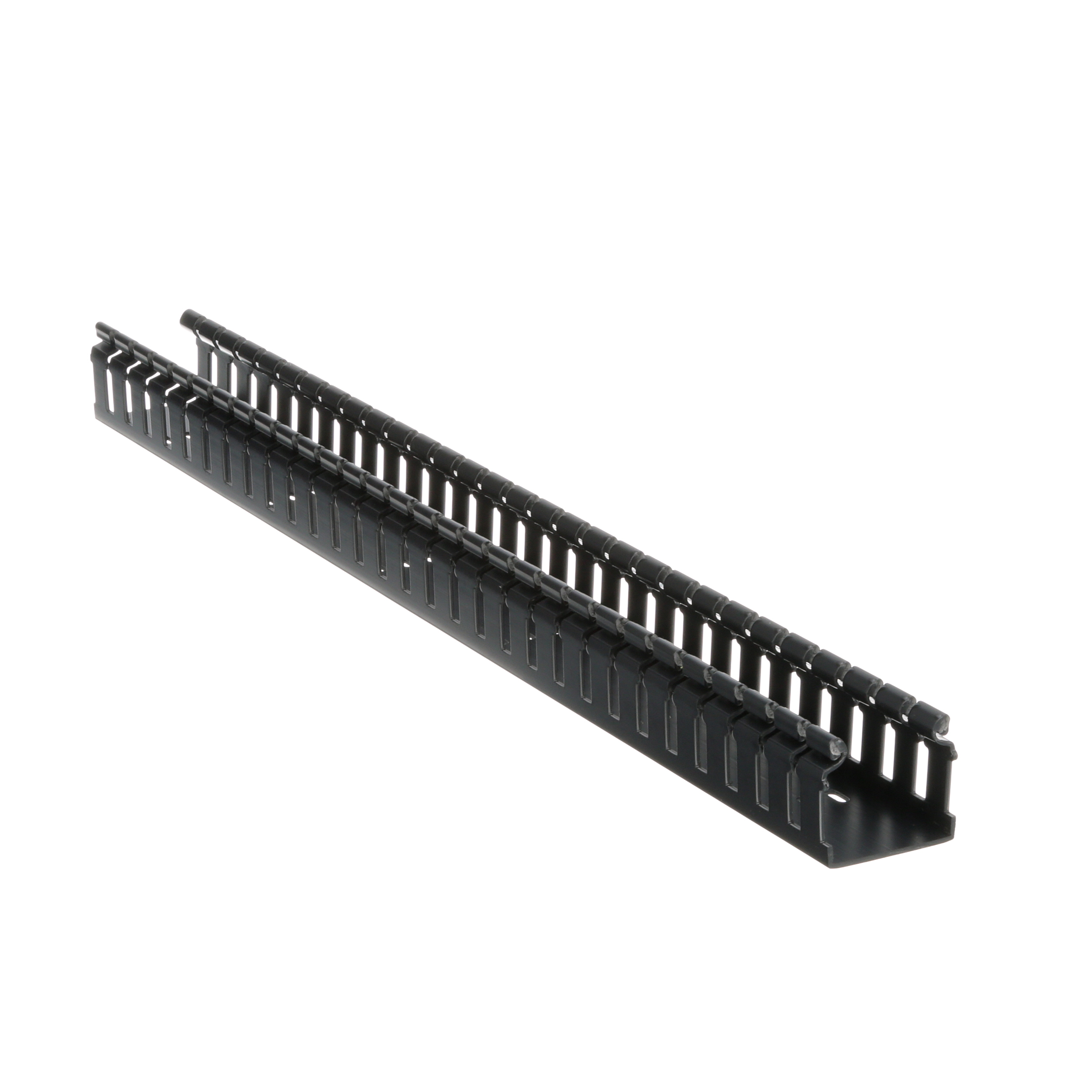

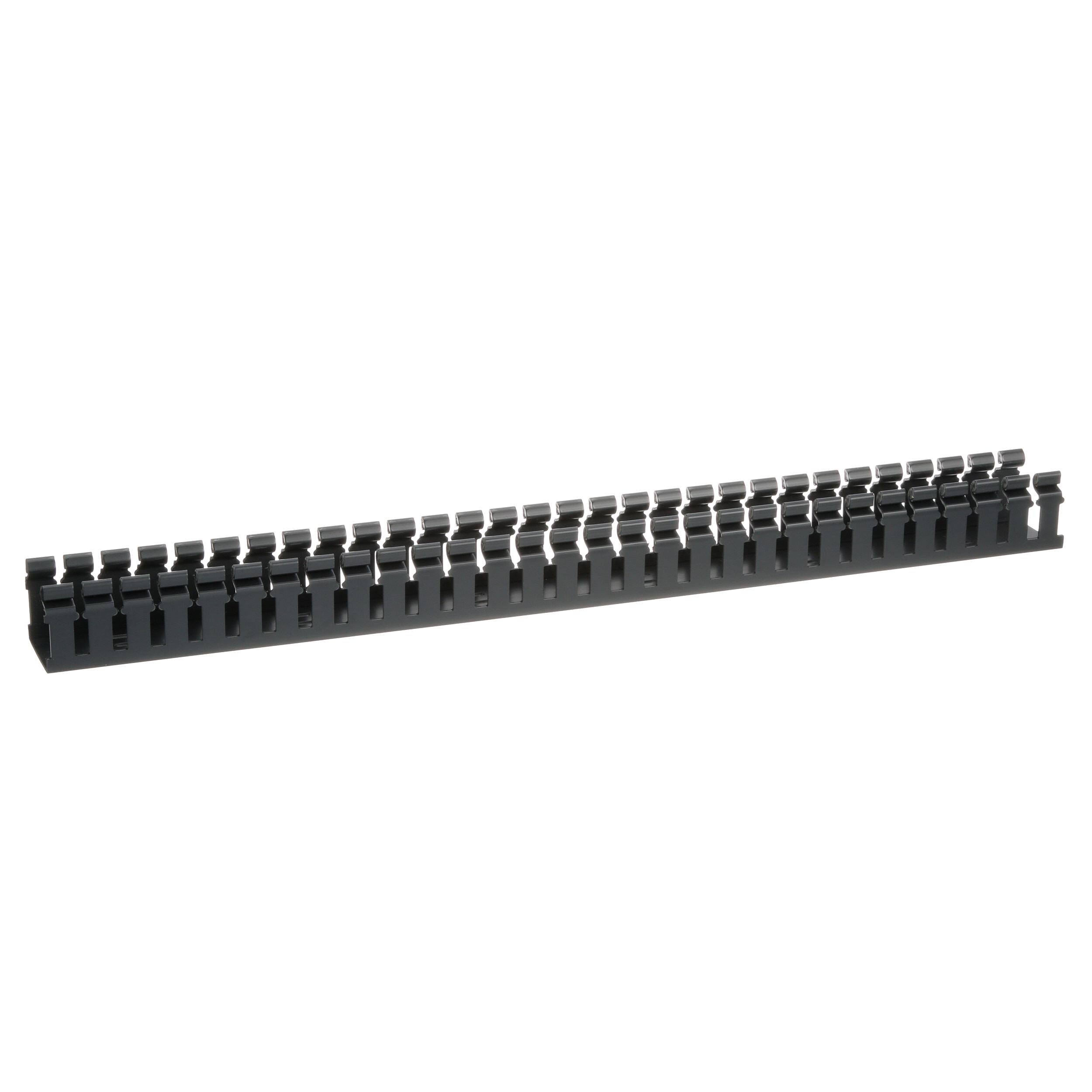

The H4X4BL6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-Free PVC. 4" x 4.25" (101.6mm x 108.0mm) and 6' (1.83m) long. Cover sold separately. Black.

Technical Information

Applications
Hinged Cover Wide Slot Wiring Duct
Material
PVC
Mounting Type
Mounting Holes
Size
4.00 x 4.00 IN
TC Connection
Mounting Holes
Type
Base Wiring Duct

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983854226
Color
Black
GTIN
00074983854226
Product UPC
07498385422
UNSPSC
39131712

Dimensions

Height
4.1 in
Length
NA In.
Overall Length
6 ft
Thickness
0.11 IN
Width
4.25 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
